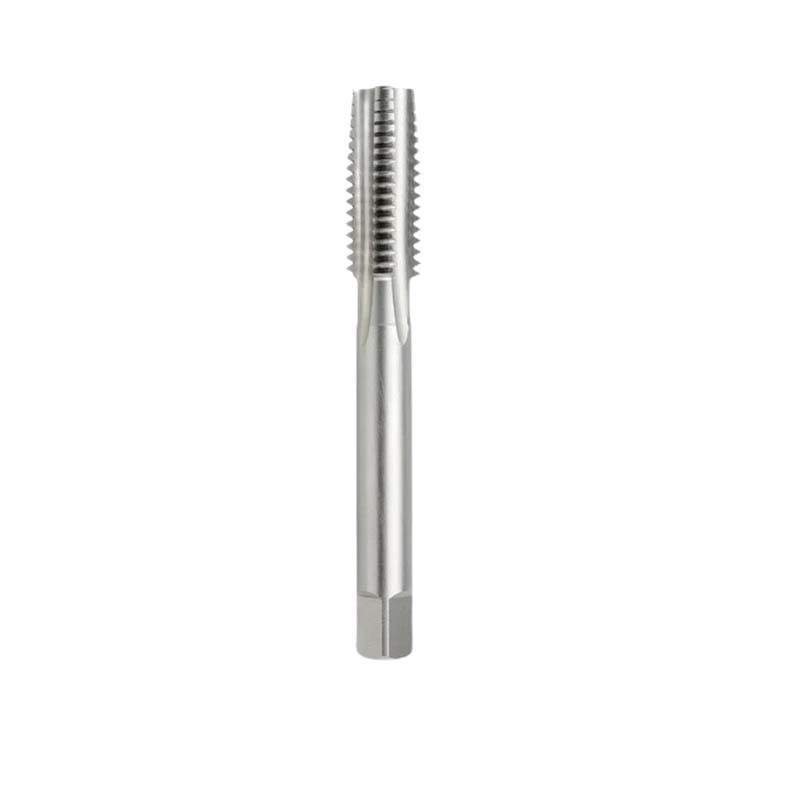

Bordo 3 x 0.5mm Left Hand MC Intermediate Hand and Machine Tap
Available
The Bordo Left Hand MC Intermediate HSS Hand and Machine Tap is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Diameter (mm) | 2.5 |
|---|---|
| Diameter (mm) | 3 |
| Pitch (mm) | 0.5 |
| Tap Lead | Intermediate |
| Overall Length (OL) mm | 48 |
Product Features
- HSS Metric Coarse LEFT HAND Intermediate Hand and Machine Tap
- Metric Coarse angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand MC Intermediate HSS Hand and Machine Tap: 3
SKU: A0196152 | Model: 3080-3.00I
This is the 3mm diameter option of the Bordo Left Hand MC Intermediate HSS Hand and Machine Tap. Key details for this option: drill diameter 2.5mm, pitch 0.5mm.
Bordo Left Hand MC Intermediate HSS Hand and Machine Tap
HSS Metric Coarse LEFT HAND Intermediate Hand and Machine Tap.
Metric Coarse angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About Intermediate Taps
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
About Metric Coarse & Fine
Angle of the thread is 60°.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of the external thread and pitch are specified by a simple numerical value (most commonly measured in millimeters).
