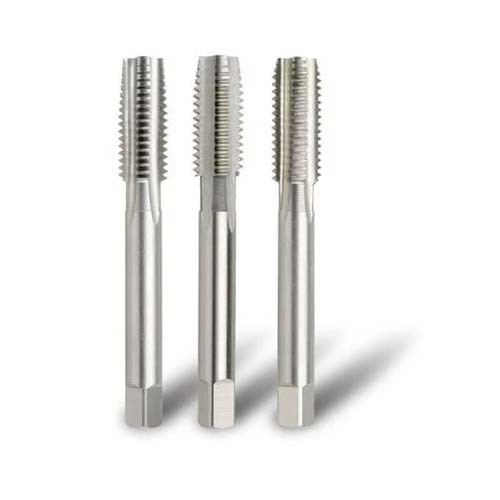

Bordo 10 x 1mm Left Hand Metric Fine HSS Tap Set
Available
The Bordo Left Hand Metric Fine HSS Tap Set (3082) is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Pitch Size (mm) | 0.75 |
|---|---|
| Drill Size (mm) | 7.2 |
| Diameter (mm) | 8 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 69 |
Product Features
- HSS Metric Fine LEFT HAND and Machine Tap Set
- Metric Fine angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand Metric Fine HSS Tap Set (3082): 10 / 1
SKU: A0206130 | Model: 3082-10.00TS
Diameter (mm) 10, Pitch 1. Bordo Left Hand Metric Fine HSS Tap Set (3082)
Left Hand MF HSS Tap Set.
HSS Metric Fine LEFT HAND Hand and Machine Tap Set.
Metric Fine angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
