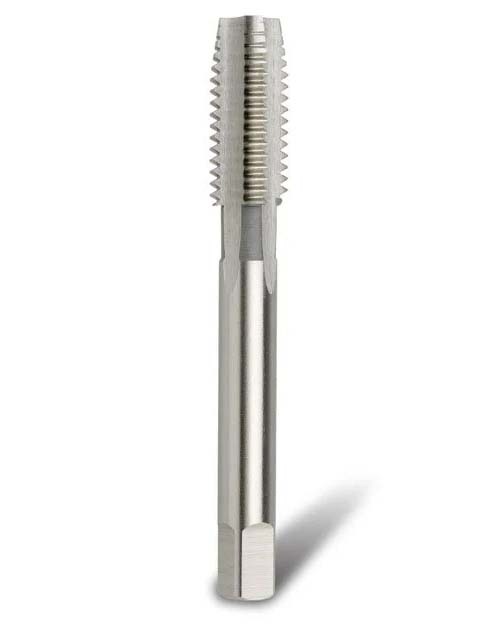

Bordo 10 x 1mm Left Hand Metric Fine Intermediate Tap
Available
The Bordo Left Hand Metric Fine Intermediate HSS Tap (3082) is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Pitch Size (mm) | 0.75 |
|---|---|
| Drill Size (mm) | 7.2 |
| Diameter (mm) | 8 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 69 |
Product Features
- HSS Metric Fine LEFT HAND Intermediate Hand and Machine Tap
- Metric Fine angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand Metric Fine Intermediate HSS Tap (3082): 10 / 1
SKU: A0206108 | Model: 3082-10.00I
Diameter (mm) 10, Pitch 1. Bordo Left Hand Metric Fine Intermediate HSS Tap (3082)
Left Hand MF Intermediate HSS Tap.
HSS Metric Fine LEFT HAND Intermediate Hand and Machine Tap.
Metric Fine angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
