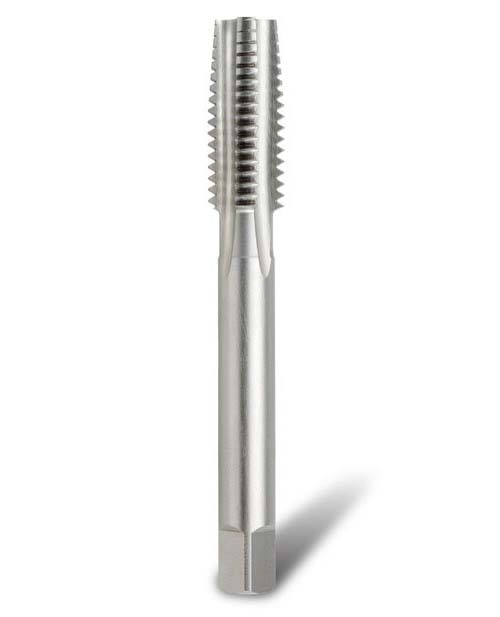

Bordo 8 x 0.75mm Left Hand Metric Fine Taper Tap
Available
The Bordo Left Hand MF Taper HSS Tap (3082) is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Pitch Size (mm) | 0.75 |
|---|---|
| Drill Size (mm) | 7.2 |
| Diameter (mm) | 8 |
| Flute Type | Straight |
| Overall Length (OAL) mm | 69 |
Product Features
- HSS Metric Fine LEFT HAND Taper Hand and Machine Tap
- Metric Fine angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Left Hand MF Taper HSS Tap (3082): 8 / 0.75
SKU: A0206096 | Model: 3082-8.00T
This is the 8mm diameter, pitch 0.75mm option of the Bordo Left Hand MF Taper HSS Tap (3082). Key details for this option: flute type Straight, pitch size 0.75mm, drill size 7.2mm.
Bordo Left Hand MF Taper HSS Tap (3082)
Left Hand MF Taper HSS Tap.
HSS Metric Fine LEFT HAND Taper Hand and Machine Tap.
Metric Fine angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
