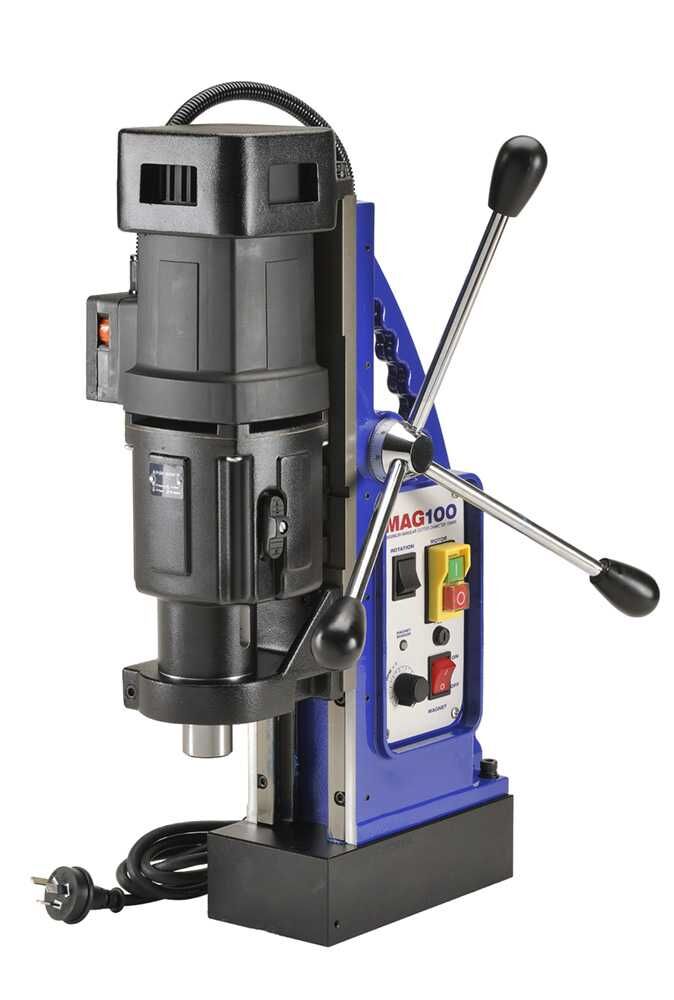

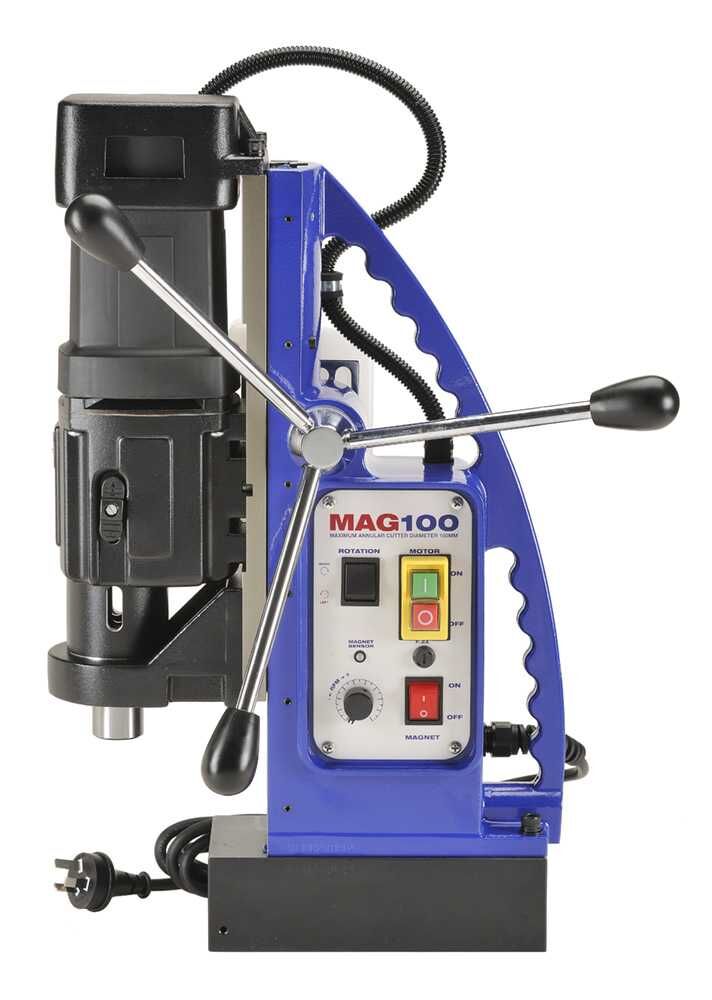

Bordo MAG100 Magnetic Base Drill 100mm

Bordo Magnetic Base Drill 7400-MAG100

• Complies with The Australian Standard AS/NZS 4417.1 and AS/NZS 4417 for electrical safety.
• In-scope electrical equipment must not be sold unless the item is marked with the RCM in compliance with AS/NZS 4417.1 & 2 and the EESS.
• The heavyweight champion in our magnetic drilling range.
• The MAG100 powerhouse drills perfect holes up to 100mm in record time.
• Four speed gearbox.
• Super strong powerful magnet.
• High efficiency motor.
• Threading capable.

Technical Data:

• Annular Cutter Dia. (mm): 12-100
• Twist Drill Dia. (mm): 1-31.75
• Threading: M3-M30
• Countersink Dia. (mm): 10-105
• Length (mm): 340
• Width (mm): 310
• Height (mm): 510-710
• Stroke (mm): 260
• Weight kg: 28
• Magnet Force (kg): 2500
• Motor Power (W): 1800
• Speed - loaded (RPM): 85 / 152 / 270 / 480
• Spindle (Weldon) (mm): 19.05
• Spindle MTS #: 3
• Gearbox Speeds: 4
• Power Source: 220-240V 50/60Hz
