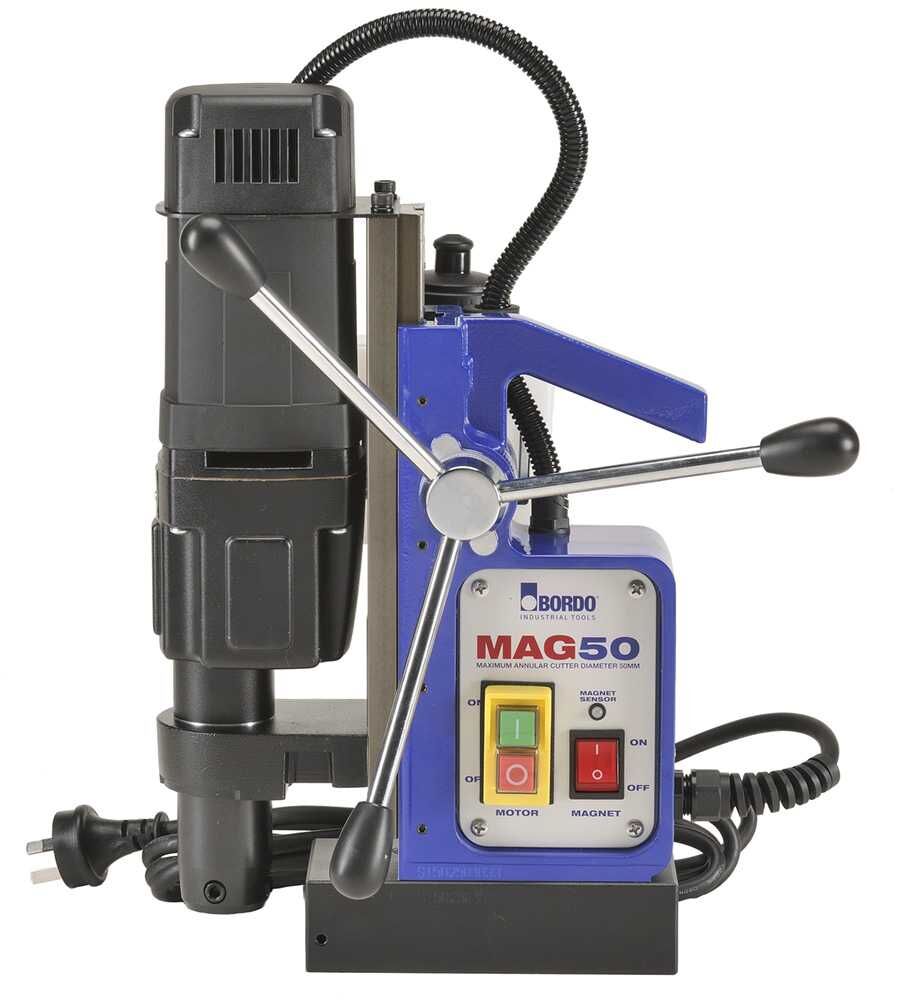

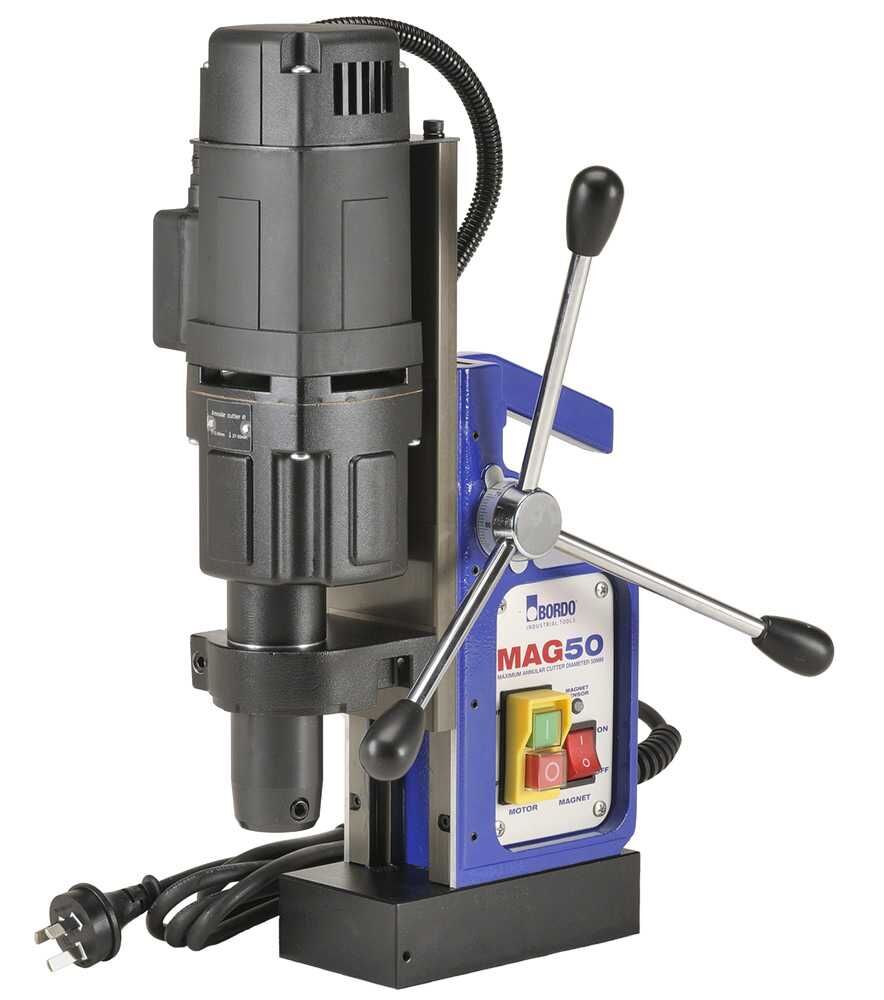

Bordo MAG50 Magnetic Base Drill 50mm

Bordo Magnetic Base Drill 7400-MAG50

• Complies with The Australian Standard AS/NZS 4417.1 and AS/NZS 4417 for electrical safety.
• In-scope electrical equipment must not be sold unless the item is marked with the RCM in compliance with AS/NZS 4417.1 & 2 and the EESS.
• The MAG50 gives you the flexibility to drill and countersink up to 50mm.
• The wider range of cutter diameters and extra stroke means this machine sits in the production sweet spot.
• Wider reach, bigger diameter holes.
• Powerful magnet.
• Two speed gearbox for heavy duty cutting.

Technical Data:

• Annular Cutter Dia. (mm): 12-50
• Twist Drill Dia. (mm): 1-20
• Threading: -
• Countersink Dia. (mm): 10-55
• Length (mm): 320
• Width (mm): 200
• Height (mm): 378-533
• Stroke (mm): 155
• Weight kg: 13.5
• Magnet Force (kg): 1600
• Motor Power (W): 1200
• Speed - loaded (RPM): 235/425
• Spindle (Weldon) (mm): 19.05
• Spindle MTS #: -
• Gearbox Speeds: 2
• Power Source: 220-240V 50/60Hz
