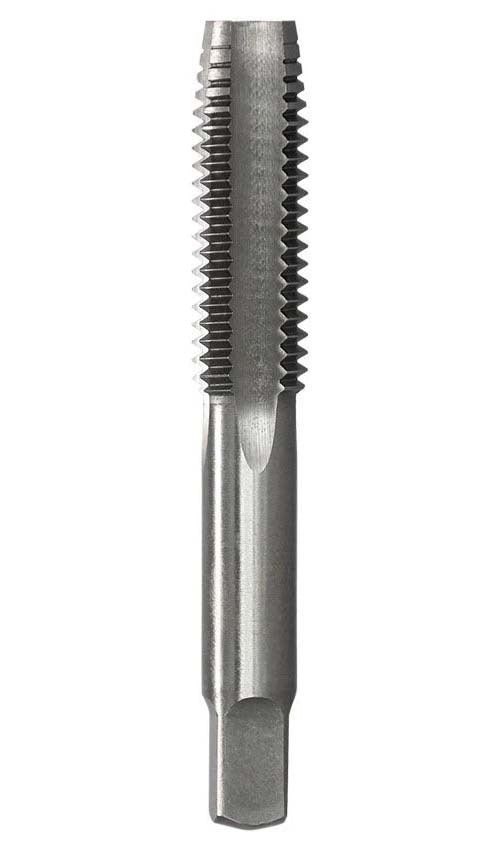

Bordo 8 x 1mm Metric Fine Intermediate Hand Tap
Available
The Bordo Metric Fine Intermediate Chrome Alloy Hand Tap is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Diameter (mm) | 7 |
|---|---|
| Diameter (mm) | 8 |
| Pitch (mm) | 1 |
| Surface Finish | Bright |
| Flute Type | Straight |
| Tap Lead | Intermediate |
| Overall Length (OL) mm | 69 |
Product Features
- Chrome Alloy Metric Fine Intermediate Hand Tap
- Metric Fine angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Metric Fine Intermediate Chrome Alloy Hand Tap: 8
SKU: A0195273 | Model: 4221-8.00I
Diameter (mm) 8. Bordo Metric Fine Intermediate Chrome Alloy Hand Tap
Chrome Alloy Metric Fine Intermediate Hand Tap.
Used as thread chasers to clean an existing thread.
They can also be used to create a new female thread in non-ferrous metals and plastics.
Chrome alloy taps are not suitable for creating precision, safety or critical threads.
Metric Fine angle of thread is 60 degrees.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
About Intermediate Taps
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
About Metric Coarse & Fine
Angle of thread is 60°.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
