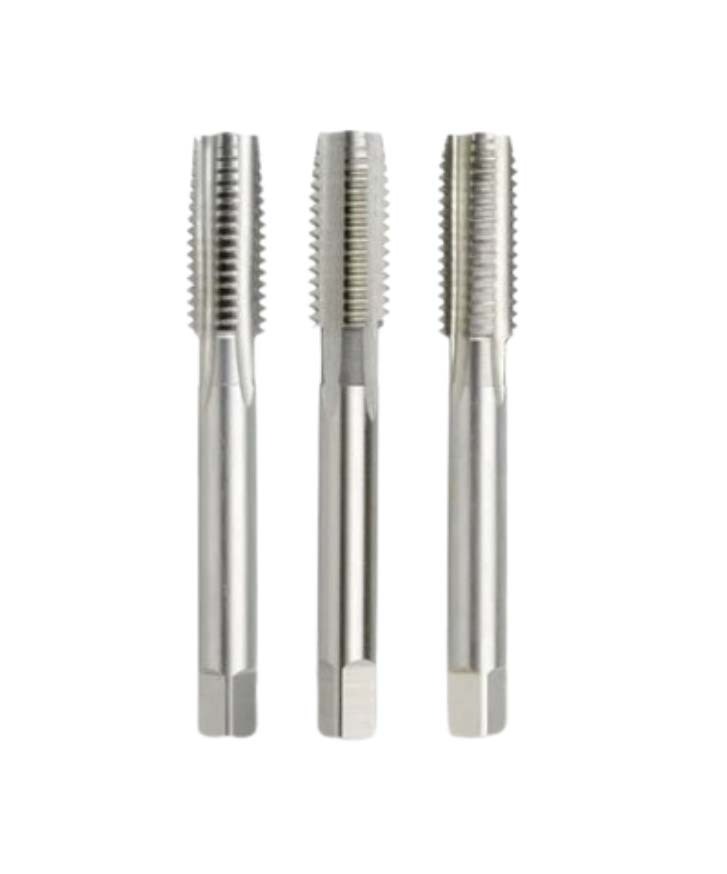

Bordo 3 x 0.35mm MF Tap Set HSS Hand and Machine Tap
Available
The Bordo Metric Fine Tap Set HSS Hand and Machine Tap is part of Bordo's Australian range of tap sets, built for reliable performance in trade and industrial applications.
Key Specifications
| Pitch Size (mm) | 0.35 |
|---|---|
| Drill Size (mm) | 2.65 |
| Diameter (mm) | 3 |
| Overall Length (OAL) mm | 48 |
Product Features
- HSS Metric Fine Hand and Machine Tap Set
- Metric Fine angle of thread is 60 degrees
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Metric Fine Tap Set HSS Hand and Machine Tap: 3 / 0.35
SKU: A0201124 | Model: 3021-3.00TS
This is the 3mm diameter, pitch 0.35mm option of the Bordo Metric Fine Tap Set HSS Hand and Machine Tap. Key details for this option: pitch size 0.35mm, drill size 2.65mm.
Bordo Metric Fine Tap Set HSS Hand and Machine Tap
HSS Metric Fine Hand and Machine Tap Set.
Metric Fine angle of thread is 60°.
The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use
