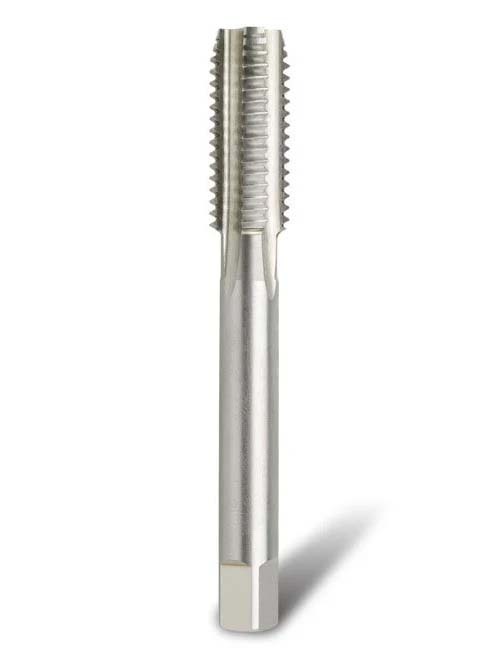

Bordo 1/8" x 27 TPI NPSF Bottoming HSS Hand and Machine Tap
Available
The Bordo NPSF Bottoming HSS Hand and Machine Tap - 3056 is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Size (mm) | 8.5 |
|---|---|
| Diameter (inch) | 1/8 |
| Pitch/TPI | 27 |
| Flute Type | Straight |
| Thread Form Type | NPSF (Dryseal Taper) |
| Overall Length (OAL) mm | 59 |
Product Features
- HSS NPSF Bottoming Hand and Machine Tap
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo NPSF Bottoming HSS Hand and Machine Tap - 3056: 1/8
SKU: A0202390 | Model: 3056-1/8B
Diameter (inch) 1/8. Bordo NPTF Bottoming HSS Hand and Machine Tap - 3054
HSS NPTF Bottoming Hand and Machine Tap.
National Pipe Taper Fuel (Dryseal Taper) is a semi-compatible variant of NPT, designed to provide a more leak free seal without the use of teflon tape or other sealant compound.
NPTF threads are the same basic shape but with crest and root heights adjusted for an interference fit, eliminating the spiral leakage path.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
