Bordo 12mm SDS Max X-Bit Masonry Drill Bit 340mm
Available
The Bordo SDS Max X-Bit Masonry Drill Bit is part of Bordo's Australian drill bit range, engineered for reliable performance in trade and industrial drilling applications.
Key Specifications
| Diameter (mm) | 12 |
|---|---|
| Surface Finish | Shot Peened |
| Flute (mm) | 185 |
| Overall Length (mm) | 340 |
| Shank Type | SDS Max |
| Type of Point | Vacuum Brazed Carbide |
Product Features
- * X-Bits with a diameter greater than 12mm utilise a conventional three piece tungsten carbide arrangement
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo SDS Max X-Bit Masonry Drill Bit: 12 / 340
SKU: A0197872 | Model: 2541-12.00X340
This is the 12mm diameter, 340mm overall length option of the Bordo SDS Max X-Bit Masonry Drill Bit. Key details for this option: shank type SDS Max, type of point Vacuum Brazed Carbide, overall length 340mm, surface finish Shot Peened.

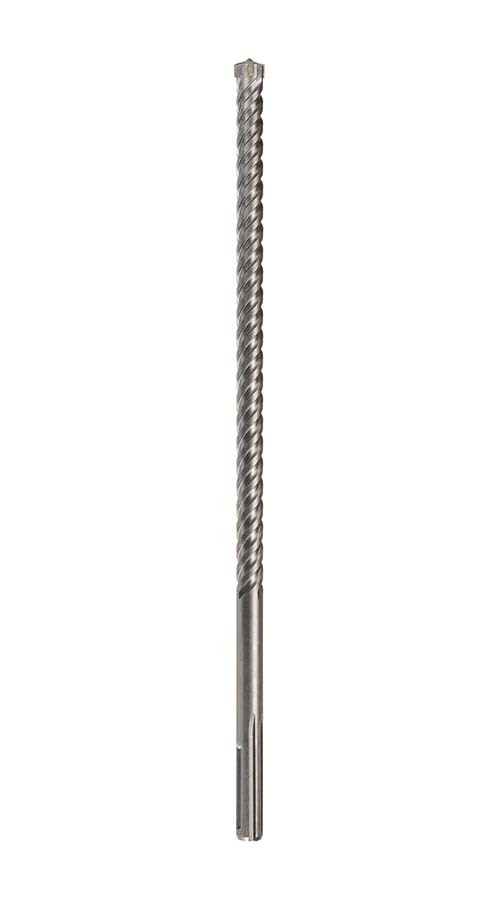

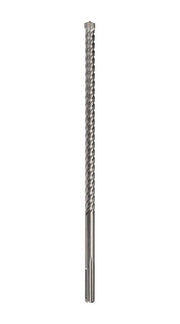

Bordo SDS Max X-Bit Masonry Drill Bit
Bordo X-Bits drill faster and last longer than standard two edged rotary hammer bits.
Hard stone and high MPA concrete quickly cause standard masonry bits to dull and break, but not the X-Bit.
The single piece 4 edge tungsten carbide head offers extreme toughness and wear resistance drilling with exceptionally low vibration.
The precision cutting facets create dimensionally accurate holes for improved anchor performance.
Patented chamfering on the tip ensures fracture resistance when drilling into concrete reinforcing.
Hole positioning is simplified with the self-centering drill tip reducing bit wander.
Four flute geometry ensures efficient dust removal while retaining a solid engineered heavy duty core the length of the drill to prevent bending and breakage.
Suitable for use in: Concrete, High MPA Concrete, Hard Aggregate, Masonry, Hard Stone, and Brick.
X-Bits with a diameter greater than 12mm utilise a conventional three piece tungsten carbide arrangement.
