Bordo Step Tip Step Drill 10mm Deep Cut Tapping HSS-Co5
Available
The Bordo Step Tip Step Drill 10mm Deep Cut Tapping HSS-Co5 is part of Bordo's Australian range of step drill bits, built for reliable performance in trade and industrial applications.
Key Specifications
| Diameter (mm) | 3.3 |
|---|---|
| Shank (inch) | 1/4" Hex |
| Pack Type | Hang Sell |
| Group Code | STSD |
| Step Depth (mm) | 10 |
Product Features
- HSS-Co5 (Cobalt) Titanium Aluminium Nitride Coated (TiAlN) step drills offer unparalleled performance when drilling hard metals such as stainless steel
- Titanium Aluminium Nitride (TiAlN) is a thin film coating that was developed from Titanium Nitride
- It is primarily used in high temperature environments above the limits of TiN usage
- This coating works by forming a thin surface layer of Alumina (Al2O3), or Aluminium Oxide ceramic
- Spiral flutes enable easier tool penetration
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo Step Tip Step Drill 10mm Deep Cut Tapping HSS-Co5: 3.3, 4.2, 5.0, 6.8, 8.5,10.2
SKU: A0210513 | Model: 2612-MD4
This is the diameters 3.3, 4.2, 5.0, 6.8, 8.5,10.2 option of the Bordo Step Tip Step Drill 10mm Deep Cut Tapping HSS-Co5. Key details for this option: pack type Hang Sell, diameter 3.3mm, step depth 10mm.

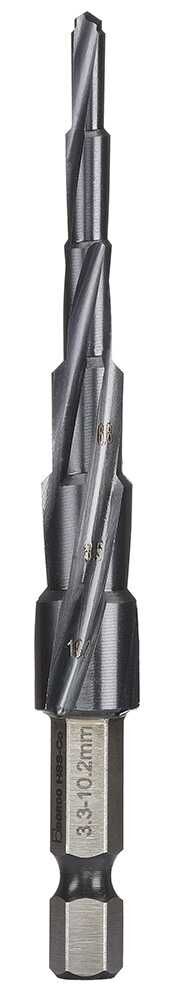

Bordo Step Tip Step Drill 10mm Deep Cut Tapping HSS-Co5
HSS-Co5 (Cobalt) TiAlN Coated 1/4" Hex Shank.
HSS-Co5 (Cobalt) Titanium Aluminium Nitride Coated (TiAlN) step drills offer unparalleled performance when drilling hard metals such as stainless steel.
Step Tip negates the need for a pilot drill in metals and provides extreme drilling speeds in ferrous and non-ferrous metals, plastic and all timbers.
1/4" hex shank is ideal for use with impact drivers, quick change adaptors and bit holders.
Deep Cut - suitable for drilling materials up to 10mm thick.
Laser marked diameters on each step for fast identification.
HSS-Co5 material provides increased performance and tool life when machining tough steels.
Bordo step drills are ideal for electrical contractors, sheetmetal workers and auto mechanics.
Step drills are designed for drilling repetitive holes in steel, stainless steel, copper, brass, aluminium, plastic, plexiglas, laminates and many other materials.
Automatic deburring.
Spiral flutes enable easier tool penetration.
Titanium Aluminium Nitride (TiAlN) is a thin film coating that was developed from Titanium Nitride.
TiAlN offers higher temperature resistance than TiN, as well as slightly higher hardness and especially higher hot hardness (i.e. the hardness at high temperatures).
It is primarily used in high temperature environments above the limits of TiN usage.
This coating works by forming a thin surface layer of Alumina (Al2O3), or Aluminium Oxide ceramic.
As the layer wears it continuously reforms.
