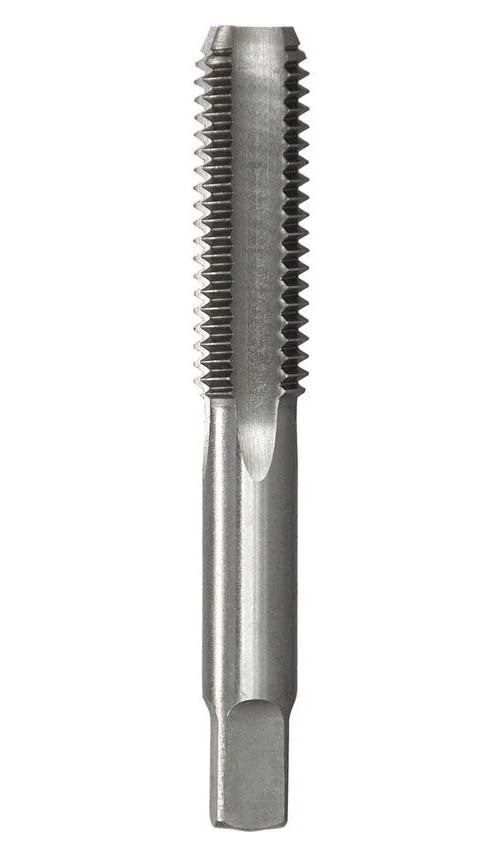

Bordo 5G x 40 TPI UNC Bottoming Chrome Hand Tap
Available
The Bordo UNC Bottoming Chrome Alloy Hand Tap is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Diameter (mm) | 2.65 |
|---|---|
| Tap Diameter (inch) | 5G |
| Diameter (inch) x TPI | 5G" x 40 |
| Thread Per Inch (TPI) | 40 |
| Surface Finish | Bright |
| Flute Type | Straight |
| Tap Lead | Bottoming |
| Overall Length (OL) mm | 48 |
Product Features
- Chrome Alloy UNC Bottoming Hand Tap
- Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK
- The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard
- It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo UNC Bottoming Chrome Alloy Hand Tap: 5G" x 40
SKU: A0195467 | Model: 4232-5GB
Diameter (inch) x TPI 5G" x 40. Bordo UNC Bottoming Chrome Alloy Hand Tap
Chrome Alloy UNC Bottoming Hand Tap.
Used as thread chasers to clean an existing thread.
They can also be used to create a new female thread in non-ferrous metals and plastics.
Chrome alloy taps are not suitable for creating precision, safety or critical threads.
Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
About Bottoming Taps
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
About UNC (Unified National Coarse)
This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
This thread series is commonly used in the mass production of bolts, screws and nuts.
It is used for threading into lower tensile strength materials (bronze, brass, aluminium, and plastics) to obtain the best resistance to stripping of the internal thread.
It is also used for quick assembly or disassembly or if corrosion or slight damage is possible.
