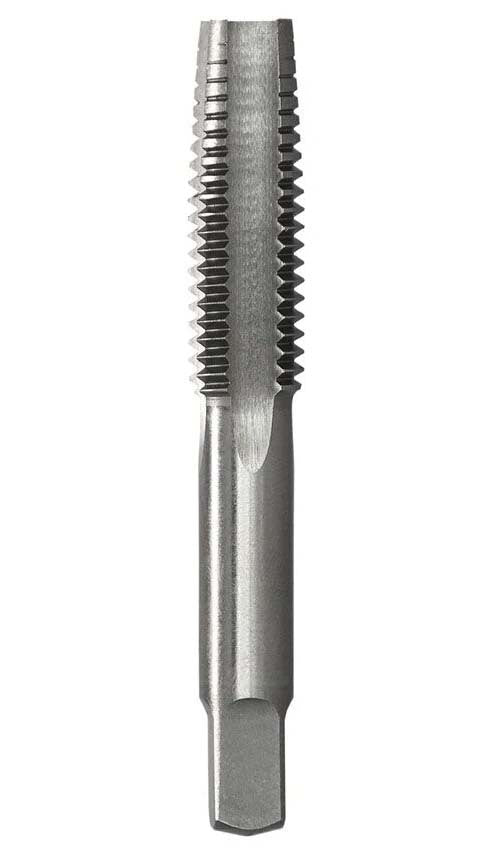

Bordo 5G x 44 TPI UNF Taper Chrome Alloy
Available
The Bordo UNF Taper Chrome Alloy Hand Tap is part of Bordo's Australian range of hand taps, built for reliable performance in trade and industrial applications.
Key Specifications
| Drill Diameter (mm) | 2.7 |
|---|---|
| Tap Diameter (inch) | 5G |
| Diameter (inch) x TPI | 5G" x 44 |
| Thread Per Inch (TPI) | 44 |
| Surface Finish | Bright |
| Flute Type | Straight |
| Tap Lead | Taper |
| Overall Length (OL) mm | 48 |
Product Features
- Chrome Alloy UNF Taper Hand Tap
- Unified National Fine thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK
- The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard
- When used on external threads this series has greater tensile stress area than coarse threads of the same size
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bordo UNF Taper Chrome Alloy Hand Tap: 5G" x 44
SKU: A0195503 | Model: 4234-5GT
Bordo UNF Taper Chrome Alloy Hand Tap
Chrome Alloy UNF Taper Hand Tap.
Used as thread chasers to clean an existing thread.
They can also be used to create a new female thread in non-ferrous metals and plastics.
Chrome alloy taps are not suitable for creating precision, safety or critical threads.
Unified National Fine thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
The thread is described by its major diameter and the number of threads per inch of length (TPI).
When used on external threads this series has greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
About Taper Taps
Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
Manufactured from chrome alloy this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About UNF (Unified National Fine)
This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.The thread is described by its major diameter and the number of threads per inch of length (TPI).
When used on external threads this series has a greater tensile stress area than coarse threads of the same size.
Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
Fine threads are also used where the length of engagement is limited or where wall thickness demands a fine pitch.
