Mitutoyo 511-721-20 Bore Gauge 18-35mm 0.001mm

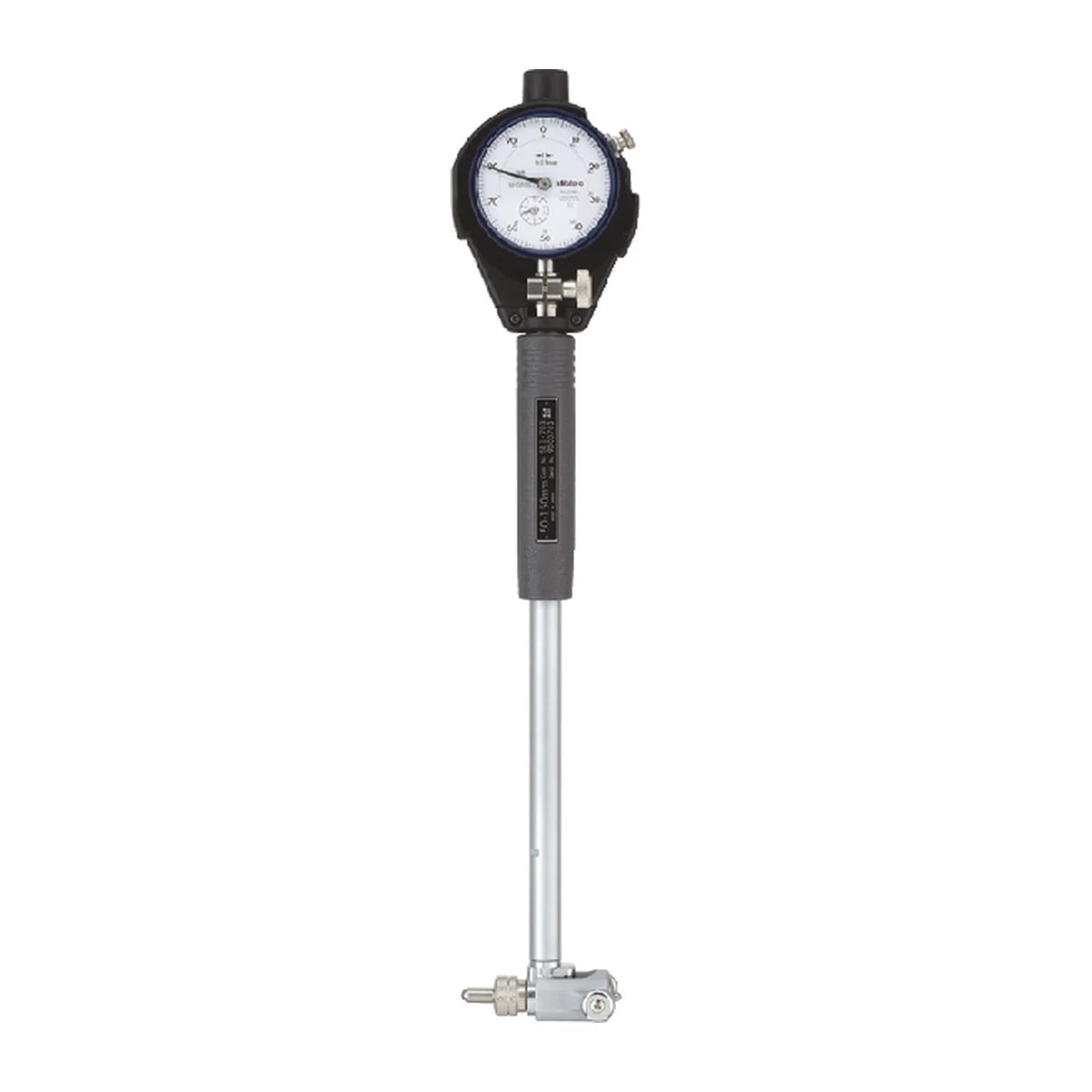

The Mitutoyo Series 511 bore gauge measures the inside diameter of a hole. Toolrooms, quality control teams and machinists use it to check bored and reamed holes against a tight tolerance. The series suits highly accurate measurements. Three ranges are available here, 18 to 35mm, 35 to 60mm and 50 to 150mm, and each comes with a 0.001mm or a 0.01mm dial indicator.

Graduation is the smallest step the gauge shows. Accuracy is how close a reading is to the true size. They are different things, so check both. The 0.001mm dial shows finer steps and suits tight tolerances. The 0.01mm dial is quicker to read for general work. The bore gauge on its own has an accuracy of 2 µm for all six models.

Where this product is used

• Checking bored and reamed holes against a tolerance
• Quality control checks on inside diameters
• Toolroom comparison of hole size against a setting ring (sold separately)

Features

• Three ranges: 18 to 35mm, 35 to 60mm and 50 to 150mm
• Choose a 0.001mm dial for fine tolerances or a 0.01mm dial for general work
• Accuracy of the bore gauge alone is 2 µm, repeatability is 0.5 µm and adjacent error is 1 µm
• Carbide-tipped contact point and anvil for durability and wear resistance
• Round guide on the 18 to 60mm models and roller guides on the 50 to 150mm models

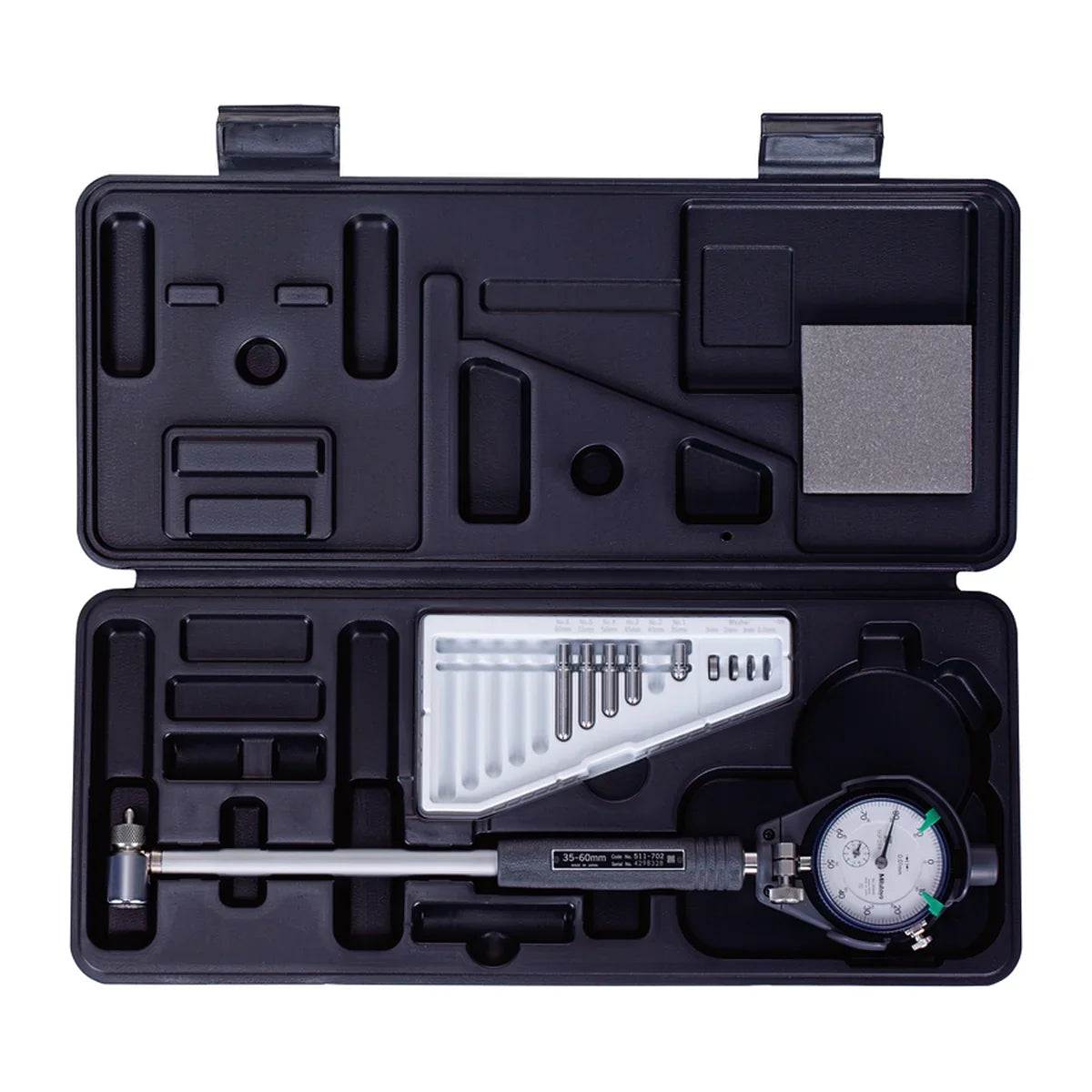

• Dial indicator and dial protection cover (21DZA000) come with each gauge
• Interchangeable anvils and washers cover each range, with a 50mm sub-anvil on the 50 to 150mm models
• Optional extension rods can be fitted for deep holes
• To choose, pick the range for your hole first, then the dial: 0.001mm for fine work or 0.01mm for general checks

Key specifications

Supplied with

• Bore gauge with dial indicator fitted (2109AB-10 at 0.001mm or 2046AB at 0.01mm)
• Dial protection cover (21DZA000)
• Interchangeable anvils and washers (numbers are in each option)
• Spanner with the 18 to 35mm models only
• 50mm sub-anvil with the 50 to 150mm models only
• Not supplied: extension rods and setting rings (optional)

Choosing the right option
