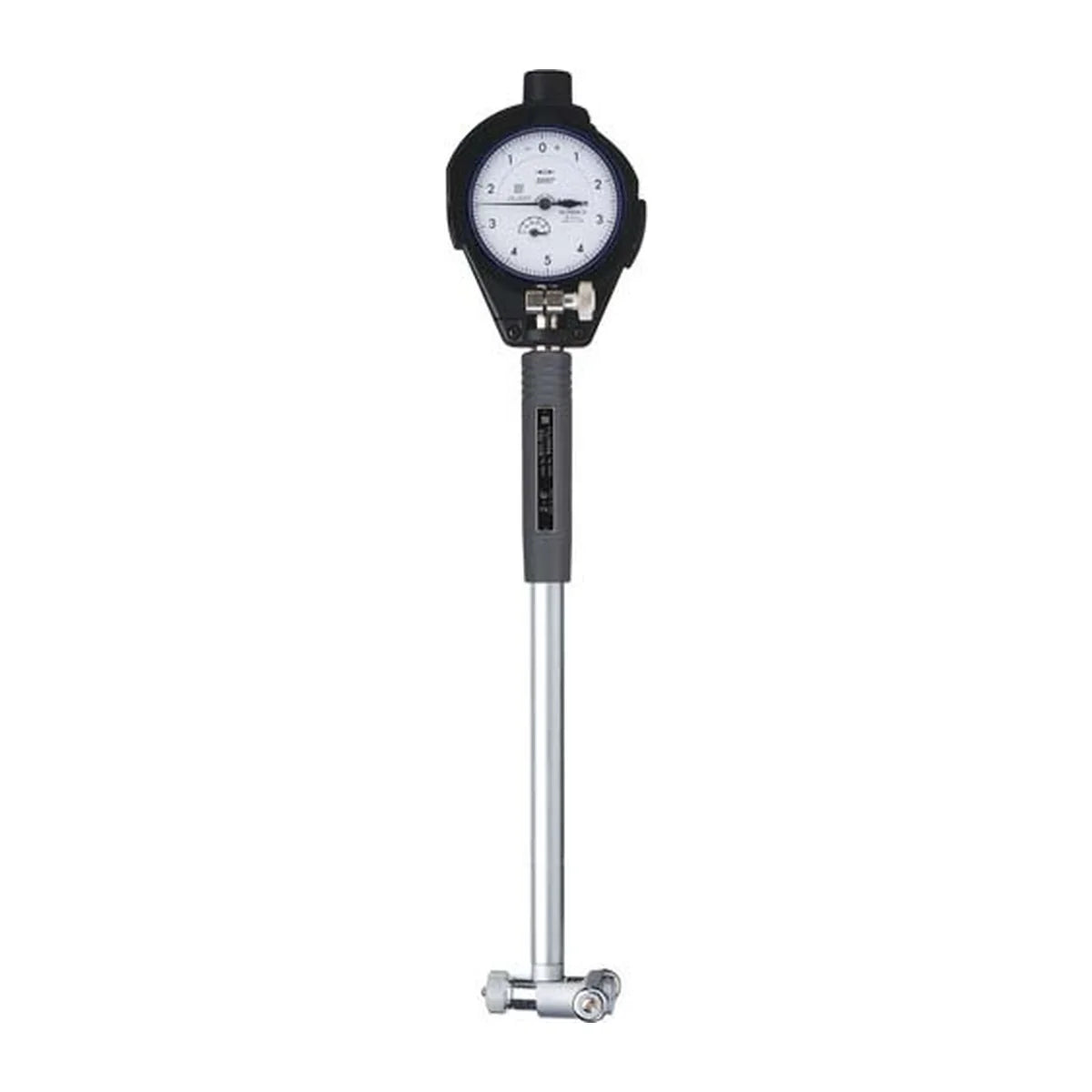

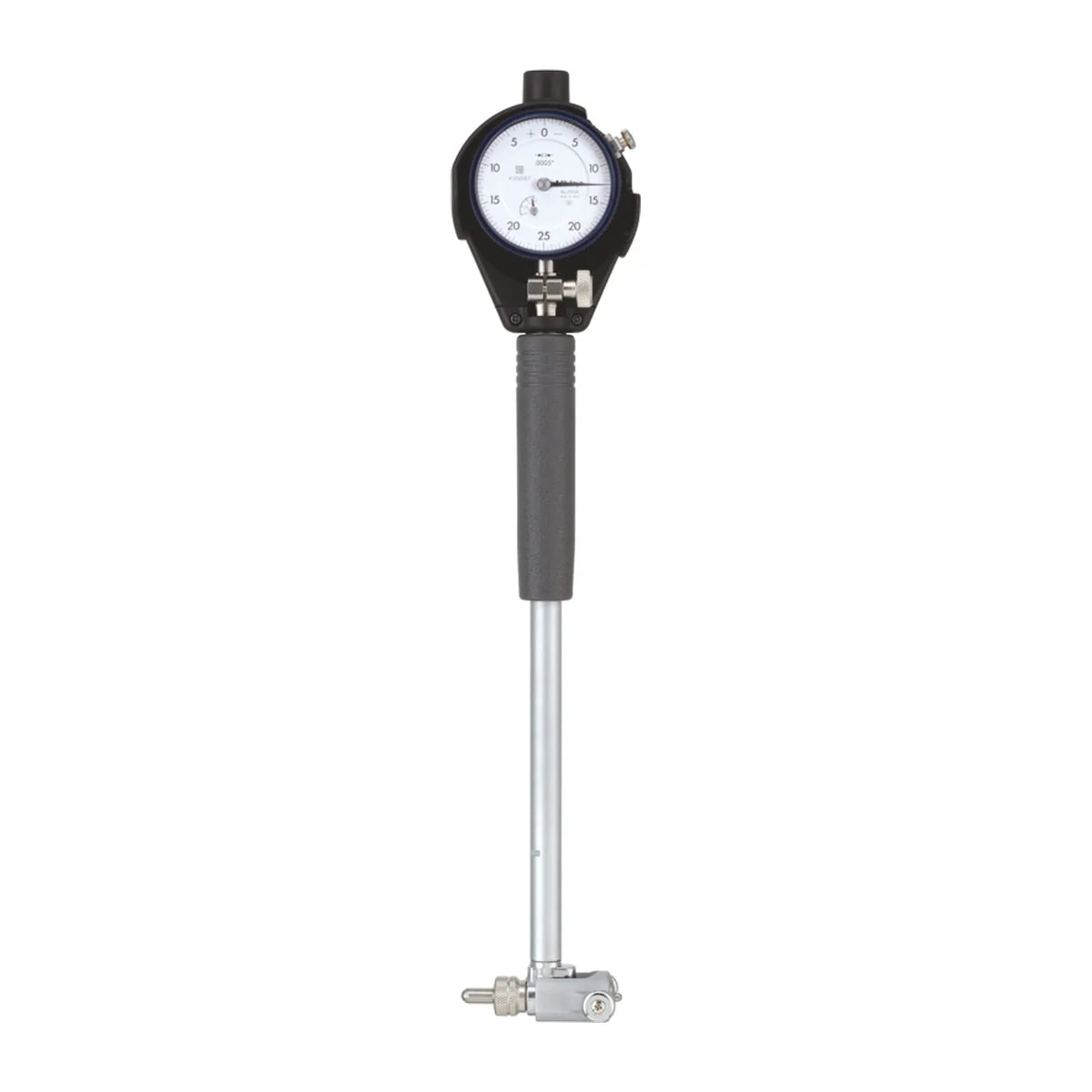

Mitutoyo 511-753-20 Bore Gauge 2-6" 0.0001"

The Mitutoyo Series 511 imperial bore gauge measures the inside diameter of a hole from 2" to 6". Toolrooms, quality control teams and machinists who work in inches use it to check bored and reamed holes. The series suits highly accurate measurements and has a carbide-tipped contact point and anvil for durability and wear resistance.

Graduation is the smallest step the gauge shows. Accuracy is how close a reading is to the true size. They are different things, so check both. Two dials are offered. The 0.0001" dial shows finer steps. The 0.0005" dial is quicker to read. The bore gauge on its own has an accuracy of 0.00008" for both.

Where this product is used

• Checking bored and reamed holes to inch tolerances
• Quality control checks on inside diameters from 2" to 6"
• Toolroom comparison of hole size against a setting ring (sold separately)

Features

• Measures inside diameters from 2" to 6"
• Choose a 0.0001" dial for fine tolerances or a 0.0005" dial for general work
• Accuracy of the bore gauge alone is 0.00008", repeatability is 0.00002" and adjacent error is 0.00004"
• Carbide-tipped contact point and anvil for durability and wear resistance
• Roller guides on the contact point
• Dial indicator and dial protection cover (21DZA000) come with each gauge
• 11 interchangeable anvils, 4 washers and a 2" sub-anvil cover the range
• Optional extension rods can be fitted for deep holes
• To choose, decide how fine you need to read: 0.0001" for tight work or 0.0005" for general checks

Key specifications

Supplied with

• Bore gauge with dial indicator fitted (2923AB-10 at 0.0001" or 2922AB at 0.0005")
• Dial protection cover (21DZA000)
• 11 interchangeable anvils, 4 washers and a 2" sub-anvil
• Not supplied: spanner, extension rods and setting rings (optional)
