BossSafe patriot auto-darkening helmet
Available

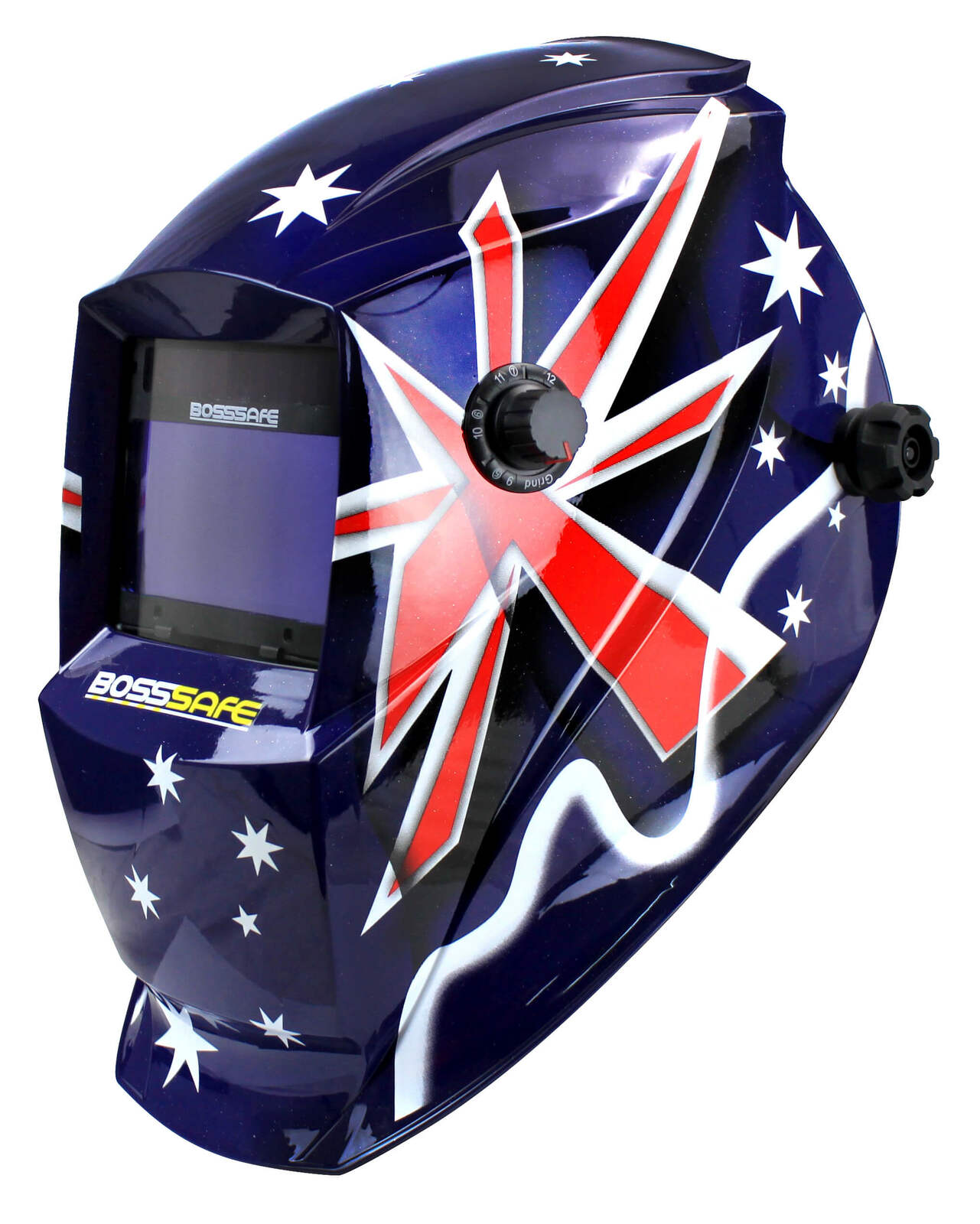

The BossSafe Patriot Trade electronic welding helmet is an auto-darkening helmet from the BossSafe Trade Series, finished in an Australian flag and Southern Cross design on navy blue. It has a 100 x 53mm viewing area, shade adjustable across DIN 5 to 8 and 9 to 13, a grinding mode, four arc sensors and a switching speed of 1/30000 s, and it runs on replaceable batteries.
The Trade Series is designed to protect the eyes, neck and face from flash burn, ultraviolet and infrared light, sparks and heat during welding tasks. It is suited to MIG, TIG and stick welding and to carbon arc gouging. The BossSafe Patriot Trade, BossSafe Siren Trade and BossSafe Scorpion Trade share the same specification and differ in their graphics.
Where this product is used
- MIG, TIG and stick (MMA) welding
- Carbon arc gouging
- Grinding between weld passes using grinding mode, without changing helmets
- Workshop and site welding
Features
- Auto-darkening lens with a 100 x 53mm viewing area
- Shade adjustable across DIN 5 to 8 and 9 to 13
- Grinding mode
- Four arc sensors (quad sensors)
- Switching speed of 1/30000 s
- Replaceable batteries
- Suited to MIG, TIG and stick welding and carbon arc gouging
- Finished in an Australian flag and Southern Cross design on navy blue
Key specifications
| Specification | Detail |
|---|---|
| Brand | BossSafe |
| Model number | 700143 |
| Type | Auto-darkening electronic welding helmet |
| Range | Trade Series |
| Viewing area | 100 x 53mm |
| Shade range | DIN 5 to 8 / 9 to 13 |
| Grinding mode | Yes |
| Arc sensors | 4 (quad sensors) |
| Switching speed | 1/30000 s |
| Power | Replaceable batteries |
| Processes | MIG, TIG, stick, carbon arc gouging |
| Finish | An Australian flag and Southern Cross design on navy blue |
Choosing the right option
Trade Series: viewing area 100 x 53mm, shade range DIN 5 to 8 / 9 to 13, arc sensors 4 (quad sensors), models Patriot, Siren, Scorpion.
Mega View: viewing area 100 x 93mm, shade range DIN 5 to 9 / 9 to 13, arc sensors 4 (quad sensors), models Inferno, Delta, Orion, Vixen.
Wide View: viewing area 100 x 67mm, shade range DIN 9 to 13, arc sensors 2 (dual sensors), models Urban, Blaze, Graphite.
The Trade Series has the smallest viewing area of the three BossSafe electronic helmet ranges (100 x 53mm). If you want a taller window, see the Mega View (100 x 93mm) or Wide View (100 x 67mm) helmets in the range comparison. The Patriot, Siren and Scorpion share one specification, so choose on graphics. Grinding mode is for grinding only: set the helmet back to a welding shade before you strike an arc.
Other Trade Series helmets with the same specification: BossSafe Siren Trade, BossSafe Scorpion Trade.
See also: BossSafe Trade Series Electronic Lens Only, BossSafe Trade Series Outer Lens Packet of 5, BossSafe Trade Series Inner Lens V1 Packet of 2.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
BossSafe Patriot Trade Electronic Welding Helmet
SKU: A0102069 | Model: 700143
BossSafe A0102069 is a patriot auto-darkening helmet. Shade Range: DIN 5 to 8 / 9 to 13. Viewing Area: 100 × 53mm.
