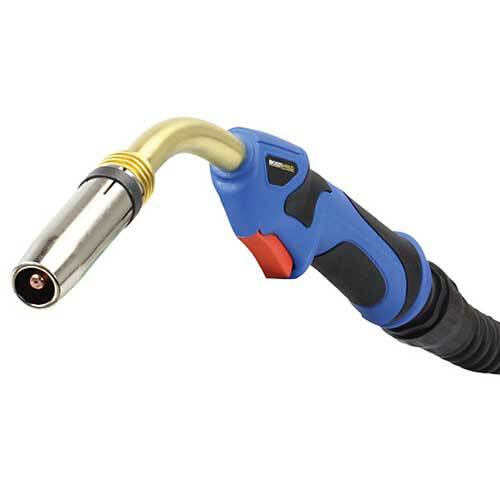

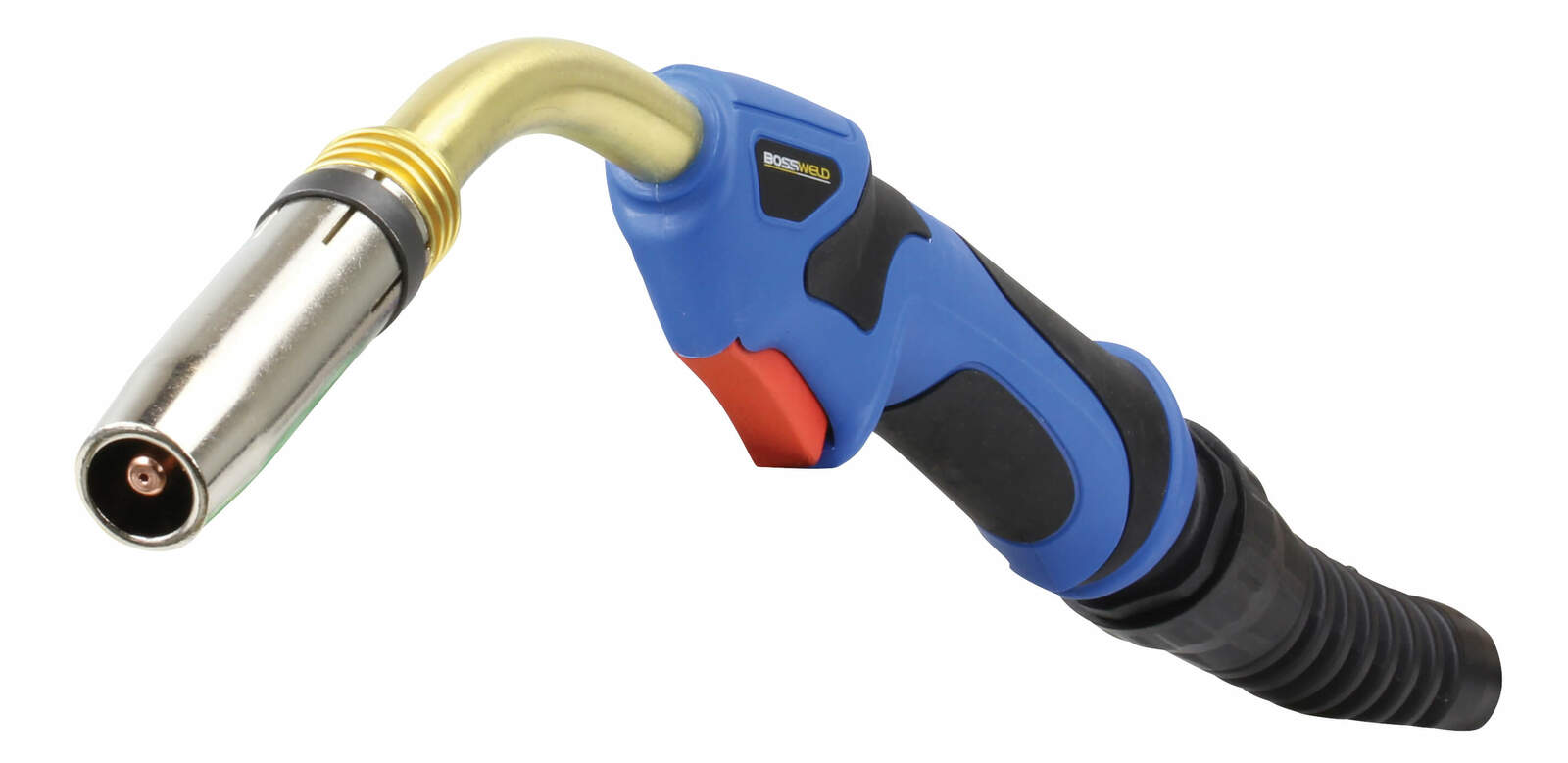

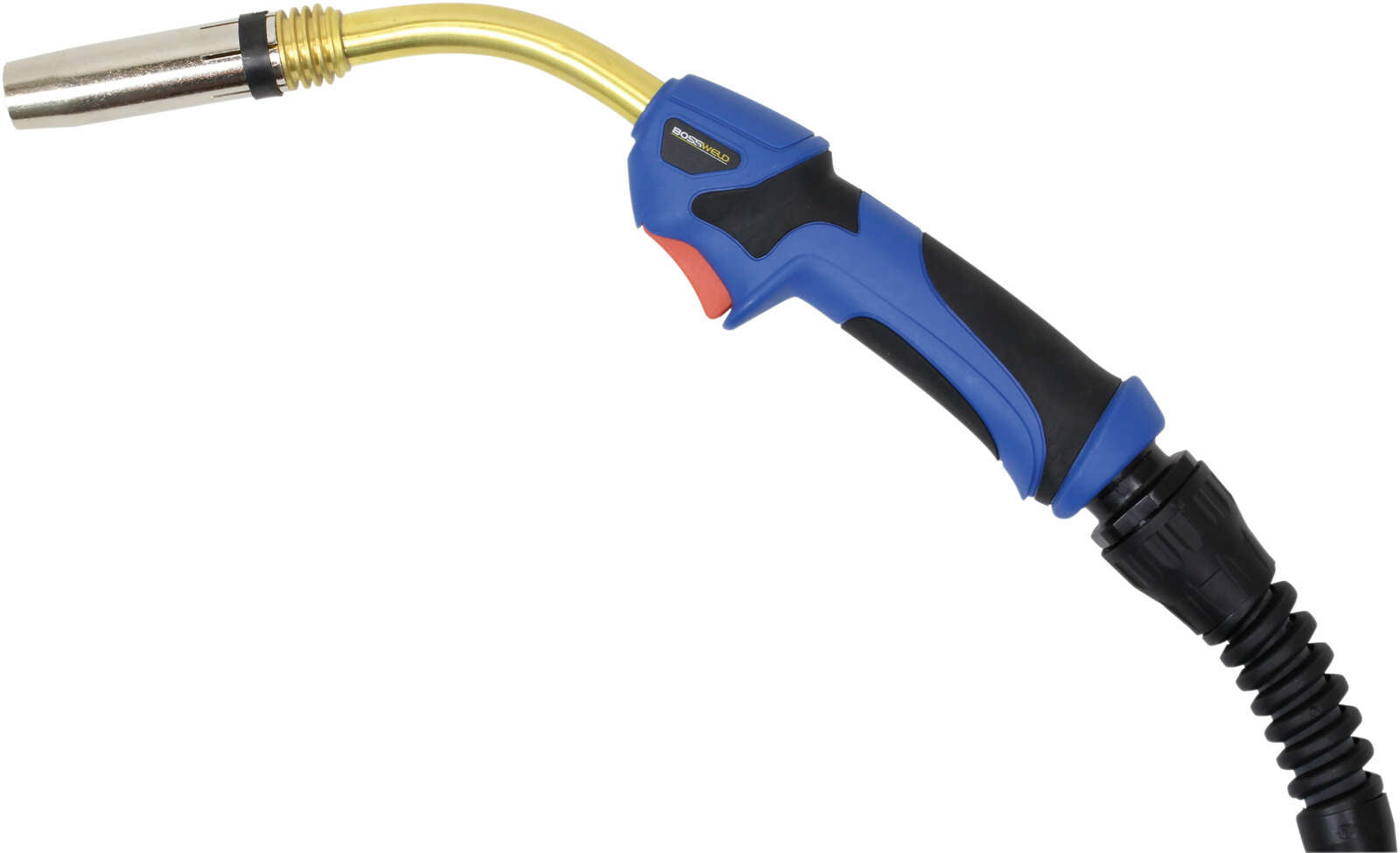

Bossweld binzel Style BZ36 Complete MIG Torch Ergon, 3m

The Bossweld Binzel Style BZ36 Complete MIG Torch Ergon is an air-cooled Binzel 36 style torch with a Euro connection, available with a 3 m, 4 m or 5 m cable. It is typically rated at around 320 A at a 60% duty cycle, for medium to heavy-duty welding.

It takes standard Binzel-style consumables. A complete MIG torch connects the wire feeder to the arc. It carries the welding current, shielding gas and wire, and the amp rating is quoted at a duty cycle: a rating at 60% duty means the torch can weld at that current for 6 minutes in every 10 before it needs to cool.

Where this product is used

• MIG welding of steel and stainless steel in workshops and on site
• Production and fabrication welding
• Replacing a worn or damaged torch on an existing machine

Features

• Binzel 36 style MIG torch
• Length: 3 to 5 m
• Connection: Euro
• Cooling: Air-cooled

Key specifications

Choosing the right option

Choose the torch by the current you weld at, the cable length you need and the connection your machine takes. A longer cable gives more reach but a heavier, stiffer lead, and the connection (Euro or bayonet) has to match your wire feeder. Pick the torch style that matches the consumables you already stock, so tips, nozzles and diffusers stay interchangeable.

Matching parts for the same torch style: Bossweld Binzel 36 Style Contact Tips M6 x 28mm (Pack of 10), Bossweld Binzel 36 Style Adjustable Conical Nozzle 16mm (Pack of 2), Bossweld Binzel 36 Style Gas Diffuser, White (Pack of 2), Bossweld Binzel Style Red Steel Liner 0.9 to 1.2mm x 3 m.
