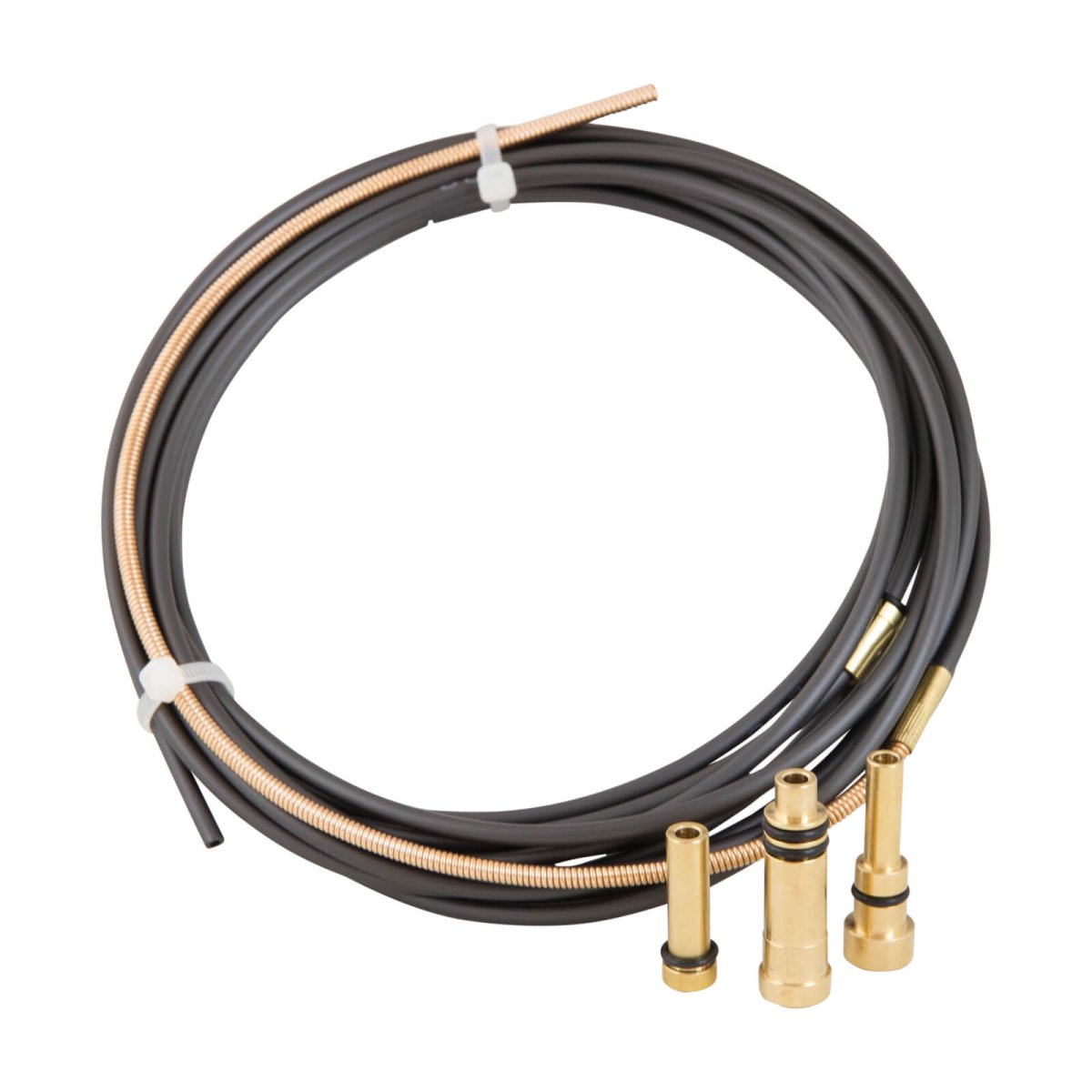

Bossweld Binzel Style Universal Liner 0.9 to 1.2 mm x 4 m | 92.04.U5

Bossweld Binzel Style Universal Liner 0.9 to 1.2 mm x 4 m fits a wide range of MIG welding guns. It is a 4 m universal liner for 0.9 to 1.2 mm wire, made to suit a wide range of MIG welding guns.

The liner guides the welding wire from the drive rollers to the contact tip. A clean liner of the right bore feeds wire smoothly, while a worn, dirty or wrongly sized liner causes erratic feeding, bird-nesting and burn-back. The universal liner is listed for 0.9 to 1.2 mm wire.

Where this product is used

• MIG welding with general-purpose wire
• Replacing a worn, kinked or dirty liner that is causing feed problems
• Fitting a liner of a different bore or length to suit a change of wire

Features

• Universal liner for a wide range of MIG welding guns
• Wire sizes: 0.9 to 1.2 mm
• Length: 4 m

Key specifications

Selecting the right option

Pick the liner to match your wire: the bore range has to include your wire diameter, and the material has to suit the wire (steel for steel and stainless, Teflon for aluminium and soft wires). Check the length against your torch cable, and cut the liner square and deburr the end when you fit it. Replace the liner whenever feeding becomes erratic, and change it along with the contact tip if you have been burning back. If you are unsure which liner your torch takes, contact AIMS with the torch model before ordering.
