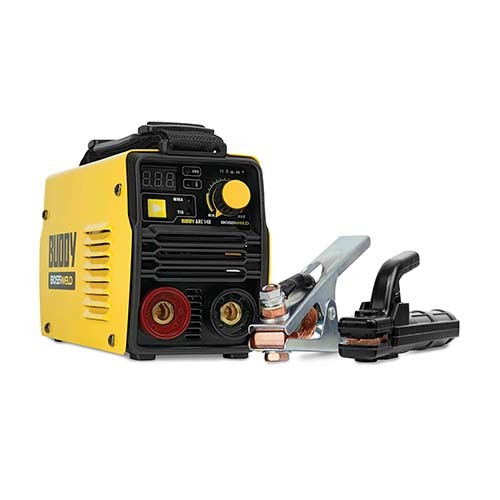

Bossweld Buddy Arc 140 Stick and Lift TIG Inverter Welder 240 V 10 A | 633110
Available
The Bossweld Buddy Arc 140 is a very lightweight IGBT inverter welder for stick (MMA) welding, with DC Lift Arc TIG as well. It has a Voltage Reduction Device (VRD) for added operator safety and runs from a 240 V supply through the fitted 10 A plug.
Built-in arc force, hot start and anti-stick functions give a smooth, stable arc. At 2 kg it suits jobs around the home, farm, workshop or on site, on mild steel, stainless steel and cast iron.
Where this product is used
- General repairs and maintenance
- Rural applications
- Site repair and construction
Features
- Ultra-portable DC stick and Lift Arc TIG welder
- 240 V input with a fitted 10 A plug
- Variable current control with a digital display
- Built-in arc force, hot start and anti-stick functions
- VRD for increased operator safety
- Weighs 2 kg
What is in the box
- Electrode holder
- Earth clamp
- Carry strap
- Carry case
Key specifications
| Specification | Detail |
|---|---|
| Processes | DC stick (MMA) and DC Lift Arc TIG |
| Input power | 240 V, 10 A plug fitted |
| Output current range | 10 to 140 A |
| Duty cycle (MMA) | 15% at 140 A, 60% at 70 A, 100% at 54 A |
| Open circuit voltage | 62 V (18 V with VRD) |
| Electrode diameters | 2.5 to 3.2 mm |
| Suits | Mild steel, stainless steel and cast iron |
| Protection class | IP21S |
| Weight | 2 kg |
| Dimensions | 210 x 100 x 137 mm |
| Part number | 633110 |
Selecting the right option
Check the input supply, the output you need and the processes you weld with before you choose. If you are unsure which machine suits your work, contact AIMS with the materials, thicknesses and power supply you have.
Related products
See also Bossweld Buddy Arc 145 Stick and Lift TIG Inverter Welder 240 V 10 A, Bossweld 6013 General Purpose Electrodes and Bossweld Tong Type Electrode Holders.
