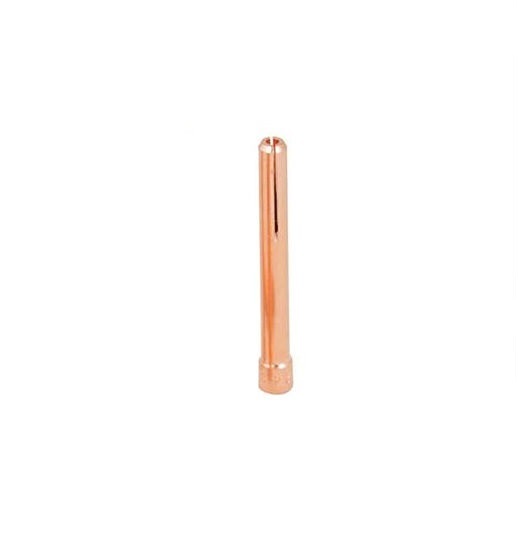

Bossweld Collet 2.4 mm, 9/20 Series (Pack of 5) | 9513N23

Bossweld Collet 2.4 mm, 9/20 Series fits 9 and 20 series TIG torches. It is supplied in a pack of 5.

The collet is the small sleeve that grips the tungsten electrode inside the collet body. It has to match the tungsten diameter exactly: a loose collet lets the tungsten move or arc, and a worn one gives poor electrical contact.

Where this product is used

• TIG welding with a tungsten electrode of a known diameter
• Replacing a worn or damaged collet
• Changing tungsten diameter on the same torch

Features

• Collet for 9 and 20 series TIG torches
• Tungsten diameter: 2.4 mm (3/32 in)
• Supplied in packs of 5

Key specifications

Selecting the right option

Pick the collet diameter to match your tungsten electrode and the series to match your torch, and use it with a collet body of the same diameter. Replace a collet that is worn, scored or no longer grips the tungsten firmly. If you are unsure which collet suits your torch, contact AIMS with the torch model before ordering.
