Bossweld collet Body 0.5, 0.5mm - 0.20"
The price shown is for the pack.
Available

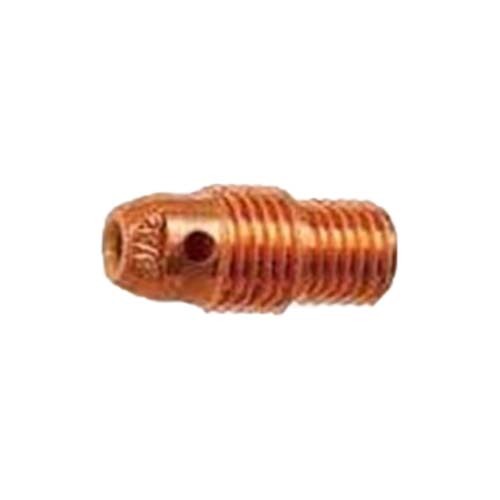

The Bossweld Collet Body comes in 3 options (0.5mm, 1.0mm and 3.2mm) and fits 9 and 20 series TIG torches. Each option is supplied in a pack of 5.
The collet body threads into the torch head and holds the collet. It sets the tungsten position and passes the shielding gas around the electrode, so a worn or loose collet body shows up as an unstable arc or poor gas coverage.
Where this product is used
- TIG welding where the tungsten has to sit in a precise, repeatable position
- Replacing a worn, damaged or loose collet body
- Changing tungsten diameter on the same torch
Features
- Collet body for 9 and 20 series TIG torches
- Tungsten sizes: 0.5, 1.0 and 3.2mm
- Supplied in packs of 5
- Product type: TIG Collet Body
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Product type | TIG Collet Body |
Choosing the right option
Match the collet body to your torch series and to the tungsten diameter you weld with, and use it with a collet of the same diameter.
Matching parts for the same torch series: Bossweld Alumina Cup Size 4, 6.0mm, 9/20 Series (Pack of 2), Bossweld Gas Lens Alumina Cup Sizes 4 to 7, 9/20 Series (Pack of 2), Bossweld Collet 1.6mm, 9/20 Series (Pack of 5), Bossweld Long Back Cap, 9/20 Series (Pack of 2).
| Tungsten diameter | Torch series | Part number |
|---|---|---|
| 0.5mm | 9 and 20 series | 9513N25 |
| 1.0mm | 9 and 20 series | 9513N26 |
| 3.2mm (1/8") | 9 and 20 series | 9513N29 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld Collet Body 0.5, 1.0 and 3.2 mm, 9/20 Series (Pack of 5): 0.5mm - 0.20"
SKU: A0149144 | Model: 9513N25
Bossweld 9513N25: collet Body 0.5, 0.5mm - 0.20". Torch Series: 9/20. Tungsten Diameter: 0.5mm.
