Bossweld collet 0.5, 0.5mm - 0.20"
The price shown is for the pack.
Available
The Bossweld Collet comes in 3 options (0.5mm, 1.0mm and 3.2mm) and fits 9 and 20 series TIG torches. Each option is supplied in a pack of 5.

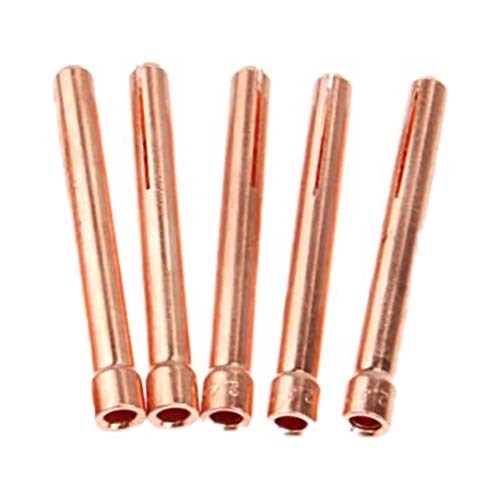

The collet is the small sleeve that grips the tungsten electrode inside the collet body. It has to match the tungsten diameter exactly: a loose collet lets the tungsten move or arc, and a worn one gives poor electrical contact.
Where this product is used
- TIG welding with a tungsten electrode of a known diameter
- Replacing a worn or damaged collet
- Changing tungsten diameter on the same torch
Features
- Collet for 9 and 20 series TIG torches
- Tungsten sizes: 0.5, 1.0 and 3.2mm
- Supplied in packs of 5
- Product type: TIG Collet
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Product type | TIG Collet |
Choosing the right option
Pick the collet diameter to match your tungsten electrode and the series to match your torch, and use it with a collet body of the same diameter. Replace a collet that is worn, scored or no longer grips the tungsten firmly.
Matching parts for the same torch series: Bossweld Alumina Cup Size 4, 6.0mm, 9/20 Series (Pack of 2), Bossweld Gas Lens Alumina Cup Sizes 4 to 7, 9/20 Series (Pack of 2), Bossweld Collet Body 1.6mm, 9/20 Series (Pack of 5), Bossweld Long Back Cap, 9/20 Series (Pack of 2).
| Tungsten diameter | Torch series | Part number |
|---|---|---|
| 0.5mm | 9 and 20 series | 9513N20 |
| 1.0mm | 9 and 20 series | 9513N21 |
| 3.2mm (1/8") | 9 and 20 series | 9513N24 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Bossweld Collet 0.5, 1.0 and 3.2 mm, 9/20 Series (Pack of 5): 0.5mm - 0.20"
SKU: A0149141 | Model: 9513N20
Bossweld 9513N20: collet 0.5, 0.5mm - 0.20". Torch Series: 9/20. Tungsten Diameter: 0.5mm.
