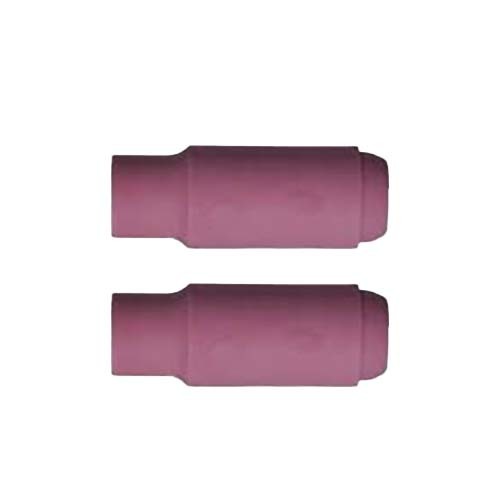

Bossweld long Alumina Cup Sizes 5 to 7, size 5

The Bossweld Long Alumina Cup comes in 3 options (size 5, size 6 and size 7) and fits 17, 18 and 26 series TIG torches. Each option is supplied in a pack of 2.

The long alumina cup has an extended profile for better access in confined joints and tight weld areas. It directs the shielding gas over the weld pool and insulates the torch head like a standard cup.

Where this product is used

• TIG welding in confined joints and tight corners
• Reaching into joints that a standard cup cannot reach
• Replacing a cracked, chipped or contaminated long cup

Features

• Long alumina cup for 17, 18 and 26 series TIG torches
• Sizes: 5 (8.0mm), 6 (9.5mm) and 7 (11.5mm)
• Supplied in packs of 2
• Product type: TIG Alumina Cup

Key specifications

Choosing the right option

Pick the cup series to match your torch (17/18/26 or 9/20), then the size to suit the joint: a larger cup gives wider gas coverage, and a smaller cup gives access in tight corners. Alumina is a ceramic, so replace a cup that is cracked or chipped.

Matching parts for the same torch series: Bossweld Alumina Cup Size 5, 8.0mm, 17/18/26 Series (Pack of 2), Bossweld Gas Lens Alumina Cup Size 7, 11.0mm, 17/18/26 Series (Pack of 2), Bossweld Collet 1.6mm, 17/18/26 Series (Pack of 5), Bossweld Collet Body 0.5 and 1.0mm, 17/18/26 Series (Pack of 5).
