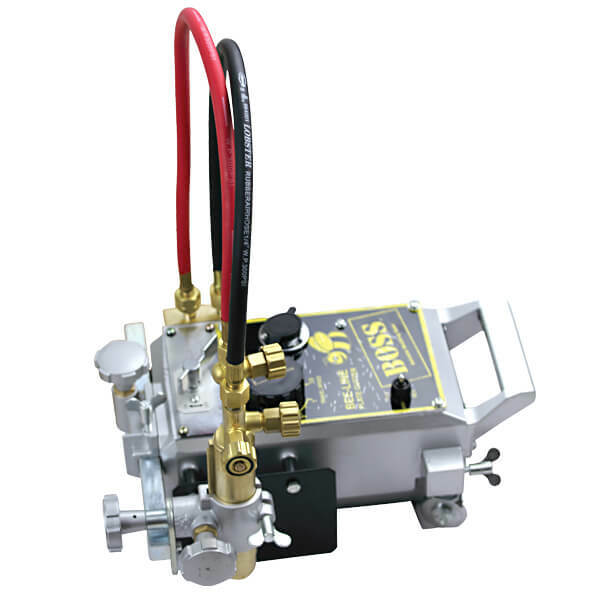

Bossweld Single Head Plate Cutter with 1.8 m Rail
Available
The Bossweld Single Head Plate Cutter is a portable gas cutting machine with a mechanised, variable speed carriage that carries a multi-adjustable machine cutting torch, for controlled, consistent cuts on plate. It cuts plate from 5mm to 50mm thick, and the rails interlock, so you can add rails to cut any length you need.
The torch tilts to cut bevels, and the cutting tip size sets the thickness capacity. Forward, neutral and reverse travel control gives you precision and direction control. The 1.8 m rail and cutting tips are included. The machine carries a warranty of 1 year on electrical components and 3 months on parts.
Where this product is used
- Straight and bevel cuts on steel plate in fabrication
- Repeatable cutting of plate on site and in the workshop
- Cutting long lengths with interlocked rails
Features
- Mechanised variable speed carriage
- Cuts plate 5mm to 50mm thick
- Variable angle torch for bevelling
- Includes a 1.8 m rail, rails interlock for longer cuts
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Type | Single head plate cutter |
| Model | 4CG30 |
| Cutting thickness | 5 to 50mm |
| Rail length | 1.8 m, included |
| Travel | Forward, neutral and reverse |
| Warranty | 1 year electrical components, 3 months parts |
| Part number | 4CG30 |
Choosing the right option
The machine needs oxygen, a fuel gas supply and hoses, plus a regulator for each gas. The oxygen and fuel gas hoses, the distributor and the rack bar are available as spares.
See also: Bossweld Hose for Single Head Plate Cutter Oxygen, Bossweld Hose for Single Head Plate Cutter Fuel Gas, Bossweld Distributor for Single Head Plate Cutter 5/8 Inch-18, Bossweld Rack Bar for Single Head Plate Cutter.
