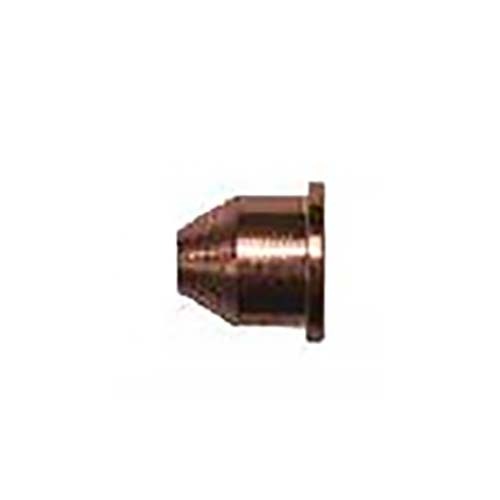

Bossweld extended Tip for CB50/CB70 and A101 Torches, 1.0mm

The Bossweld Extended Tip for CB50/CB70 and A101 Torches comes in 4 options and suits CB50, CB70 and A101 torches. The 1.0 and 1.2mm tips suit CB50 and CB70 torches, and the 1.4 and 1.7mm tips suit A101 torches. Each option is supplied as a pack of 5.

The tip, also called the nozzle, holds the small orifice that squeezes the plasma arc into a tight, hot jet. The bore size is matched to the cutting current. A worn tip gives a rough or angled cut, a wider kerf or an oval hole, so replace it before the orifice is badly worn, normally together with a new electrode.

Where this product is used

• Replacing worn tips on a hand-held plasma torch
• Routine consumable changes in a fabrication workshop
• Keeping spare front-end parts at the machine to limit downtime

Features

• Plasma cutting tip for CB50, CB70 and A101 torches
• Supplied as a pack of 5
• Product type: Plasma Tip

Key specifications

Choosing the right option

Match the tip to your torch by part number and pick the bore size to suit the cutting current you run: a smaller bore suits lower current and thinner plate, and a larger bore suits higher current. Extended tips go with extended electrodes, so check what is fitted to your torch now. Check the part number against the parts list for your torch before ordering.

Matching parts for the same torch family: Bossweld Extended Electrode for CB50/CB70 Torches (Pack of 5), Bossweld Gouging/Contact Cutting Nozzle HD for A101 Torch, Bossweld Air Diffuser for HY40/CB50 Torches (Pack of 2), Bossweld Fibreglass Retaining Cap for CB70 Torch.
