Bossweld 1.0 mm Extended Conical Tip for CB50 Torch (Pack of 5)
The price shown is for the pack.
Available

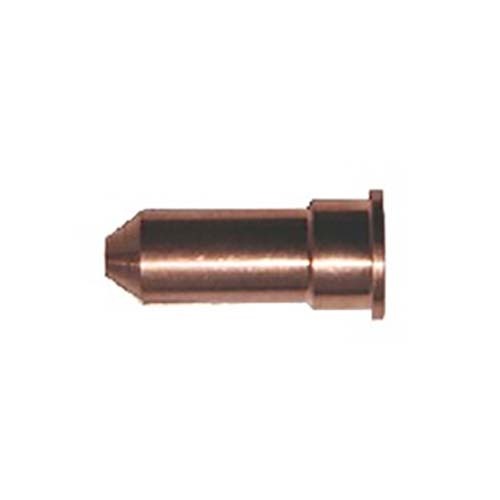

Bossweld 1.0mm Extended Conical Tip for CB50 Torch suits CB50 torches. It is an extended conical tip with a 1.0mm bore, part 94.PD0014-10. It is supplied as a pack of 5.
The tip, also called the nozzle, holds the small orifice that squeezes the plasma arc into a tight, hot jet. The bore size is matched to the cutting current. A worn tip gives a rough or angled cut, a wider kerf or an oval hole, so replace it before the orifice is badly worn, normally together with a new electrode.
Where this product is used
- Replacing worn tips on a hand-held plasma torch
- Routine consumable changes in a fabrication workshop
- Keeping spare front-end parts at the machine to limit downtime
Features
- Plasma cutting tip for CB50 torches
- Tip size: 1.0mm
- Style: Extended, conical
- Supplied as a pack of 5
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bossweld |
| Type | Plasma cutting tip |
| Fits | CB50 torches |
| Tip size | 1.0mm |
| Style | Extended, conical |
| Pack quantity | 5 |
| Part number | 94.PD0014-10 |
Choosing the right option
Match the tip to your torch by part number and pick the bore size to suit the cutting current you run: a smaller bore suits lower current and thinner plate, and a larger bore suits higher current. Extended tips go with extended electrodes, so check what is fitted to your torch now. Check the part number against the parts list for your torch before ordering.
Matching parts for the same torch family: Bossweld Extended Electrode for CB50/CB70 Torches (Pack of 5), Bossweld Outside Nozzle for CB50 Torch, Bossweld Air Diffuser for HY40/CB50 Torches (Pack of 2).
