Brady A62-14-417 Wraptor B-417 Self-Laminating Aggressive

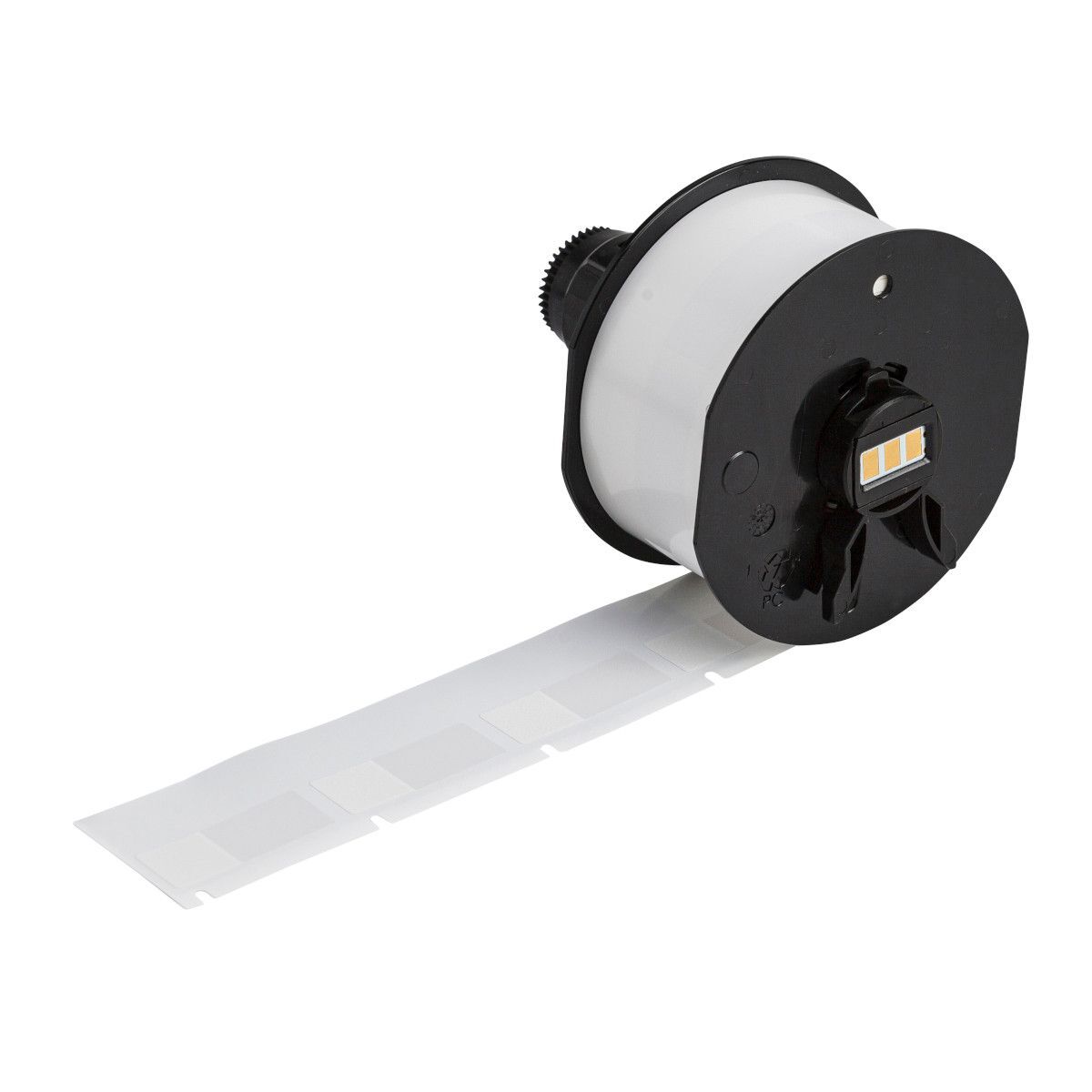

Brady B-417 is a self-laminating vinyl wrap label with an aggressive adhesive for the Wraptor A6200 printer applicator. The range has four sizes on rolls of 450 or 750 labels: 12.7 x 19.05, 12.7 x 31.75, 25.4 x 19.05 and 25.4 x 31.75mm.

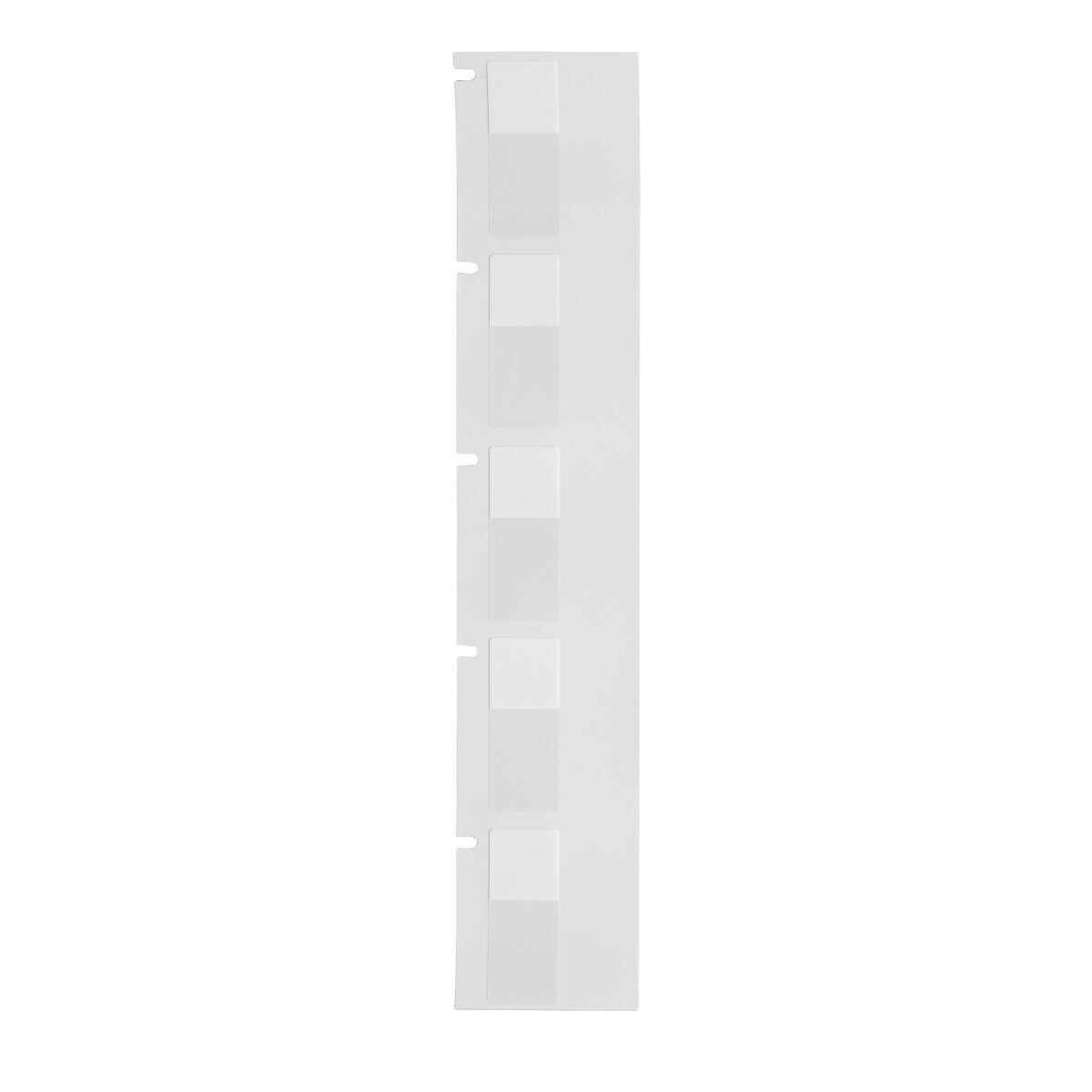

Each label has a white print area and a clear tail that wraps around the wire and covers the print, so the text is protected by the label itself. B-417 is a matte vinyl 0.10mm (0.004") thick with a permanent acrylic adhesive. Service temperature is -40 to 70 °C. It is not recommended for outdoor use, so treat it as indoor stock. The 19.05mm tall labels suit wire from 22 to 12 AWG (1.52 to 3.05mm diameter) and the 31.75mm tall labels suit 12 to 6 AWG (3.05 to 6.1mm diameter). A62-R4300 is the ribbon.

Where this product is used

• Wire and cable labelling
• Electrical labelling
• Data and telecommunications labelling

Features

• Self-laminating: white print area with a clear tail over the print
• Extra-strong permanent acrylic adhesive
• Service temperature -40 to 70 °C
• Small-gauge wire from 22 to 12 AWG, and 12 to 6 AWG in the taller sizes
• Four sizes, each with its own product code

Key specifications

Choosing the right option

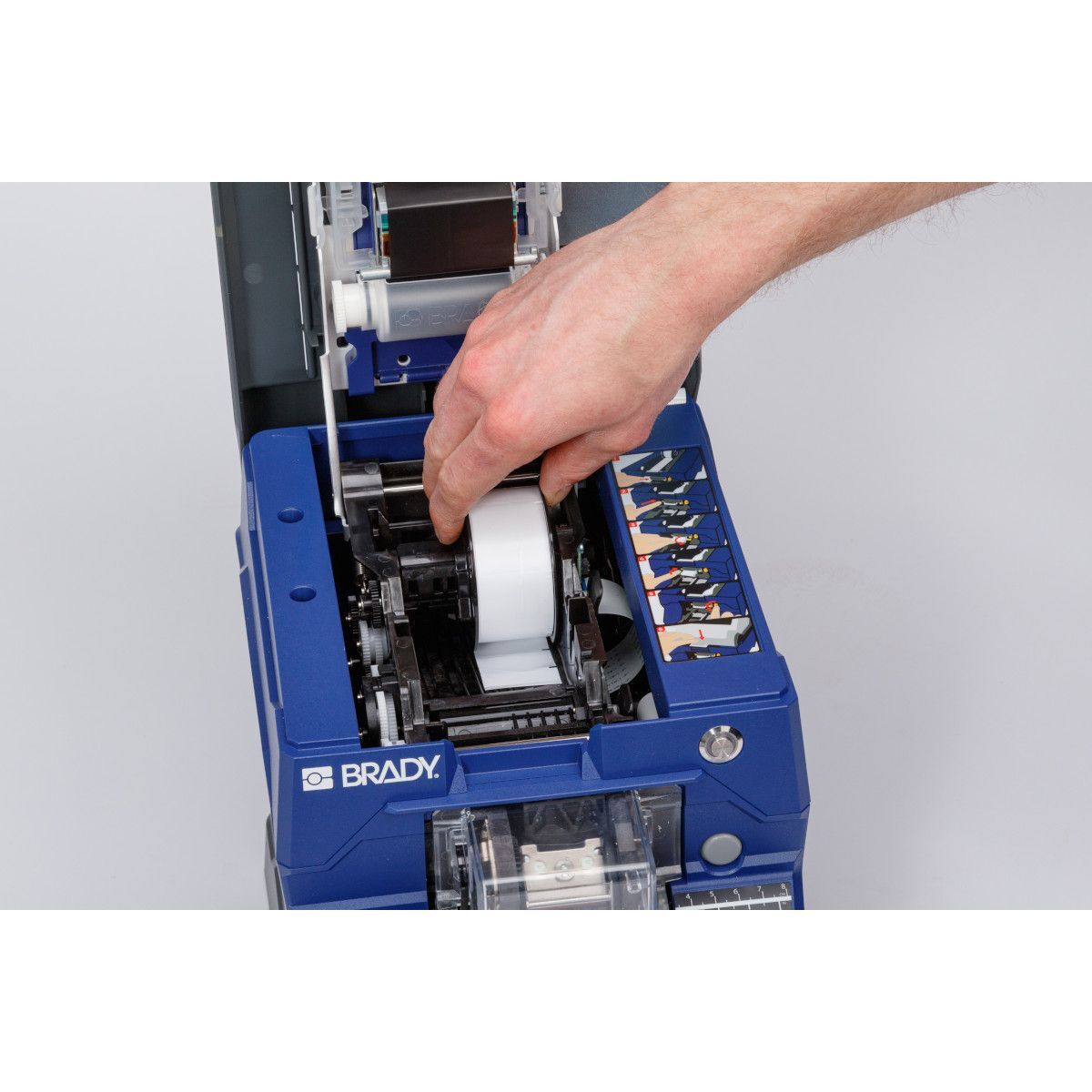

Choose the size by the wire: the 19.05mm tall labels for 22 to 12 AWG and the 31.75mm tall labels for 12 to 6 AWG. These labels print on the Wraptor A6200 only. For a self-laminating vinyl rated down to -70 °C see the Wraptor B-427 self-laminating vinyl wraps, and for nylon cloth see the Wraptor B-499 nylon wrap labels.

Related Brady products: Wraptor B-427 self-laminating vinyl wraps, Wraptor B-499 nylon wrap labels and B-499 nylon labels for B33 printers.
