Bramley CPSET Chassis Hole Punch (6 piece Set)
Available
Bramley CPSET is a set of six popular chassis hole punch sizes: 16, 20, 22, 25.5, 32 and 35mm. The punches use a 3 point design for easier cutting and an upgraded tool steel specification for increased life and performance, and cut stainless steel more easily than the previous design.

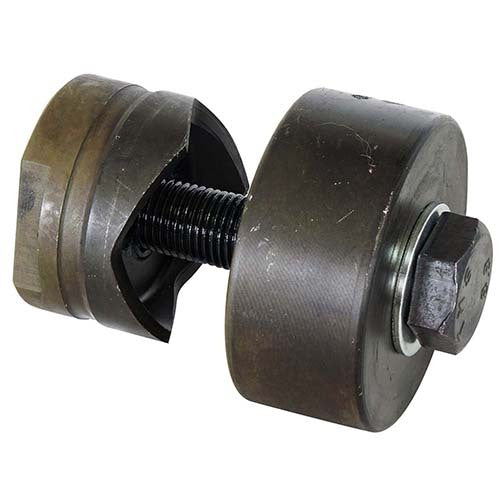

To use a punch: drill a hole 1/32" (0.8mm) larger than the drive screw, insert the screw through the die, place it through the hole in the metal and screw on the punch, then turn the drive screw with a spanner or wrench until the metal is cut.
Where this product is used
- Cutting neat round holes in sheet metal
- Sheet metal hole cutting
Features

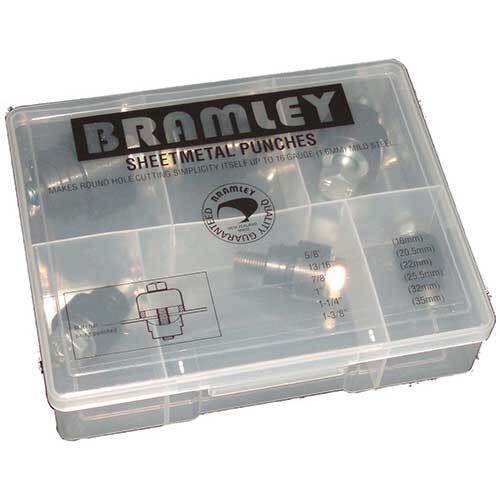

- Set of six popular sizes: 16, 20, 22, 25.5, 32 and 35mm
- 3 point punch design for easier cutting
- Upgraded tool steel specification for increased life and performance
- Cuts stainless steel more easily than the previous design
- For simple cutting of neat holes in sheet metal
Key specifications
| Specification | Detail |
|---|---|
| Brand | Bramley |
| Product type | Chassis Punch |
| Model | CPSET |
| Contents | 6 punches: 16, 20, 22, 25.5, 32 and 35mm |
| Operation | Drive screw turned with a spanner or wrench |
Choosing the right option
Choose the set if the six sizes cover your regular work. For other sizes from 12.5mm to 51mm see the Bramley chassis hole punches.
See also: Bramley chassis hole punch sizes.
