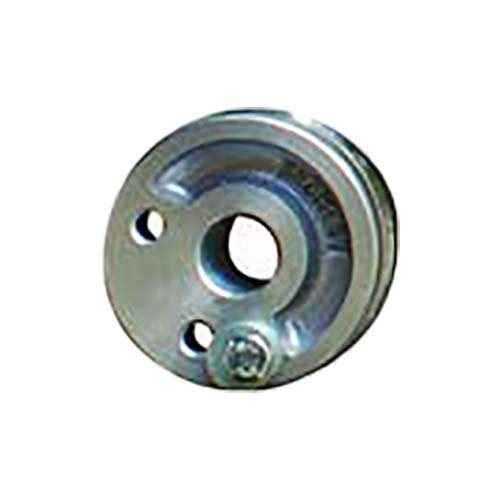

Bramley TBFR1/2 Manual Thin Wall Tube Bender Former Round 1/2"
Regular price
$249.34
Sale price
$249.34
Regular price
Inc. GST
Available
Bramley manual thin wall tube bender formers for round tube are sized from 1/2" to 1 1/8". The TBRD and TBSQ benders now use lightweight aluminium alloy formers. They are used on the Bramley TBRD manual thin wall tube bender, and square formers fit onto the round tube bender and vice versa.
The 1 1/8" round former is an optional extra and is not supplied with the TBRD.
Where this product is used
- Bending thin wall round tube up to 90 degrees in one operation.
Features
- 6 sizes from 1/2" to 1 1/8"
- Radius of bend from 50 mm to 115 mm by size
- Round formers can also be fitted to the square tube bender
Key specifications
| Model | Tube size | Radius of bend |
|---|---|---|
| TBFR1/2 | 1/2" (12.7 mm) | 50 mm |

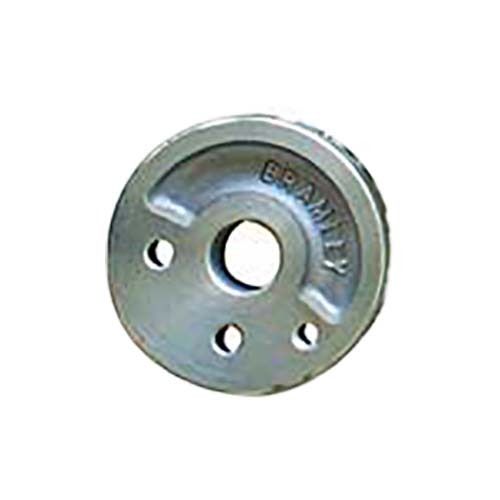

| TBFR5/8 | 5/8" (15.8 mm) | 55 mm |

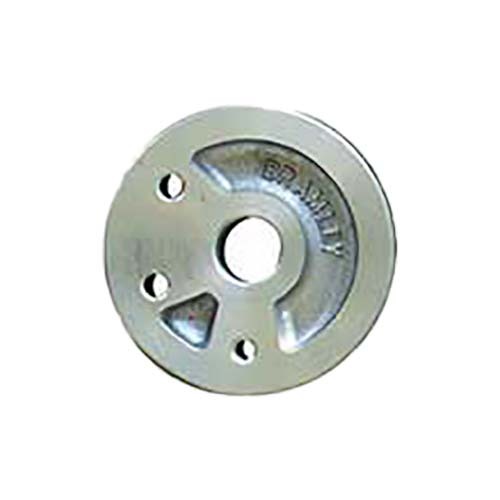

| TBFR3/4 | 3/4" (19.0 mm) | 65 mm |

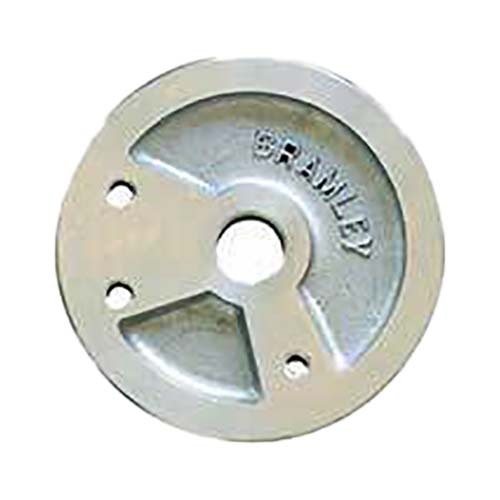

| TBFR7/8 | 7/8" (22.2 mm) | 85 mm |
| TBFR1 | 1" (25.4 mm) | 100 mm |
| TBFR1-1/8 | 1 1/8" (28.6 mm) | 115 mm |
Selecting the right option
Choose the former by tube size and shape. Confirm the tube is thin wall and suits your bender. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
