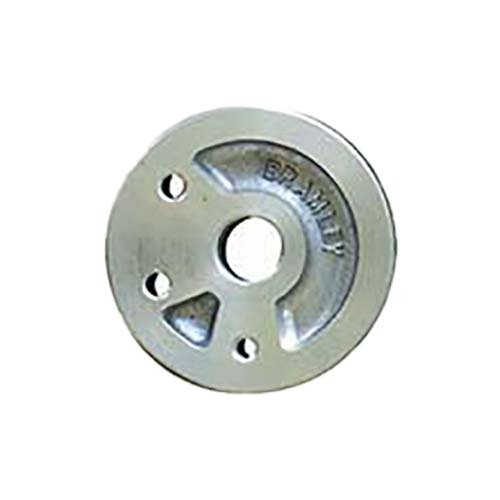

Bramley TBFS1/2 Manual Thin Wall Tube Bender Former Square 1/2"
Regular price
$345.80
Sale price
$345.80
Regular price
Inc. GST
Available
Bramley manual thin wall tube bender formers for square tube are sized from 1/2" to 1". The TBRD and TBSQ benders now use lightweight aluminium alloy formers. They are used on the Bramley TBSQ manual thin wall tube bender, and round formers fit onto the square tube bender and vice versa.
The bender is supplied with a set of five formers and a follow roller.
Where this product is used
- Bending thin wall square tube up to 90 degrees in one operation.
Features
- 5 sizes from 1/2" to 1"
- Radius of bend from 65 mm to 115 mm by size
- Square formers can also be fitted to the round tube bender
Key specifications
| Model | Tube size | Radius of bend |
|---|---|---|
| TBFS1/2 | 1/2" (12.7 mm) | 65 mm |
| TBFS5/8 | 5/8" (15.8 mm) | 85 mm |
| TBFS3/4 | 3/4" (19.0 mm) | 100 mm |
| TBFS7/8 | 7/8" (22.2 mm) | 115 mm |
| TBFS1 | 1" (25.4 mm) | 115 mm |
Selecting the right option
Choose the former by tube size and shape. Confirm the tube is thin wall and suits your bender. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
