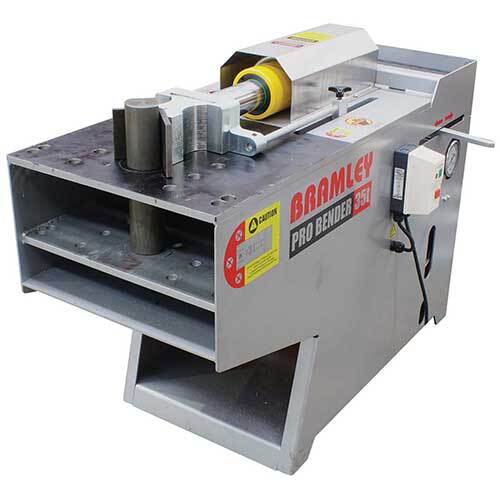

Bramley Pro Bender 35T Hydraulic Bending Machine
Available
The Bramley Pro Bender 35T is a robust powered hydraulic bender with a rated capacity of 35 tonne, rated at 415V, 3HP, three phase. The standard machine is supplied with an attachment for bending flat bar up to 100 x 12 mm, or round and square bar up to 25 mm.
Optional accessories are available for bending larger flat bar sizes, pipe bending, reinforcing rod and straightening bars. This multi-function approach lets one machine meet a wide range of metal forming needs.
Where this product is used
- Bending flat, round and square bar, and with attachments pipe, tube and reinforcing bar.
Features
- 35 tonne rated capacity, 415V three phase, 3HP
- Standard attachment bends flat bar to 100 x 12 mm and round or square bar to 25 mm
- Optional accessories for larger flat bar, pipe bending, reinforcing rod and straightening
- Multi-function: one machine for a range of bending jobs
Key specifications
| Specification | Detail |
|---|---|
| Model | Pro Bender 35T |
| Force | 35 tonne |
| Supply | 415V, three phase, 3HP |
| Standard attachment | Flat bar to 100 x 12 mm; round or square bar to 25 mm |
Selecting the right option
Check the largest bar section you bend against the standard capacity, then choose attachments for anything larger or for pipe, tube, notching or rebar. Contact AIMS to confirm which attachments suit the machine and your material.
Related products
Attachments: large V bending, pipe bending, round tube bending, square tube bending, pipe and tube notching and rebar bending and straightening.
