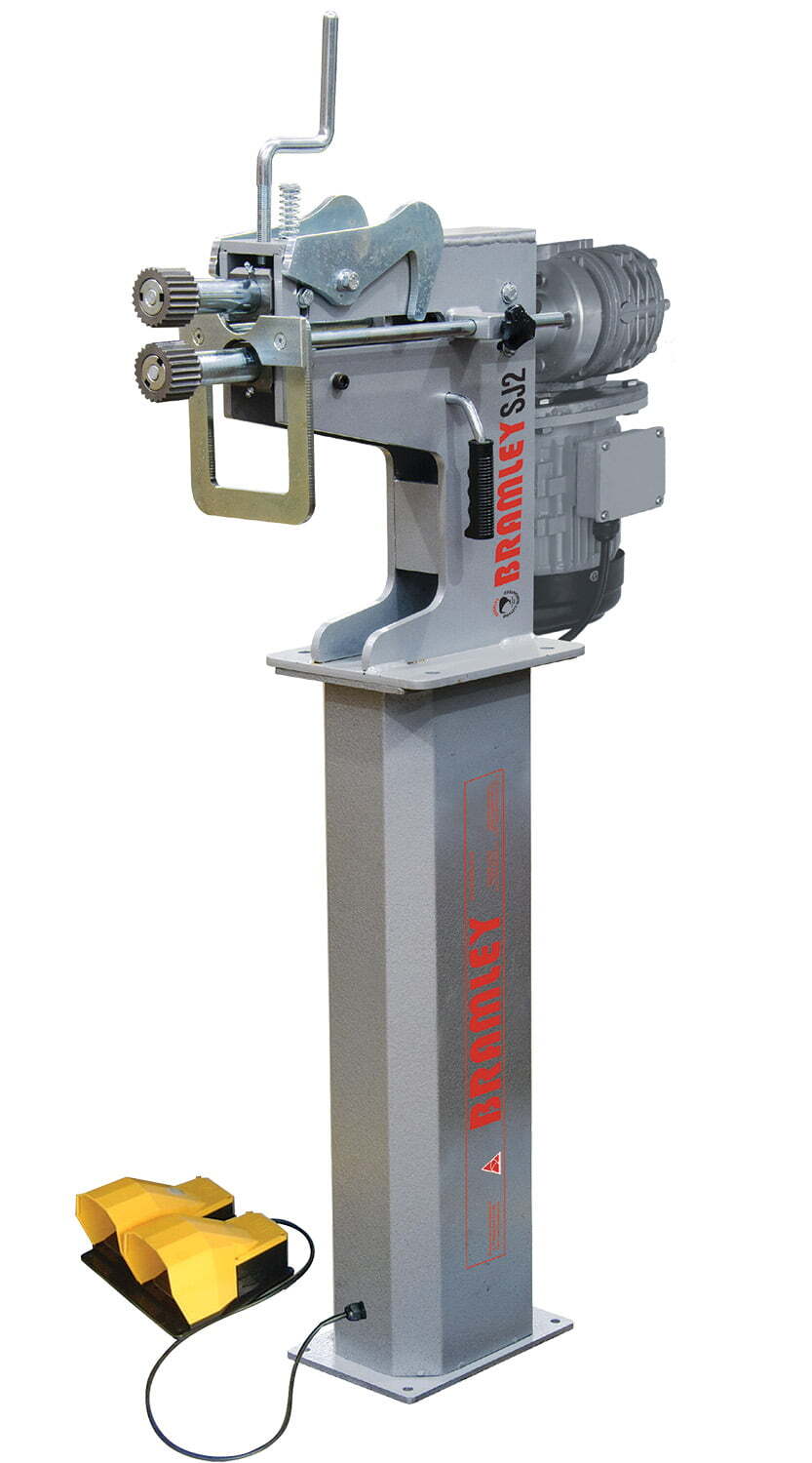

Bramley SJ2-M Powered Sheetmetal Swage, Jenny & Wiring Machine 16 swg
Available
The Bramley SJ2-M is a powered sheetmetal swage, jenny and wiring machine with a 16 swg (1.6 mm) capacity in mild steel. It has 380 mm of usable throat and a guide plate depth of up to 275 mm, and has top and bottom wheels for forming operations and separate crimping rollers fitted directly to the shafts. Standard accessories include swage and wiring rollers in 2, 4, 7 and 10 mm.
It is driven by a 750 W (1HP) three phase motor through a reduction gearbox, with the rollers running at 38 rpm and interlocked forward and reverse foot switches.
Where this product is used
- Swaging, jennying and wiring sheet metal edges.
Features
- 16 swg (1.6 mm) capacity
- 380 mm of usable throat, guide plate depth up to 275 mm
- Heavy swaging up to 1.6 mm mild steel with the hook plates down; up to 1.2 mm at maximum reach with the hook plates up
- 750 W (1HP) three phase motor with interlocked forward and reverse foot switches
- Swage and wiring rollers in 2, 4, 7 and 10 mm as standard accessories
Key specifications
| Specification | Detail |
|---|---|
| Model | SJ2-M |
| Capacity | 16 swg (1.6 mm) |
| Usable throat | 380 mm; guide plate depth up to 275 mm |
| Heavy swaging | Up to 1.6 mm mild steel (hook plates down) |
| Standard swaging | Up to 1.2 mm mild steel at maximum reach (hook plates up) |
| Drive | 750 W (1HP) three phase motor, 38 rpm |
Selecting the right option
Choose the powered SJ2-M for repeat or long runs and the manual SJ2 for bench use without a power connection. Check the sheet thickness: 1.6 mm mild steel is the heavy swaging capacity and 1.2 mm applies at maximum reach. See the Bramley SJ2. Contact AIMS if you are unsure which Bramley machine or attachment suits your material.
Related products
See the Bramley curving rolls and the Bramley 2F box and pan folder.
