Finer Power BS Taper Lock Sprocket, 06B / 17
Regular price
$22.84
Sale price
$22.84
Regular price
Inc. GST
Available

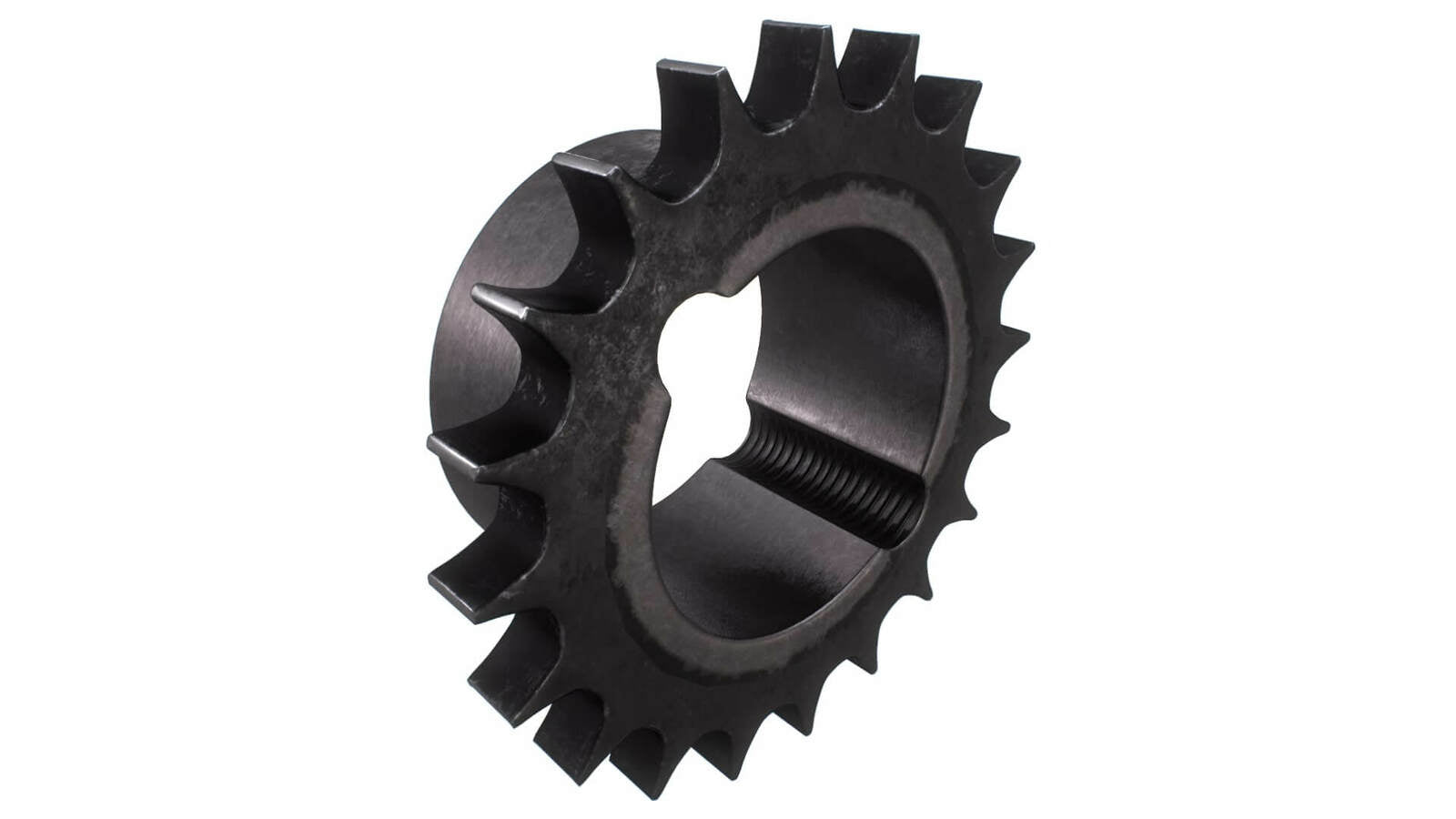

These steel simplex taper lock sprockets suit BS (ISO 606 B series) roller chain. The range covers 154 models across 7 chain sizes, 06B, 08B, 10B, 12B, 16B, 20B and 24B, from 12 to 114 teeth.
Each taper lock sprocket has a tapered bore that takes a taper lock bush. The bush is machined to your shaft size and keyway, and locks the sprocket on the shaft when its screws are tightened. Pitch diameter, outside diameter, hub diameter, total width and bush series come in each model where available.
Where this product is used
- Roller chain drives using BS chain
- Replacement sprockets for existing taper lock chain drives
- Conveyors and general machinery drives
- Drives where the sprocket needs to be removed and refitted
Features
- Taper lock hub, fitted with a separately sold taper lock bush
- Simplex sprocket for BS (ISO 606 B series) roller chain
- 7 chain sizes, 12 to 114 teeth
- Steel construction
- Induction hardened teeth
- Bush series for each model, from 1008 to 3030
- Pitch diameter, outside diameter, hub diameter and width where available
Key specifications
| Specification | Detail |
|---|---|
| Product | Taper lock sprocket |
| Standard | BS (ISO 606 B series) |
| Strands | Simplex |
| Material | Steel |
| Tooth hardening | Induction hardened |
| Chain sizes | 06B to 24B (7 sizes) |
| Number of teeth | 12 to 114 |
| Bore | Taper lock bush, sold separately |
| Bush series | 1008, 1108, 1210, 1215, 1610, 1615, 2012, 2517, 3020, 3030 |
Sizes available
| Chain | Pitch | Strands | Teeth | Bush series | Models |
|---|---|---|---|---|---|
| BS 06B | 3/8" (9.53mm) | Simplex | 17 to 114 | 1008, 1108, 1210, 1215 | 20 |
| BS 08B | 1/2" (12.7mm) | Simplex | 14 to 114 | 1008, 1108, 1210, 1610, 2012, 2517 | 27 |
| BS 10B | 5/8" (15.88mm) | Simplex | 12 to 114 | 1008, 1108, 1210, 1610, 2012, 2517 | 31 |
| BS 12B | 3/4" (19.05mm) | Simplex | 12 to 114 | 1210, 1610, 2012, 2517, 3020 | 29 |
| BS 16B | 1" (25.4mm) | Simplex | 12 to 114 | 1610, 1615, 2012, 2517, 3020, 3030 | 28 |
| BS 20B | 1-1/4" (31.75mm) | Simplex | 13 to 38 | 2517, 3020 | 17 |
| BS 24B | 1-1/2" (38.1mm) | Simplex | 19 to 23 | 3020 | 2 |
Choosing the right option
Choose the sprocket by chain size and number of teeth. The chain size must match your chain, and the tooth count sets the speed ratio. Then choose a taper lock bush of the series shown for that model, bored to your shaft diameter with a keyway. Check that the bush series covers your shaft diameter.
Dimensions are for reference.
| Option | Part number | SKU |
|---|---|---|
| 06B / 17 | 06B-1-17TL | A0061205 |
| 06B / 18 | 06B-1-18TL | A0061206 |
| 06B / 19 | 06B-1-19TL | A0061207 |
| 06B / 20 | 06B-1-20TL | A0061208 |
| 06B / 21 | 06B-1-21TL | A0061209 |
| 06B / 22 | 06B-1-22TL | A0061210 |
| 06B / 23 | 06B-1-23TL | A0061211 |
| 06B / 24 | 06B-1-24TL | A0061212 |
| 06B / 25 | 06B-1-25TL | A0061213 |
| 06B / 26 | 06B-1-26TL | A0061214 |
| 06B / 27 | 06B-1-27TL | A0061215 |
| 06B / 28 | 06B-1-28TL | A0061216 |
| 06B / 29 | 06B-1-29TL | A0061217 |
| 06B / 30 | 06B-1-30TL | A0061218 |
| 06B / 38 | 06B-1-38TL | A0061219 |
| 06B / 45 | 06B-1-45TL | A0061220 |
| 06B / 57 | 06B-1-57TL | A0061221 |
| 06B / 76 | 06B-1-76TL | A0061222 |
| 06B / 95 | 06B-1-95TL | A0061224 |
| 06B / 114 | 06B-1-114TL | A0061204 |
| 08B / 14 | 08B-1-14TL | A0061247 |
| 08B / 15 | 08B-1-15TL | A0061248 |
| 08B / 16 | 08B-1-16TL | A0061249 |
| 08B / 17 | 08B-1-17TL | A0061250 |
| 08B / 18 | 08B-1-18TL | A0061251 |
| 08B / 19 | 08B-1-19TL | A0061252 |
| 08B / 20 | 08B-1-20TL | A0061253 |
| 08B / 21 | 08B-1-21TL | A0061254 |
| 08B / 22 | 08B-1-22TL | A0061255 |
| 08B / 23 | 08B-1-23TL | A0061256 |
| 08B / 24 | 08B-1-24TL | A0061257 |
| 08B / 25 | 08B-1-25TL | A0061258 |
| 08B / 26 | 08B-1-26TL | A0061259 |
| 08B / 27 | 08B-1-27TL | A0061260 |
| 08B / 28 | 08B-1-28TL | A0061261 |
| 08B / 29 | 08B-1-29TL | A0061262 |
| 08B / 30 | 08B-1-30TL | A0061263 |
| 08B / 32 | 08B-1-32TL | A0061264 |
| 08B / 35 | 08B-1-35TL | A0061265 |
| 08B / 38 | 08B-1-38TL | A0061266 |
| 08B / 45 | 08B-1-45TL | A0061267 |
| 08B / 48 | 08B-1-48TL | A0061268 |
| 08B / 50 | 08B-1-50TL | A0061269 |
| 08B / 57 | 08B-1-57TL | A0061270 |
| 08B / 76 | 08B-1-76TL | A0061271 |
| 08B / 95 | 08B-1-95TL | A0061272 |
| 08B / 114 | 08B-1-114TL | A0061246 |
| 10B / 12 | 10B-1-12TL | A0061302 |
| 10B / 13 | 10B-1-13TL | A0061303 |
| 10B / 14 | 10B-1-14TL | A0061304 |
| 10B / 15 | 10B-1-15TL | A0061305 |
| 10B / 16 | 10B-1-16TL | A0061306 |
| 10B / 17 | 10B-1-17TL | A0061307 |
| 10B / 18 | 10B-1-18TL | A0061308 |
| 10B / 19 | 10B-1-19TL | A0061309 |
| 10B / 20 | 10B-1-20TL | A0061310 |
| 10B / 21 | 10B-1-21TL | A0061311 |
| 10B / 22 | 10B-1-22TL | A0061312 |
| 10B / 23 | 10B-1-23TL | A0061313 |
| 10B / 24 | 10B-1-24TL | A0061314 |
| 10B / 25 | 10B-1-25TL | A0061315 |
| 10B / 26 | 10B-1-26TL | A0061316 |
| 10B / 27 | 10B-1-27TL | A0061317 |
| 10B / 28 | 10B-1-28TL | A0061318 |
| 10B / 29 | 10B-1-29TL | A0061319 |
| 10B / 30 | 10B-1-30TL | A0061320 |
| 10B / 32 | 10B-1-32TL | A0061321 |
| 10B / 33 | 10B-1-33TL | A0061322 |
| 10B / 35 | 10B-1-35TL | A0061323 |
| 10B / 36 | 10B-1-36TL | A0061324 |
| 10B / 38 | 10B-1-38TL | A0061325 |
| 10B / 40 | 10B-1-40TL | A0061326 |
| 10B / 45 | 10B-1-45TL | A0061327 |
| 10B / 48 | 10B-1-48TL | A0061328 |
| 10B / 57 | 10B-1-57TL | A0061329 |
| 10B / 76 | 10B-1-76TL | A0061330 |
| 10B / 95 | 10B-1-95TL | A0061332 |
| 10B / 114 | 10B-1-114TL | A0061301 |
| 12B / 12 | 12B-1-12TL | A0061354 |
| 12B / 13 | 12B-1-13TL | A0061355 |
| 12B / 14 | 12B-1-14TL | A0061356 |
| 12B / 15 | 12B-1-15TL | A0061357 |
| 12B / 16 | 12B-1-16TL | A0061358 |
| 12B / 17 | 12B-1-17TL | A0061359 |
| 12B / 18 | 12B-1-18TL | A0061360 |
| 12B / 19 | 12B-1-19TL | A0061361 |
| 12B / 20 | 12B-1-20TL | A0061362 |
| 12B / 21 | 12B-1-21TL | A0061363 |
| 12B / 22 | 12B-1-22TL | A0061364 |
| 12B / 23 | 12B-1-23TL | A0061365 |
| 12B / 24 | 12B-1-24TL | A0061366 |
| 12B / 25 | 12B-1-25TL | A0061367 |
| 12B / 26 | 12B-1-26TL | A0061368 |
| 12B / 27 | 12B-1-27TL | A0061369 |
| 12B / 28 | 12B-1-28TL | A0061370 |
| 12B / 29 | 12B-1-29TL | A0061371 |
| 12B / 30 | 12B-1-30TL | A0061372 |
| 12B / 32 | 12B-1-32TL | A0061373 |
| 12B / 34 | 12B-1-34TL | A0061374 |
| 12B / 35 | 12B-1-35TL | A0061375 |
| 12B / 36 | 12B-1-36TL | A0061376 |
| 12B / 38 | 12B-1-38TL | A0061377 |
| 12B / 45 | 12B-1-45TL | A0061378 |
| 12B / 57 | 12B-1-57TL | A0061380 |
| 12B / 76 | 12B-1-76TL | A0061382 |
| 12B / 95 | 12B-1-95TL | A0061384 |
| 12B / 114 | 12B-1-114TL | A0061353 |
| 16B / 12 | 16B-1-12TL | A0061427 |
| 16B / 13 | 16B-1-13TL | A0061428 |
| 16B / 14 | 16B-1-14TL | A0061429 |
| 16B / 15 | 16B-1-15TL | A0061430 |
| 16B / 16 | 16B-1-16TL | A0061431 |
| 16B / 17 | 16B-1-17TL | A0061432 |
| 16B / 18 | 16B-1-18TL | A0061433 |
| 16B / 19 | 16B-1-19TL | A0061434 |
| 16B / 20 | 16B-1-20TL | A0061435 |
| 16B / 21 | 16B-1-21TL | A0061436 |
| 16B / 22 | 16B-1-22TL | A0061437 |
| 16B / 23 | 16B-1-23TL | A0061438 |
| 16B / 24 | 16B-1-24TL | A0061439 |
| 16B / 25 | 16B-1-25TL | A0061440 |
| 16B / 26 | 16B-1-26TL | A0061441 |
| 16B / 27 | 16B-1-27TL | A0061442 |
| 16B / 28 | 16B-1-28TL | A0061443 |
| 16B / 29 | 16B-1-29TL | A0061444 |
| 16B / 30 | 16B-1-30TL | A0061445 |
| 16B / 32 | 16B-1-32TL | A0061446 |
| 16B / 33 | 16B-1-33TL | A0061447 |
| 16B / 35 | 16B-1-35TL | A0061448 |
| 16B / 38 | 16B-1-38TL | A0061449 |
| 16B / 45 | 16B-1-45TL | A0061450 |
| 16B / 57 | 16B-1-57TL | A0061452 |
| 16B / 76 | 16B-1-76TL | A0061454 |
| 16B / 95 | 16B-1-95TL | A0061455 |
| 16B / 114 | 16B-1-114TL | A0061426 |
| 20B / 13 | 20B-1-13TL | A0061184 |
| 20B / 14 | 20B-1-14TL | A0061185 |
| 20B / 15 | 20B-1-15TL | A0061186 |
| 20B / 16 | 20B-1-16TL | A0061187 |
| 20B / 17 | 20B-1-17TL | A0061188 |
| 20B / 18 | 20B-1-18TL | A0061189 |
| 20B / 19 | 20B-1-19TL | A0061190 |
| 20B / 20 | 20B-1-20TL | A0061191 |
| 20B / 21 | 20B-1-21TL | A0061192 |
| 20B / 22 | 20B-1-22TL | A0061193 |
| 20B / 23 | 20B-1-23TL | A0061194 |
| 20B / 24 | 20B-1-24TL | A0061195 |
| 20B / 25 | 20B-1-25TL | A0061196 |
| 20B / 26 | 20B-1-26TL | A0061197 |
| 20B / 27 | 20B-1-27TL | A0061198 |
| 20B / 30 | 20B-1-30TL | A0061199 |
| 20B / 38 | 20B-1-38TL | A0061200 |
| 24B / 19 | 24B-1-19TL | A0061201 |
| 24B / 23 | 24B-1-23TL | A0061202 |
Product Highlights
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
BS Taper Lock Sprocket, Simplex, Steel, 06B to 24B: 06B / 17
SKU: A0061205 | Model: 06B-1-17TL
BS 06B simplex taper lock sprocket, steel, 17 teeth, 3/8" pitch, 1008 bush, 51.84mm pitch diameter, 55.5mm outside diameter.
