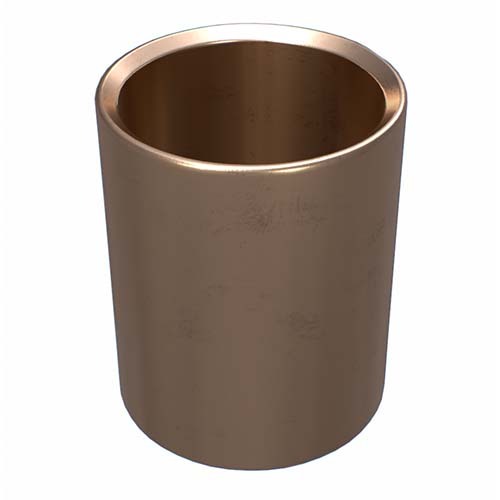

Finer Power plain Bronze Bush, 8 / 10 / 10

These are plain cylindrical bronze bushes in 51 metric sizes. Inside diameters run from 8 to 50mm, outside diameters from 10 to 60mm and lengths from 10 to 100mm.

A plain bronze bush is a bearing surface or wear liner that is pressed into a housing, so the shaft or pin turns, slides or pivots inside it. It is a common replacement part where an original bush has worn.

Where this product is used

• Plain bearings for shafts and pins that turn, slide or pivot
• Wear liners in pivots, linkages and hinge points
• Bearing surfaces for rollers, idlers and sheaves running on a fixed pin
• Replacing worn bushes in machinery and equipment

Features

• Plain cylindrical bush made from bronze
• 51 metric sizes, inside diameter 8 to 50mm
• Inside diameter (A), outside diameter (B) and length (L) for every part number
• Approximate mass for most sizes
• Bronze bar is also available for machining your own bushes

Key specifications

Sizes available

Choosing the right option

Choose the bush from the shaft or pin diameter, the housing bore and the length of the bearing seat. Inside diameter (A) is the bore the shaft runs in, and outside diameter (B) is the diameter that fits the housing.

The imperial bronze bushes are under Bronze Bush, Plain, Imperial, 5/16 to 2-1/2" Bore. For bronze bar to machine your own bushes, see Bronze Hollow Bar, Imperial, 1-1/2 to 2-1/2" OD, 12" Lengths and Bronze Solid Bar, Imperial, 1/2 to 2" Diameter, 12" Lengths.

Bronze bushes are normally pressed into the housing. Check the fit in the housing and the running clearance on the shaft for your application, and ream or machine the bore to size if a closer fit is needed.
