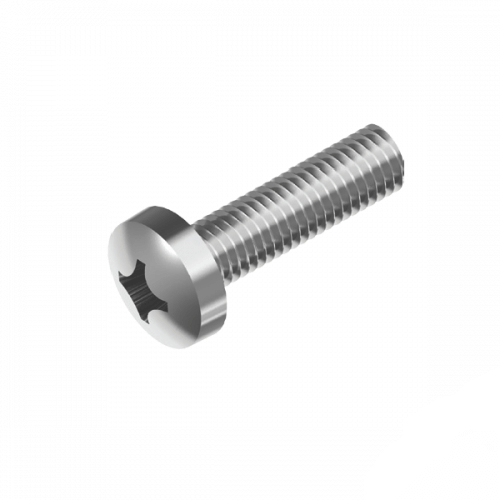

1/4" x 1-1/2" BSW Phillips Pan Head Machine Screw, 304 Stainless - PPSA214BSWX112
The price shown is for the box.
Available
The BSW Phillips Pan Head (Machine) Screw, 304 Stainless Steel is available in 38 sizes (1/8" to 5/16") and is a machine-thread screw with a rounded pan head and a Phillips cross recess. It screws into a nut or tapped hole and is the standard choice for general light assembly.
Made from 304 (A2) stainless steel, a standard austenitic grade with good everyday corrosion resistance. It is a sound choice away from the coast; in chloride-exposed settings, step up to 316 (A4). BSW (British Standard Whitworth) is an older inch-based thread found on older machinery and imported equipment. It is not interchangeable with UNC or metric threads.
The range runs to 38 variants, covering sizes 1/8" to 5/16" and lengths 1/4" to 4". Every size comes in packs of 100.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Appliance and equipment assembly
- Light machinery covers and panels
- Small sizes for enclosures, instruments and light fittings
- Electrical enclosures, switchboards and fittings
- Repair and maintenance of older machinery fitted with Whitworth threads
- Fresh water and general outdoor fittings
Features
- Phillips cross recess for common screwdrivers
- Pan head sits proud with a rounded, clean profile
- Choice of 38 sizes, 1/8" to 5/16"
- Pack quantities to suit trade and bulk buying: packs of 100
- Lengths from 1/4" to 4"
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
Key specifications
| Specification | Detail |
|---|---|
| Product | BSW Phillips Pan Head (Machine) Screw |
| Type | Machine-thread screw with a rounded pan head and a Phillips cross recess |
| Material | A2 (304) stainless steel |
| Number of variants | 38 |
| Head type | Pan |
| Lengths available | 1/4" to 4" |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Key features | Pan head sits proud with a rounded, clean profile; Phillips cross recess for common screwdrivers |
| Environment | Indoor, fresh water and general outdoor use |
| Drive | Phillips |
| Sizes available | 1/8" to 5/16" |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Thread system | BSW (British Standard Whitworth) |
| Supplied in packs of | 100 |
Selecting the right option
Use a correctly sized Phillips driver. Stainless is softer than hardened steel, so avoid power drivers at speed. A drop of anti-seize on the thread helps prevent galling. Near the coast, around pools or in marine settings, use the A4 (316) version instead: BSW Phillips Pan Head (Machine) Screw - 316 Stainless Steel.
Related products
Other versions in this range: Metric Phillips Pan Head (Machine) Screw - 316 Stainless Steel and Metric Phillips Pan Head (Machine) Screw - 304 Stainless Steel. Matching products: BSW Standard Hex Nut - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
BSW Phillips Pan Head (Machine) Screw - 304 Stainless Steel: 1/4" / 1 1/2"
SKU: A0073336 | Model: PPSA214BSWX112
PPSA214BSWX112: 1/4" x 1-1/2" BSW Phillips pan head machine screw, 304 Stainless Steel. Sold in a box of 100.
