BT Weld EX-30 Workshop Fume Extraction Unit 415 V 3 kW | 681040
Available

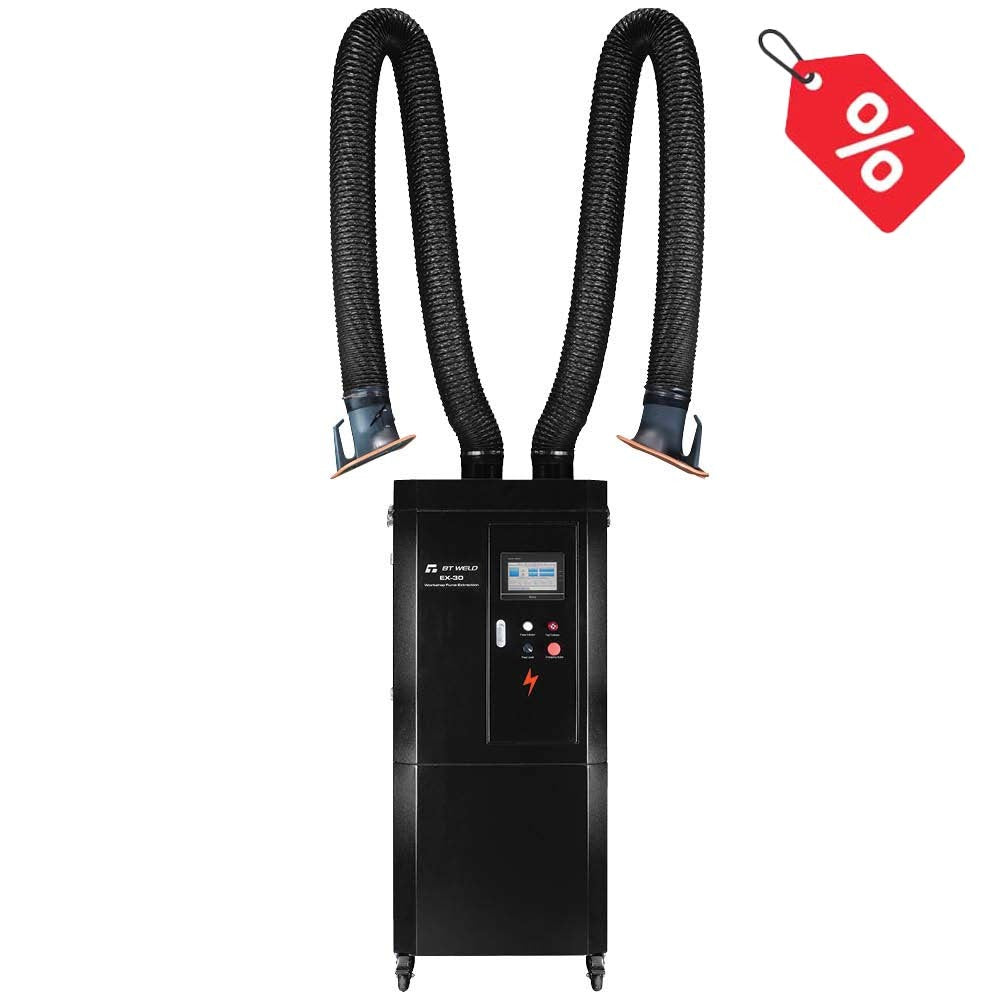

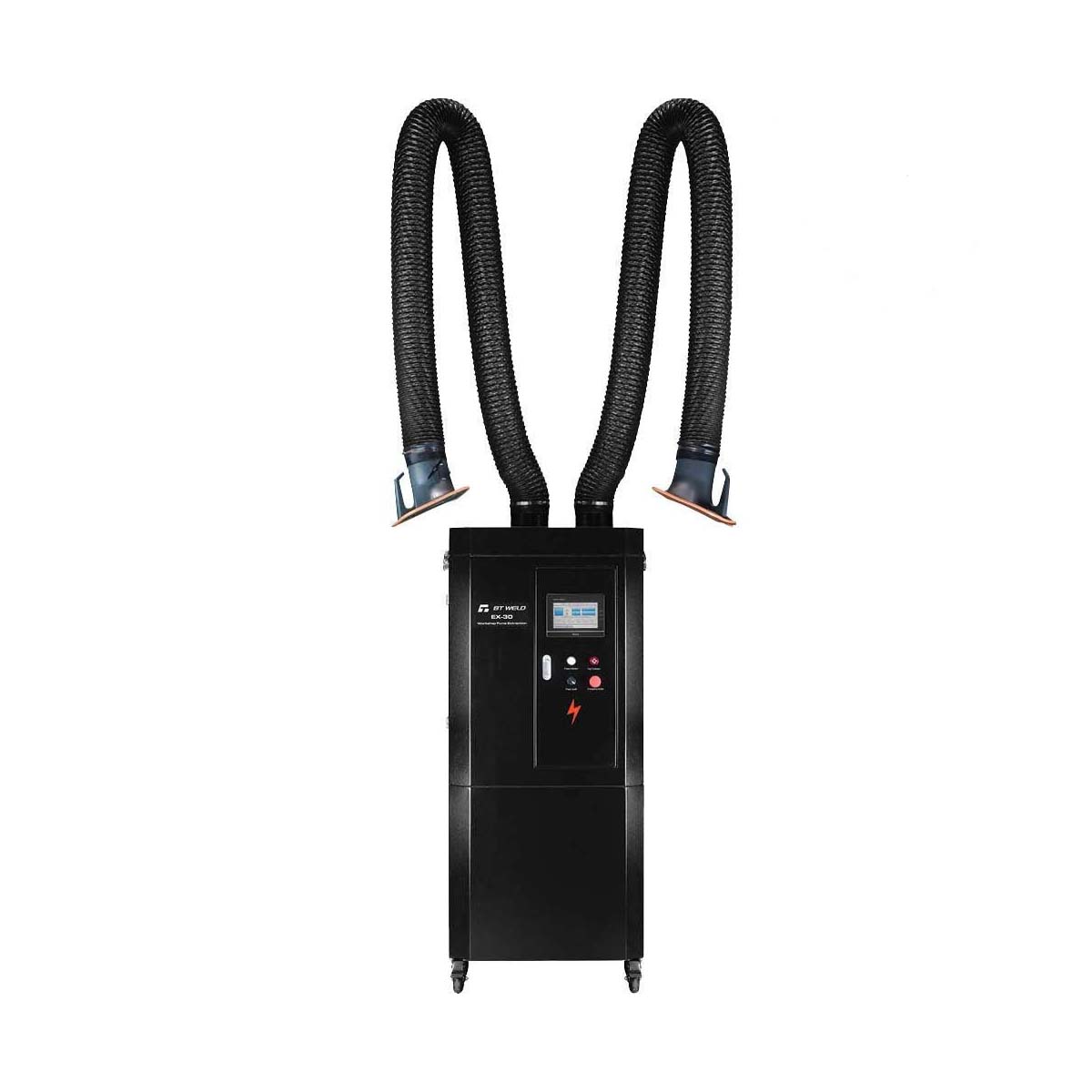

The BT Weld EX-30 is a high-capacity 415 V three-phase workshop fume extractor for heavy-duty use. It delivers about 4,200 m³/h of airflow, and a 360 degree rotating arm positions the intake at the source of the fume.
A 7 inch colour touchscreen controls extraction settings, and automatic reverse blowing cleans the filter. Filtration has three stages, including an aluminium micro-mesh pre-filter.
Where this product is used
- Heavy-duty welding fume extraction
- Fabrication workshops
- Multiple welding stations
Features
- 4,200 ± 100 m³/h air volume
- 3 kW industrial motor
- 7 inch colour touchscreen
- Automatic reverse blowing filter cleaning
- 360 degree rotating arm
- Three-stage filtration with aluminium micro-mesh pre-filter
- Filter efficiency 99.97% (manufacturer-stated)
Key specifications
| Specification | Detail |
|---|---|
| Type | Workshop fume extraction unit |
| Power supply | 415 V, 50 Hz, three phase |
| Motor power | 3 kW |
| Rated current | 4.3 A |
| Air volume | 4,200 ± 100 m³/h |
| Air volume at suction arm | 3,200 m³/h |
| Flexible arm | Ø150 x 3000 mm |
| Filter stages | 3 |
| Filter surface | 20 m² |
| Filter efficiency (manufacturer-stated) | 99.97%, MERV17 |
| Noise level | 85 dB or below |
| Dimensions | 700 x 760 x 1460 mm |
| Weight | 200 ± 10 kg |
| Part number | 681040 |
Selecting the right option
Choose the unit to suit the number of stations and the volume of fume you produce. This unit needs a 415 V three-phase supply. Fume extraction does not replace the respiratory protection your site or procedure requires. If you are unsure which unit suits, contact AIMS.
