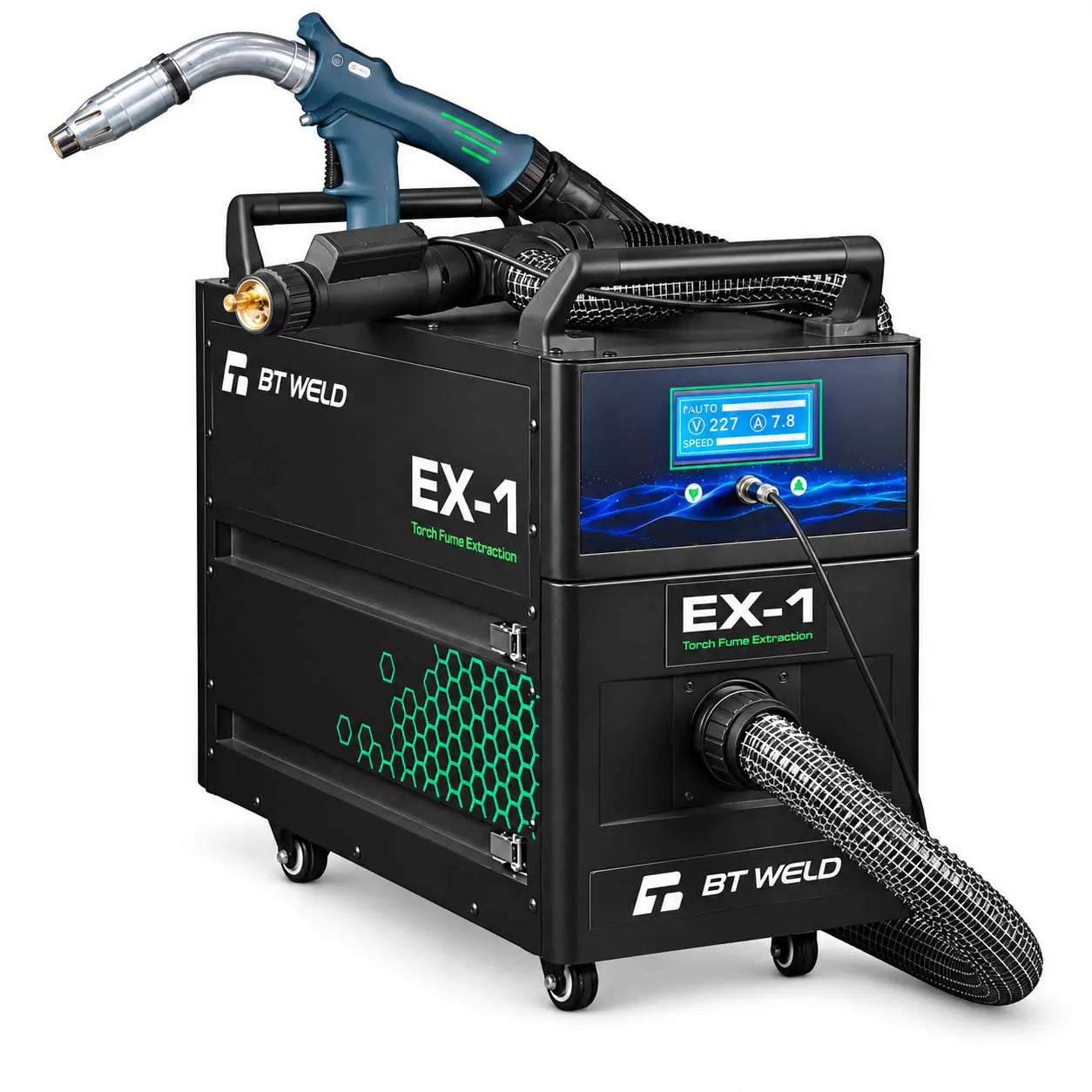

BT Weld EXT-1 Fume Extraction Unit 240V, 24 Style Torch 4 m
Available
Capturing welding fume at the nozzle keeps it out of the operator's breathing zone rather than letting it drift through the workshop. The BT Weld EXT-1 is a 240V portable welding fume extractor that pulls 200 m³/h through a replaceable PET cartridge, filtering to 0.3 µm at 99.90%. This package supplies the unit together with a matched fume extraction MIG torch, so the extraction point travels with the arc and no separate torch purchase is needed.
At a glance
| Air volume | 200 ± 10 m³/h |
|---|---|
| Filtration efficiency | 99.90% down to 0.3 µm |
| Motor power | 1.2 kW |
| Power supply | 240V / 50Hz, 10A plug |
| Filter | PET cartridge, 6 m² area, replaceable (681011) |
| Torch options | 24 Style 250A, 36 Style 340A, 501 Style 500A |
| Unit dimensions | 600 x 285 x 527 mm |
| Warranty | 2 year limited |
- Extraction at the torch nozzle keeps fume out of the operator's breathing zone
- Adjustable air volume dials in suction without disturbing shielding gas coverage
- Replaceable cartridge filter and 360° swivel castors keep day-to-day running simple
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
BT Weld EXT-1 Torch Fume Extraction Unit with MIG Torch: 24 Style / 4 m
SKU: A0212939 | Model: 681010.24.4
This is the torch style 24 Style, lead length 4 m option of the BT Weld EXT-1 Torch Fume Extraction Unit with MIG Torch. Key details for this option: filter material PET cartridge, replaceable (681011), dust outlet diameter 50mm.
