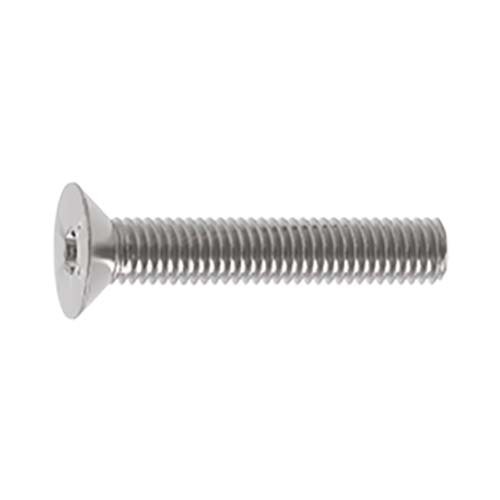

Bumax SCB8PCM100040 M10 x 40mm Countersunk Socket Screw, Stainless Steel

The Bumax countersunk socket screw has a countersunk head with a hex socket, driven with a hex key, so the head can sit flush in a countersunk hole, and a metric thread. It is listed as stainless steel (manufacturer-stated). This page lists 54 items: M3 to M16, in lengths of 6 to 100mm.

ISO 10642 is named for these screws (manufacturer-stated).

No strength figure, stainless grade or corrosion data is published for this product; contact us if you need these confirmed before ordering.

Every item is supplied as a single item.

Where this product is used

• Fastened into a tapped or nutted countersunk hole where the head should sit flush with the surface
• Replacing a countersunk socket screw of the same thread form, diameter, pitch and length
• Equipment and panels where a countersunk socket screw is called for

Features

• 54 items: M3 to M16, lengths 6 to 100mm
• Metric thread, pitch shown for each size
• Stainless steel
• Countersunk head with hex socket
• ISO 10642 named for this product (manufacturer-stated)
• Supplied as a single item

Common specifications

Thread pitch by diameter

Pitch is the coarse pitch for each size from the thread table (manufacturer-stated).

Key specifications

Selecting the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Metric sizes are the nominal diameter in millimetres; compare the pitch with your nut or tapped hole. On a countersunk screw the length is measured overall, including the head, because the head sits in the countersink. The hex key size is not published for these items, so check it against the screw you have.
