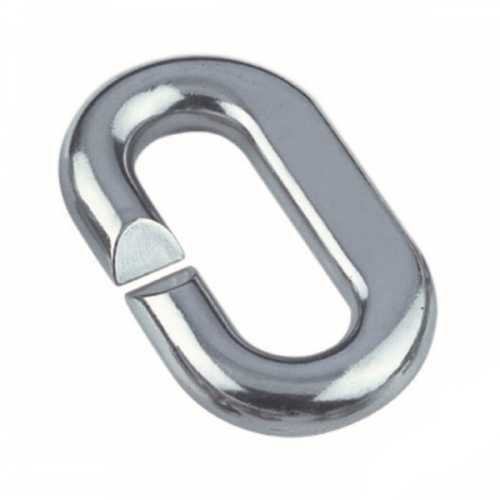

M5 C Link, 316 Stainless Steel - CLIA4M5

The C Link Chain Link, 316 Stainless Steel is available in 5 sizes (M5 to M12) and is a C-shaped connecting link that closes with a threaded sleeve. It joins chain, rope and fittings.

A4 (316) stainless steel contains molybdenum (about 2 to 3 per cent), which improves its resistance to chlorides. It is the grade normally chosen for coastal, pool, marine and food-processing settings, and it costs more than A2 (304).

This listing has 5 variants covering sizes M5 to M12. Variants are supplied in packs of 5 to 10, depending on size.

Use stainless washers and nuts with stainless fasteners, so the whole joint is made of the same material.

Where this product is used

• Marine rigging, boat and yacht fittings
• Architectural work near the coast
• Coastal and architectural fittings
• Coastal and marine installations
• Balustrade and wire fencing

Features

• Supplied in packs of 5 to 10
• C-shaped link closed with a threaded sleeve
• Joins chain, rope and fittings
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Choice of 5 sizes, M5 to M12

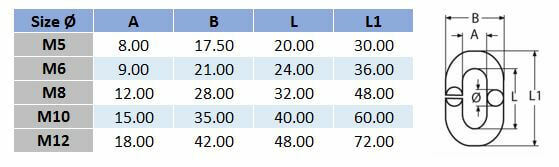

Key specifications

Selecting the right option

Choose the size by the fittings you need to connect.

Important

Do not use this product to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
