Dixon Cam & Groove Type F Adaptor ALDC075F | AIMS Industrial

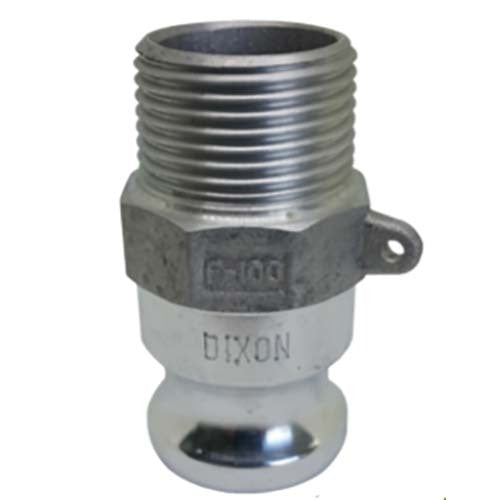

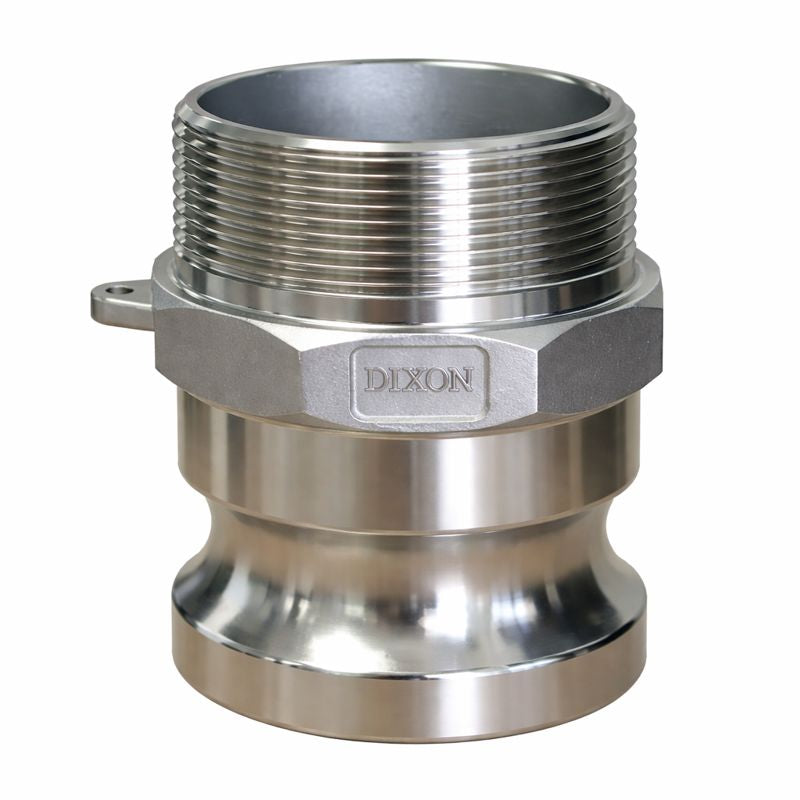

Dixon Cam & Groove Type F Adaptor x Male BSP Aluminium Die Cast

Use

• Designed for use with liquids

How it works

• The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.

Note

• Couplings made using the die cast process must NOT be welded.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
• Pressure rating is based on the seal of the mating part

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.

• Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
• Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.
