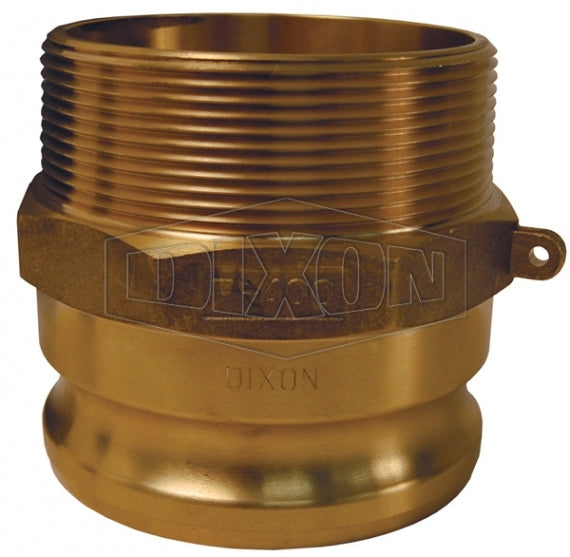

Dixon Cam & Groove Type F Adaptor x Male BSP Bronze Sand Cast

Use

• Designed for use with liquids

How it works

• The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.

Note

• Although Bronze Sand Cast Couplings may be welded using the appropriate equipment and compatible filler material; any modifications to the product will void your warranty. Welding the couplings changes the integrity of the coupling therefore will not accept any responsibility for modified couplings.

Safety notes

• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
• Pressure rating is based on the seal of the mating part

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.

• Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
• Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.

Applications

• The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.
