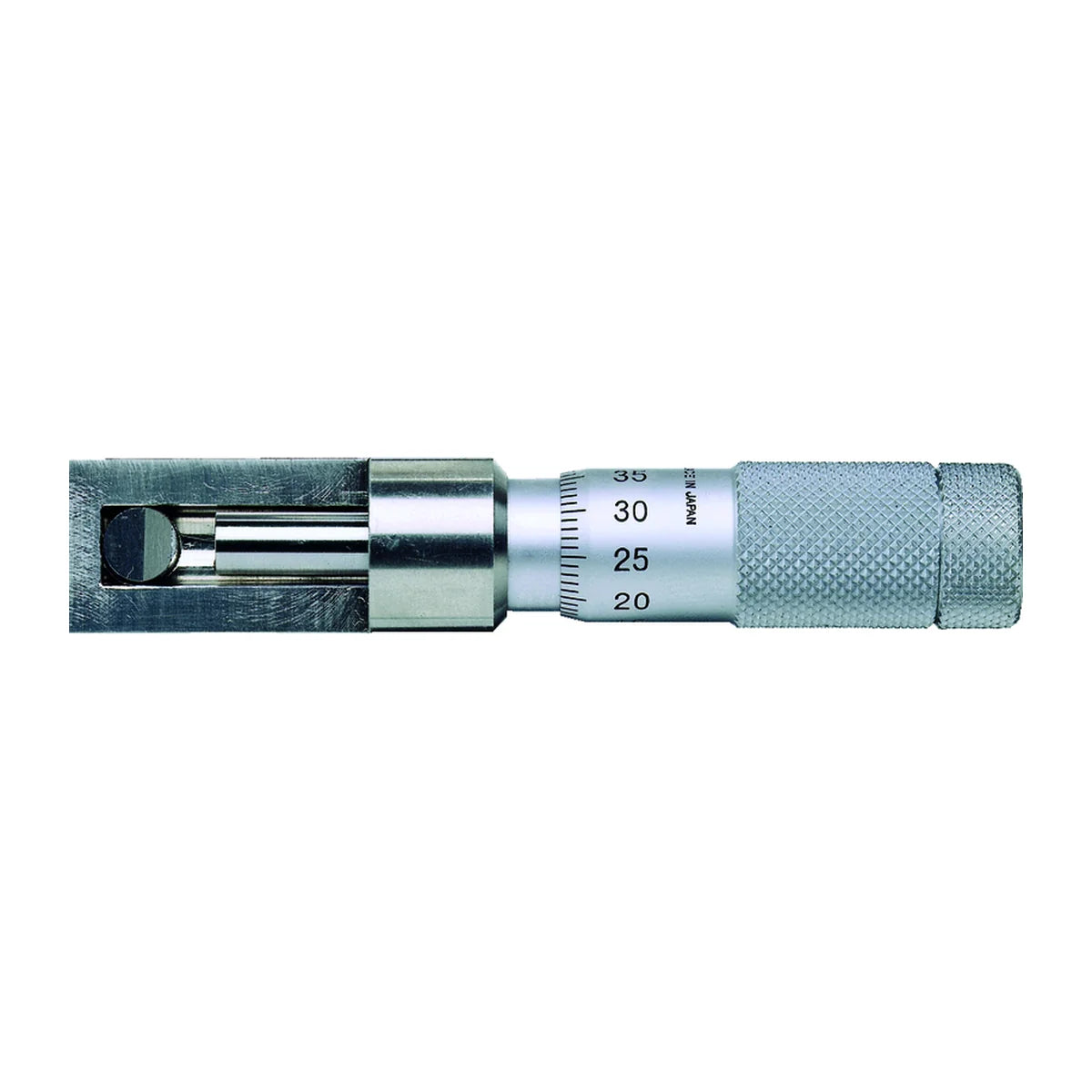

Mitutoyo Can Seam Micrometer 0-13mm, Aluminium Cans

The Mitutoyo Series 147 can seam micrometer measures the width, height and depth of can seams. It is an analog (non-digital) micrometer that reads 0 to 13mm with a graduation of 0.01mm and an accuracy of ±3µm. There are two versions here: one for aluminium cans and one for steel cans.

Graduation is the smallest mark on the thimble, and accuracy is a separate figure. Pick the version that matches the cans you run. Mitutoyo also makes a version for sprayer cans. Each micrometer comes with a box, a spanner and a hex wrench.

Where this product is used

• Checking seam width, height and depth on aluminium cans

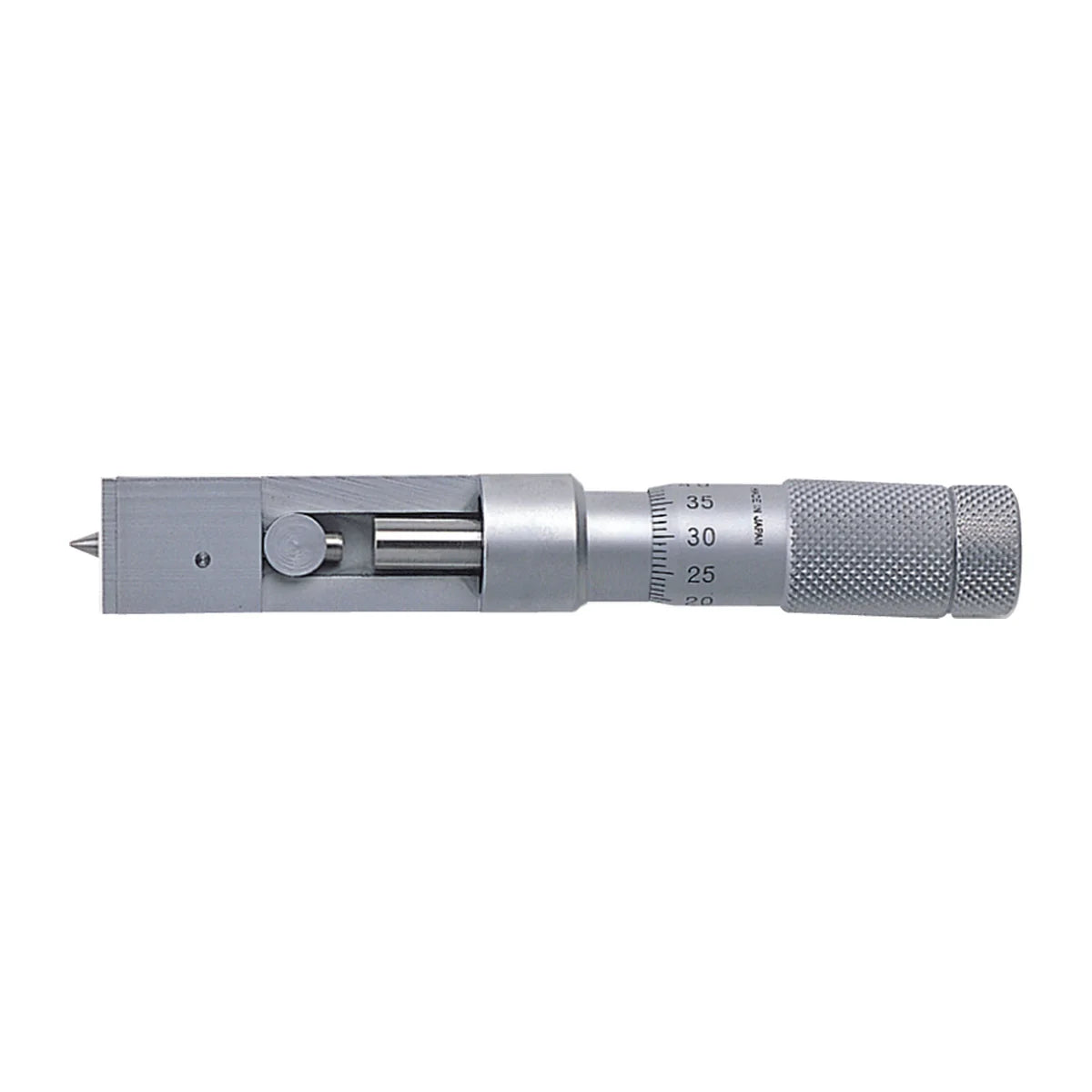

• Checking seam width, height and depth on steel cans
• Quality control on can filling and seaming lines

Features

• Measures can seam width, height and depth
• Range of 0 to 13mm, graduation of 0.01mm
• Accuracy of ±3µm
• Hardened steel measuring faces with a micro-lap finish
• 5mm diameter spindle with a 0.5mm pitch
• Weighs 65g
• Supplied with a box, spanner and hex wrench

Key specifications

Supplied with

• Can seam micrometer
• Box
• Spanner
• Hex wrench

Choosing the right option
