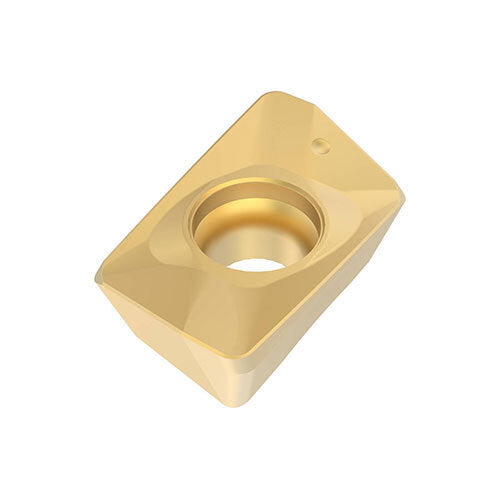

Seco 11.6 x 5.07mm F40M 14.6° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-MD13,F40M Pack of 10

Carbide PVD (MD13) Chamfer Mill Turbo 12 Milling Insert

• F40M grade, carbide PVD.
• PVD (Physical Vapour Deposition).
• PVD coated grades are recommended for applications with low feed rates where high edge toughness is required.
• PVD-coated grades are suitable for applications with low to intermediate cutting speed.

F40M Grade

• PVD-coated grade for fine to medium rough milling. First choice for milling with small feeds and/or low cutting speeds.
• Excellent for milling when there is a risk of vibrations and when coolant is used. Recommended for machining superalloys.
• (Ti, Al) N – TiN.

About Chamfer Turbo 12 2-Cutting-Edge-Single-Sided Inserts

• Available in Arbor, CombimasterTM and Seco-Capto connections.
• 30°, 45°, 60°, and 75° setting angles.
• Max. depth of cut 31 mm (1.22 inch) with the 75° milling cutter.
• XO.X12 inserts with 2 cutting edges.
• Front chamfering.

About Seco Chamfer Mills

• Seco chamfer mills offer the same free cutting action as our standard milling cutters, providing strong and reliable performance.
• With options for through-coolant and 30-degree, 45-degree, 60-degree and 75-degree setting angles.
• Our family of chamfer mills is available with Combimaster™, Arbor and Seco-Capto connections.
