Finer Power circlip External Stainless Steel
The price shown is for the pack.
Available

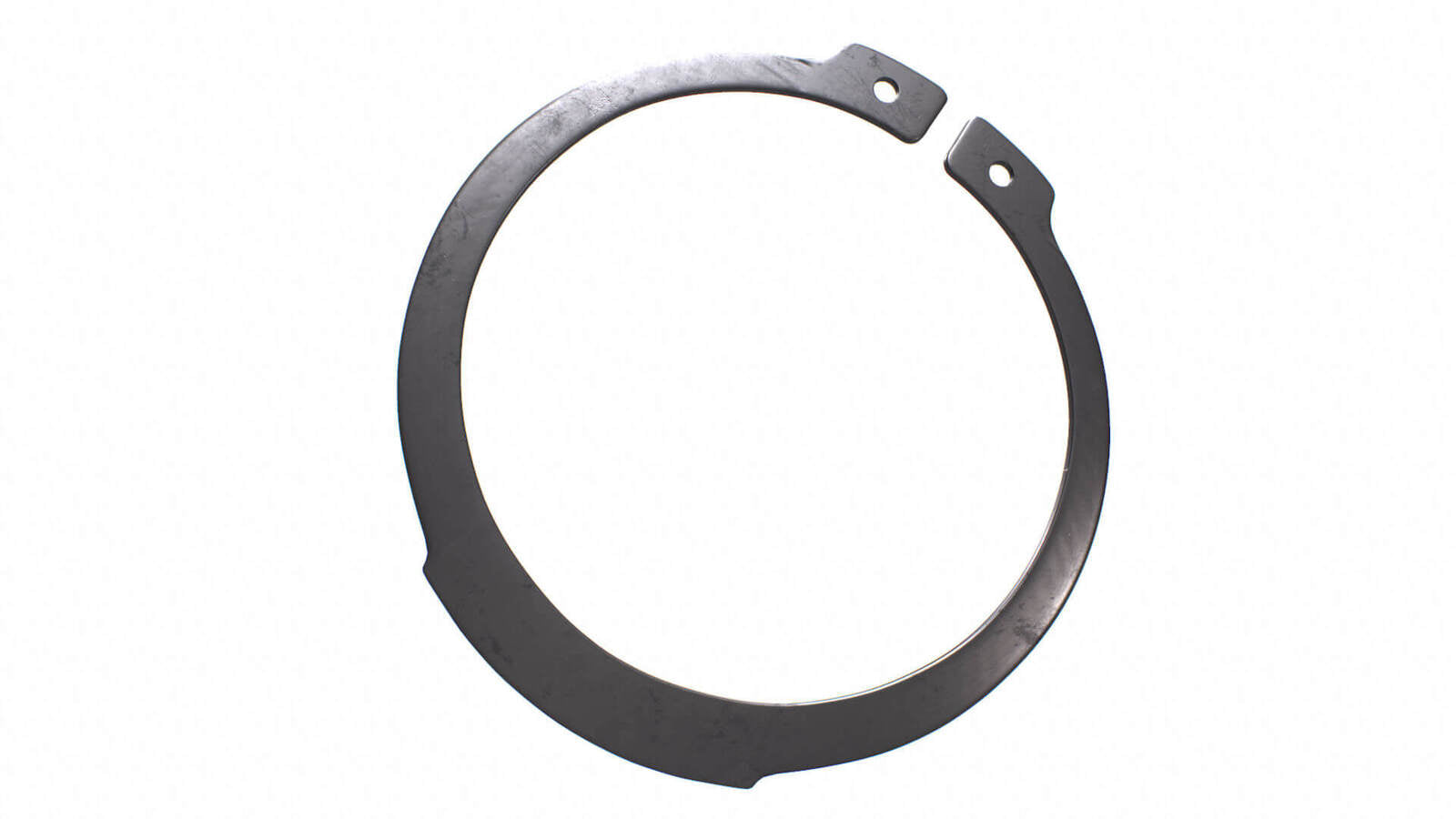

These are stainless steel external circlips for shafts, 42 sizes from 4 to 55mm shaft diameter, sold in packs of 5. An external circlip snaps into a groove machined in the shaft and holds a bearing, gear or other component against axial movement.
Where this product is used
- Retaining bearings on shafts and in housings
- Locating gears, pulleys and sleeves on a shaft
- Holding pins, rollers and spacers in place
- Maintenance and repair where a circlip is lost or damaged
Features
- Stainless steel external circlips for shafts
- 42 sizes, 4 to 55mm shaft diameter
- Packs of 5
- Groove diameter, groove width and ring thickness for every size
- Dimensions match the DIN 471 normal type circlip table
Key specifications
| Specification | Detail |
|---|---|
| Type | External circlip |
| Material | Stainless steel |
| Fits | Shaft diameter 4 to 55mm |
| Sizes | 42 models |
| Ring thickness | 0.4 to 2mm |
| Groove diameter (G) | 3.8 to 52mm |
| Supplied | Packs of 5 |
Sizes available
| Part number | Shaft dia. (mm) | Groove dia. G (mm) | Groove width W (mm) | Ring thickness t (mm) | Edge distance n min (mm) | Free dia. d (mm) | Lug hole h min (mm) |
|---|---|---|---|---|---|---|---|
| 1400-4 | 4 | 3.8 | 0.5 | 0.4 | 0.3 | 3.7 | 1 |
| 1400-5 | 5 | 4.8 | 0.7 | 0.6 | 0.3 | 4.7 | 1 |
| 1400-6 | 6 | 5.7 | 0.8 | 0.7 | 0.5 | 5.6 | 1.2 |
| 1400-7 | 7 | 6.7 | 0.9 | 0.8 | 0.5 | 6.5 | 1.2 |
| 1400-8 | 8 | 7.6 | 0.9 | 0.8 | 0.6 | 7.4 | 1.2 |
| 1400-9 | 9 | 8.6 | 1.1 | 1 | 0.6 | 8.4 | 1.2 |
| 1400-10 | 10 | 9.6 | 1.1 | 1 | 0.6 | 9.3 | 1.5 |
| 1400-11 | 11 | 10.5 | 1.1 | 1 | 0.8 | 10.2 | 1.5 |
| 1400-12 | 12 | 11.5 | 1.1 | 1 | 0.8 | 11 | 1.7 |
| 1400-13 | 13 | 12.4 | 1.1 | 1 | 0.9 | 11.9 | 1.7 |
| 1400-14 | 14 | 13.4 | 1.1 | 1 | 0.9 | 12.9 | 1.7 |
| 1400-15 | 15 | 14.3 | 1.1 | 1 | 1.1 | 13.8 | 1.7 |
| 1400-16 | 16 | 15.2 | 1.1 | 1 | 1.2 | 14.7 | 1.7 |
| 1400-17 | 17 | 16.2 | 1.1 | 1 | 1.2 | 15.7 | 1.7 |
| 1400-18 | 18 | 17 | 1.3 | 1.2 | 1.5 | 16.5 | 2 |
| 1400-19 | 19 | 18 | 1.3 | 1.2 | 1.5 | 17.5 | 2 |
| 1400-20 | 20 | 19 | 1.3 | 1.2 | 1.5 | 18.5 | 2 |
| 1400-21 | 21 | 20 | 1.3 | 1.2 | 1.5 | 19.5 | 2 |
| 1400-22 | 22 | 21 | 1.3 | 1.2 | 1.5 | 20.5 | 2 |
| 1400-23 | 23 | 22 | 1.3 | 1.2 | 1.5 | 21.5 | 2 |
| 1400-24 | 24 | 22.9 | 1.3 | 1.2 | 1.7 | 22.2 | 2 |
| 1400-25 | 25 | 23.9 | 1.3 | 1.2 | 1.7 | 23.2 | 2 |
| 1400-26 | 26 | 24.9 | 1.3 | 1.2 | 1.7 | 24.2 | 2 |
| 1400-27 | 27 | 25.6 | 1.3 | 1.2 | 2.1 | 24.9 | 2 |
| 1400-28 | 28 | 26.6 | 1.6 | 1.5 | 2.1 | 25.9 | 2 |
| 1400-29 | 29 | 27.6 | 1.6 | 1.5 | 2.1 | 26.9 | 2 |
| 1400-30 | 30 | 28.6 | 1.6 | 1.5 | 2.1 | 27.9 | 2 |
| 1400-32 | 32 | 30.3 | 1.6 | 1.5 | 2.6 | 29.6 | 2.5 |
| 1400-33 | 33 | 31.3 | 1.6 | 1.5 | 2.6 | 30.5 | 2.5 |
| 1400-35 | 35 | 33 | 1.6 | 1.5 | 3 | 32.2 | 2.5 |
| 1400-36 | 36 | 34 | 1.85 | 1.75 | 3 | 33.2 | 2.5 |
| 1400-37 | 37 | 35 | 1.85 | 1.75 | 3 | 34.2 | 2.5 |
| 1400-38 | 38 | 36 | 1.85 | 1.75 | 3 | 35.2 | 2.5 |
| 1400-40 | 40 | 37.5 | 1.85 | 1.75 | 3.8 | 36.5 | 2.5 |
| 1400-41 | 41 | 38.5 | 1.85 | 1.75 | 3.8 | 37.5 | 2.5 |
| 1400-42 | 42 | 39.5 | 1.85 | 1.75 | 3.8 | 38.5 | 2.5 |
| 1400-45 | 45 | 42.5 | 1.85 | 1.75 | 3.8 | 41.5 | 2.5 |
| 1400-47 | 47 | 44.5 | 1.85 | 1.75 | 3.8 | 43.5 | 2.5 |
| 1400-48 | 48 | 45.5 | 1.85 | 1.75 | 3.8 | 44.5 | 2.5 |
| 1400-50 | 50 | 47 | 2.15 | 2 | 4.5 | 45.8 | 2.5 |
| 1400-52 | 52 | 49 | 2.15 | 2 | 4.5 | 47.8 | 2.5 |
| 1400-55 | 55 | 52 | 2.15 | 2 | 4.5 | 50.8 | 2.5 |
Choosing the right option
Choose the circlip from the shaft diameter and machine the groove to the diameter G and width W for that size. The edge distance n (min) is the least distance between the groove and the end of the shaft, and the lug hole h (min) is the hole size for the circlip pliers.
Fit and remove with external circlip pliers, and check the circlip is fully seated in the groove.
Other circlips: Circlip External, 3 to 60mm Shaft, Packs of 5; Circlip External, 61 to 200mm Shaft; Circlip External, Heavy Duty, 12 to 100mm Shaft; Circlip Internal Stainless Steel, 10 to 55mm Bore, Packs of 5.
They have dimensions to the DIN 471 normal type table for shafts.
