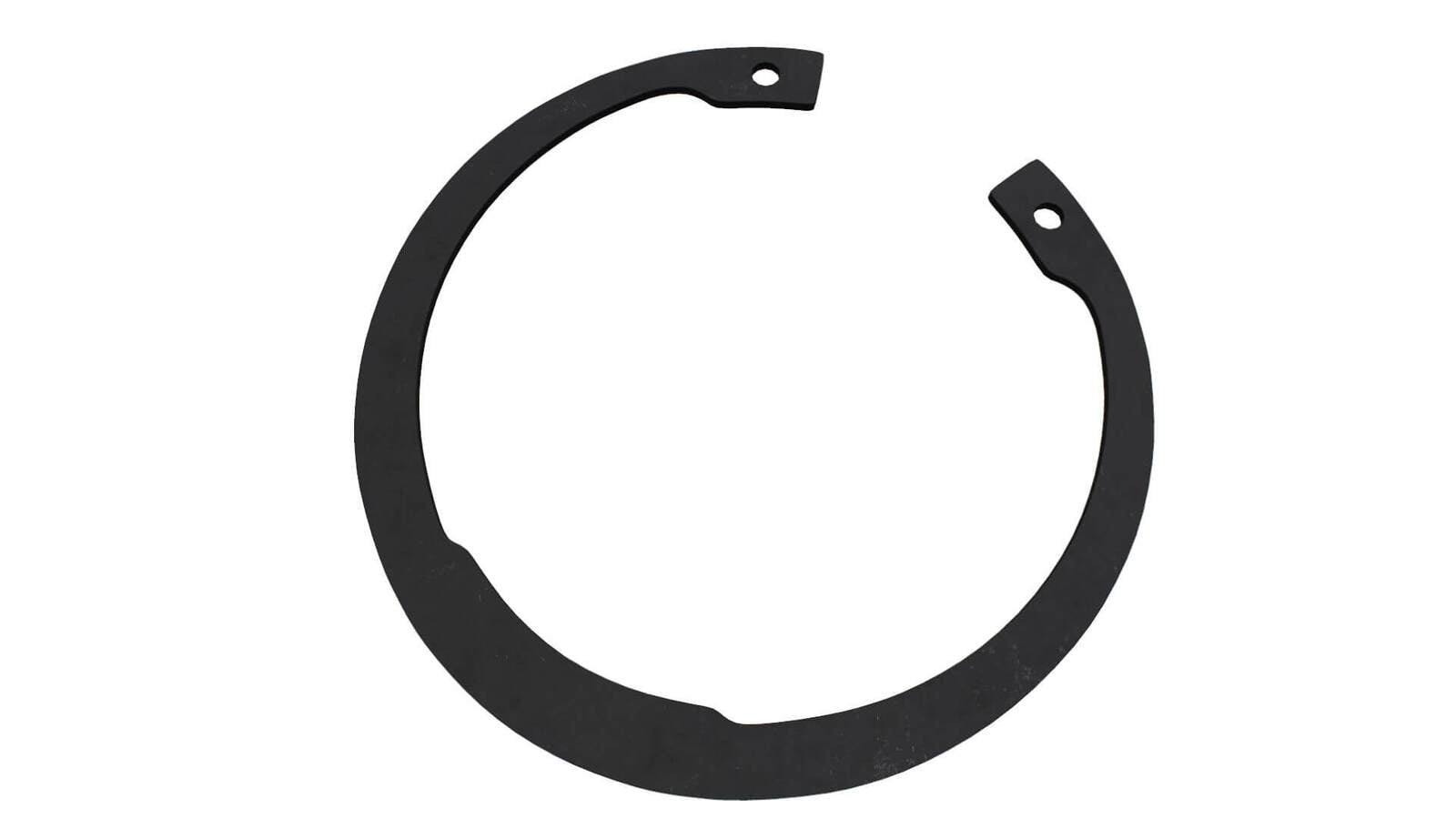

Finer Power circlip Internal, bore diameter (d) mm 8
The price shown is for the pack.
Available
These are internal circlips for bores, 51 sizes from 8 to 60mm bore diameter, sold in packs of 5. An internal circlip snaps into a groove machined in the bore and holds a bearing, gear or other component against axial movement.
Where this product is used
- Retaining bearings on shafts and in housings
- Locating gears, pulleys and sleeves on a shaft
- Holding pins, rollers and spacers in place
- Maintenance and repair where a circlip is lost or damaged
Features
- Internal circlips for bores
- 51 sizes, 8 to 60mm bore diameter
- Packs of 5
- Groove diameter, groove width and ring thickness for every size
- Dimensions match the DIN 472 normal type circlip table
Key specifications
| Specification | Detail |
|---|---|
| Type | Internal circlip |
| Fits | Bore diameter 8 to 60mm |
| Sizes | 51 models |
| Ring thickness | 0.8 to 2mm |
| Groove diameter (G) | 8.4 to 63mm |
| Supplied | Packs of 5 |
Sizes available
| Part number | Bore dia. (mm) | Groove dia. G (mm) | Groove width W (mm) | Ring thickness t (mm) | Edge distance n min (mm) | Free dia. d (mm) | Lug hole h min (mm) |
|---|---|---|---|---|---|---|---|
| 1300-8 | 8 | 8.4 | 0.9 | 0.8 | 0.6 | 8.7 | 1 |
| 1300-9 | 9 | 9.4 | 0.9 | 0.8 | 0.6 | 9.8 | 1 |
| 1300-10 | 10 | 10.4 | 1.1 | 1 | 0.6 | 10.8 | 1.2 |
| 1300-11 | 11 | 11.4 | 1.1 | 1 | 0.6 | 11.8 | 1.2 |
| 1300-12 | 12 | 12.5 | 1.1 | 1 | 0.8 | 13 | 1.5 |
| 1300-13 | 13 | 13.6 | 1.1 | 1 | 0.9 | 14.1 | 1.5 |
| 1300-14 | 14 | 14.6 | 1.1 | 1 | 0.9 | 15.1 | 1.7 |
| 1300-15 | 15 | 15.7 | 1.1 | 1 | 1.1 | 16.2 | 1.7 |
| 1300-16 | 16 | 16.8 | 1.1 | 1 | 1.2 | 17.3 | 1.7 |
| 1300-17 | 17 | 17.8 | 1.1 | 1 | 1.2 | 18.3 | 1.7 |
| 1300-18 | 18 | 19 | 1.1 | 1 | 1.5 | 19.5 | 2 |
| 1300-19 | 19 | 20 | 1.1 | 1 | 1.5 | 20.5 | 2 |
| 1300-20 | 20 | 21 | 1.1 | 1 | 1.5 | 21.5 | 2 |
| 1300-21 | 21 | 22 | 1.1 | 1 | 1.5 | 22.5 | 2 |
| 1300-22 | 22 | 23 | 1.1 | 1 | 1.5 | 23.5 | 2 |
| 1300-23 | 23 | 24.1 | 1.3 | 1.2 | 1.7 | 24.6 | 2 |
| 1300-24 | 24 | 25.2 | 1.3 | 1.2 | 1.8 | 25.9 | 2 |
| 1300-25 | 25 | 26.2 | 1.3 | 1.2 | 1.8 | 26.9 | 2 |
| 1300-26 | 26 | 27.2 | 1.3 | 1.2 | 1.8 | 27.9 | 2 |
| 1300-27 | 27 | 28.4 | 1.3 | 1.2 | 2.1 | 29.1 | 2 |
| 1300-28 | 28 | 29.4 | 1.3 | 1.2 | 2.1 | 30.1 | 2 |
| 1300-29 | 29 | 30.4 | 1.3 | 1.2 | 2.1 | 31.1 | 2 |
| 1300-30 | 30 | 31.4 | 1.3 | 1.2 | 2.1 | 32.1 | 2 |
| 1300-31 | 31 | 32.7 | 1.3 | 1.2 | 2.6 | 33.4 | 2.5 |
| 1300-32 | 32 | 33.7 | 1.3 | 1.2 | 2.6 | 34.4 | 2.5 |
| 1300-33 | 33 | 34.7 | 1.3 | 1.2 | 2.6 | 35.5 | 2.5 |
| 1300-34 | 34 | 35.7 | 1.6 | 1.5 | 2.6 | 36.5 | 2.5 |
| 1300-35 | 35 | 37 | 1.6 | 1.5 | 3 | 37.8 | 2.5 |
| 1300-36 | 36 | 38 | 1.6 | 1.5 | 3 | 38.8 | 2.5 |
| 1300-37 | 37 | 39 | 1.6 | 1.5 | 3 | 39.8 | 2.5 |
| 1300-38 | 38 | 40 | 1.6 | 1.5 | 3 | 40.8 | 2.5 |
| 1300-39 | 39 | 41 | 1.6 | 1.5 | 3 | 42 | 2.5 |
| 1300-40 | 40 | 42.5 | 1.85 | 1.75 | 3.8 | 43.5 | 2.5 |
| 1300-41 | 41 | 43.5 | 1.85 | 1.75 | 3.8 | 44.5 | 2.5 |
| 1300-42 | 42 | 44.5 | 1.85 | 1.75 | 3.8 | 45.5 | 2.5 |
| 1300-43 | 43 | 45.5 | 1.85 | 1.75 | 3.8 | 46.5 | 2.5 |
| 1300-44 | 44 | 46.5 | 1.85 | 1.75 | 3.8 | 47.5 | 2.5 |
| 1300-45 | 45 | 47.5 | 1.85 | 1.75 | 3.8 | 48.5 | 2.5 |
| 1300-46 | 46 | 48.5 | 1.85 | 1.75 | 3.8 | 49.5 | 2.5 |
| 1300-47 | 47 | 49.5 | 1.85 | 1.75 | 3.8 | 50.5 | 2.5 |
| 1300-48 | 48 | 50.5 | 1.85 | 1.75 | 3.8 | 51.5 | 2.5 |
| 1300-50 | 50 | 53 | 2.15 | 2 | 4.5 | 54.2 | 2.5 |
| 1300-51 | 51 | 54 | 2.15 | 2 | 4.5 | 55.2 | 2.5 |
| 1300-52 | 52 | 55 | 2.15 | 2 | 4.5 | 56.2 | 2.5 |
| 1300-53 | 53 | 56 | 2.15 | 2 | 4.5 | 57.2 | 2.5 |
| 1300-54 | 54 | 57 | 2.15 | 2 | 4.5 | 58.2 | 2.5 |
| 1300-55 | 55 | 58 | 2.15 | 2 | 4.5 | 59.2 | 2.5 |
| 1300-56 | 56 | 59 | 2.15 | 2 | 4.5 | 60.2 | 2.5 |
| 1300-57 | 57 | 60 | 2.15 | 2 | 4.5 | 61.2 | 2.5 |
| 1300-58 | 58 | 61 | 2.15 | 2 | 4.5 | 62.2 | 2.5 |
| 1300-60 | 60 | 63 | 2.15 | 2 | 4.5 | 64.2 | 2.5 |
Choosing the right option
Choose the circlip from the bore diameter and machine the groove to the diameter G and width W for that size. The edge distance n (min) is the least distance between the groove and the face of the housing, and the lug hole h (min) is the hole size for the circlip pliers.
Fit and remove with internal circlip pliers, and check the circlip is fully seated in the groove.
Other circlips: Circlip Internal, 61 to 200mm Bore; Circlip Internal Stainless Steel, 10 to 55mm Bore, Packs of 5; Circlip External, 3 to 60mm Shaft, Packs of 5; Circlip External, 61 to 200mm Shaft.
They have dimensions to the DIN 472 normal type table for bores.
