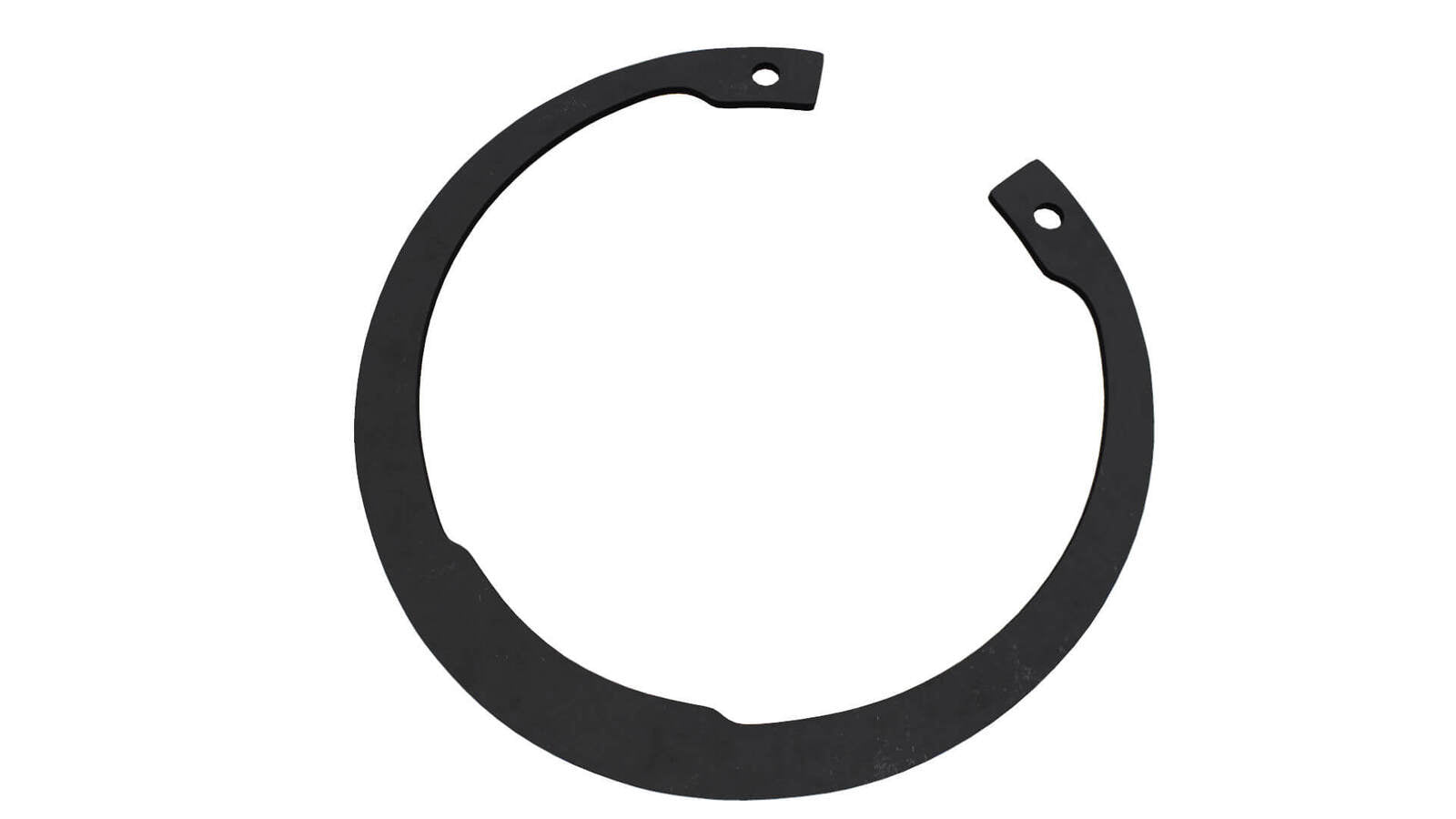

Circlip Internal 61 mm Bore, 1300-61
Available
Internal circlips for bores, 53 sizes from 61 to 200 mm bore diameter, sold individually. An internal circlip snaps into a groove machined in the bore and holds a bearing, gear or other component against axial movement.
Groove diameter, groove width, ring thickness and the ring dimensions are listed for every part number, with the dimensions the catalogue gives for fitting the circlip with internal circlip pliers.
Where this product is used
- Retaining bearings on shafts and in housings
- Locating gears, pulleys and sleeves on a shaft
- Holding pins, rollers and spacers in place
- Maintenance and repair where a circlip is lost or damaged
Features
- Internal circlips for bores
- 53 sizes, 61 to 200 mm bore diameter
- Sold individually
- Groove diameter, groove width and ring thickness listed for every size
- Dimensions match the DIN 472 normal type circlip table
Key specifications
| Specification | Detail |
|---|---|
| Type | internal circlip |
| Fits | bore diameter 61 to 200 mm |
| Sizes | 53 models |
| Ring thickness | 2 to 4 mm |
| Groove diameter (G) | 64 to 205 mm |
| Supplied | individually |
Sizes available
View all 53 models
| Part number | Bore dia. (mm) | Groove dia. G (mm) | Groove width W (mm) | Ring thickness t (mm) | Edge distance n min (mm) | Free dia. d (mm) | Lug hole h min (mm) |
|---|---|---|---|---|---|---|---|
| 1300-61 | 61 | 64 | 2.15 | 2 | 4.5 | 65.2 | 2.5 |
| 1300-62 | 62 | 65 | 2.15 | 2 | 4.5 | 66.2 | 2.5 |
| 1300-63 | 63 | 66 | 2.15 | 2 | 4.5 | 67.2 | 2.5 |
| 1300-64 | 64 | 67 | 2.15 | 2 | 4.5 | 68.2 | 2.5 |
| 1300-65 | 65 | 68 | 2.65 | 2.5 | 4.5 | 69.2 | 3 |
| 1300-67 | 67 | 70 | 2.65 | 2.5 | 4.5 | 71.5 | 3 |
| 1300-68 | 68 | 71 | 2.65 | 2.5 | 4.5 | 72.5 | 3 |
| 1300-70 | 70 | 73 | 2.65 | 2.5 | 4.5 | 74.5 | 3 |
| 1300-72 | 72 | 75 | 2.65 | 2.5 | 4.5 | 76.5 | 3 |
| 1300-75 | 75 | 78 | 2.65 | 2.5 | 4.5 | 79.5 | 3 |
| 1300-77 | 77 | 80 | 2.65 | 2.5 | 4.5 | 82.5 | 3 |
| 1300-78 | 78 | 81 | 2.65 | 2.5 | 4.5 | 82.5 | 3 |
| 1300-80 | 80 | 83.5 | 2.65 | 2.5 | 5.3 | 85.5 | 3 |
| 1300-81 | 81 | 84.5 | 2.65 | 2.5 | 5.3 | 86.5 | 3 |
| 1300-82 | 82 | 85.5 | 2.65 | 2.5 | 5.3 | 87.5 | 3 |
| 1300-83 | 83 | 86.5 | 2.65 | 2.5 | 5.3 | 88.5 | 3 |
| 1300-85 | 85 | 88.5 | 3.15 | 3 | 5.3 | 90.5 | 3.5 |
| 1300-87 | 87 | 90.5 | 3.15 | 3 | 5.3 | 93.5 | 3.5 |
| 1300-88 | 88 | 91.5 | 3.15 | 3 | 5.3 | 93.5 | 3.5 |
| 1300-90 | 90 | 93.5 | 3.15 | 3 | 5.3 | 95.5 | 3.5 |
| 1300-92 | 92 | 95.5 | 3.15 | 3 | 5.3 | 97.5 | 3.5 |
| 1300-95 | 95 | 98.5 | 3.15 | 3 | 5.3 | 100.5 | 3.5 |
| 1300-97 | 97 | 100.5 | 3.15 | 3 | 5.3 | 103.5 | 3.5 |
| 1300-98 | 98 | 101.5 | 3.15 | 3 | 5.3 | 103.5 | 3.5 |
| 1300-100 | 100 | 103.5 | 3.15 | 3 | 5.3 | 105.5 | 3.5 |
| 1300-102 | 102 | 106 | 4.15 | 4 | 6 | 108 | 3.5 |
| 1300-105 | 105 | 109 | 4.15 | 4 | 6 | 112 | 3.5 |
| 1300-107 | 107 | 111 | 4.15 | 4 | 6 | 115 | 3.5 |
| 1300-108 | 108 | 112 | 4.15 | 4 | 6 | 115 | 3.5 |
| 1300-110 | 110 | 114 | 4.15 | 4 | 6 | 117 | 3.5 |
| 1300-112 | 112 | 116 | 4.15 | 4 | 6 | 119 | 3.5 |
| 1300-115 | 115 | 119 | 4.15 | 4 | 6 | 122 | 3.5 |
| 1300-117 | 117 | 121 | 4.15 | 4 | 6 | 125 | 3.5 |
| 1300-118 | 118 | 122 | 4.15 | 4 | 6 | 125 | 3.5 |
| 1300-120 | 120 | 124 | 4.15 | 4 | 6 | 127 | 3.5 |
| 1300-125 | 125 | 129 | 4.15 | 4 | 6 | 132 | 4 |
| 1300-127 | 127 | 131 | 4.15 | 4 | 6 | 135 | 4 |
| 1300-128 | 128 | 132 | 4.15 | 4 | 6 | 135 | 4 |
| 1300-130 | 130 | 134 | 4.15 | 4 | 6 | 137 | 4 |
| 1300-135 | 135 | 139 | 4.15 | 4 | 6 | 142 | 4 |
| 1300-140 | 140 | 144 | 4.15 | 4 | 6 | 147 | 4 |
| 1300-145 | 145 | 149 | 4.15 | 4 | 6 | 152 | 4 |
| 1300-150 | 150 | 155 | 4.15 | 4 | 7.5 | 158 | 4 |
| 1300-155 | 155 | 160 | 4.15 | 4 | 7.5 | 164 | 4 |
| 1300-160 | 160 | 165 | 4.15 | 4 | 7.5 | 169 | 4 |
| 1300-165 | 165 | 170 | 4.15 | 4 | 7.5 | 174.5 | 4 |
| 1300-170 | 170 | 175 | 4.15 | 4 | 7.5 | 179.5 | 4 |
| 1300-175 | 175 | 180 | 4.15 | 4 | 7.5 | 184.5 | 4 |
| 1300-180 | 180 | 185 | 4.15 | 4 | 7.5 | 189.5 | 4 |
| 1300-185 | 185 | 190 | 4.15 | 4 | 7.5 | 194.5 | 4 |
| 1300-190 | 190 | 195 | 4.15 | 4 | 7.5 | 199.5 | 4 |
| 1300-195 | 195 | 200 | 4.15 | 4 | 7.5 | 204.5 | 4 |
| 1300-200 | 200 | 205 | 4.15 | 4 | 7.5 | 209.5 | 4 |
Selecting and fitting
Choose the circlip from the bore diameter and machine the groove to the diameter G and width W listed for that size. The edge distance n (min) is the least distance between the groove and the face of the housing, and the lug hole h (min) is the hole size for the circlip pliers.
Fit and remove with internal circlip pliers, and check the circlip is fully seated in the groove.
Other circlips: Circlip Internal, 8 to 60 mm Bore, Packs of 5; Circlip Internal Stainless Steel, 10 to 55 mm Bore, Packs of 5; Circlip External, 3 to 60 mm Shaft, Packs of 5; Circlip External, 61 to 200 mm Shaft.
The catalogue lists these dimensions to the DIN 472 normal type table for bores.
Dimensions are as listed in the manufacturer catalogue and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
