ClayTech CLA AQUATRON2P CONTROLLER Aquatron2P Electronic Pump Controller, 10 Bar

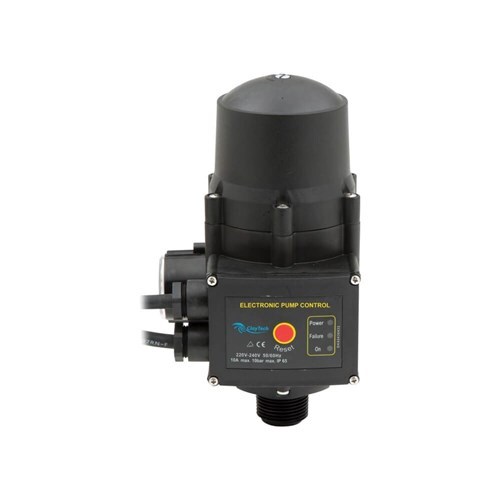

The ClayTech Aquatron2P is an electronic pump controller that switches a household pressure pump on when a tap is opened and off about 10 seconds after it is closed. It is rated at 240 V, 50 Hz with a maximum current of 10 A and a maximum power of 1.1 kW (manufacturer-stated).

It protects the pump from running dry by stopping it when there is no flow, and the FAILURE LED on the front of the controller shows that alarm. It aims to keep flow and pressure constant. When a rainwater tank is empty the controller restarts the pump every 24 hours to test for rainwater (manufacturer-stated).

The starting pressure setting is 1.8 bar, the maximum working pressure is 10 bar, the connection is a 1 inch male thread and the protection rating is IP65. The flow range is 1.5 to 80 L/min and the maximum working temperature is 35 degrees C (manufacturer-stated).

Where this product is used

• Automatic start and stop of a household pressure pump with the taps. (manufacturer-stated)
• Dry-run protection for a pump drawing from a rainwater tank. (manufacturer-stated)

Features

• Starts the pump when a tap opens and stops it about 10 seconds after the tap closes (manufacturer-stated)
• Dry-run protection with a FAILURE LED (manufacturer-stated)
• 24-hour automatic restart to test for rainwater (manufacturer-stated)
• Maximum working pressure 10 bar (manufacturer-stated)
• IP65 protection (manufacturer-stated)

Key specifications

Selecting the right option

The Aquatron controller works with a pump that is within its 10 A and 1.1 kW limits. It is already included with the INOX A Series multi-stage pumps with controller and the BlueDiver C30A and C40A pumps with Aquatron controller. For a pump with a controller built in see the Divertron C6 and C7 submersible pressure pumps.
