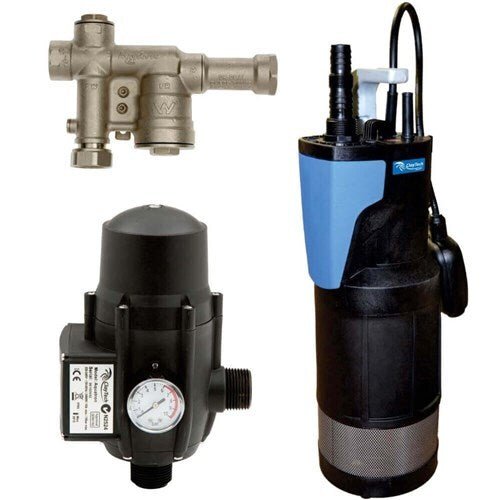

ClayTech Pumps BlueDiver pump with AcquaSaver valve

The ClayTech CMS C30A is a BlueDiver C30 submersible pump supplied with an AcquaSaver rainwater-to-mains diversion valve. The pump is rated at 650W (P2) with a maximum flow of 95 L/min and a maximum head of 36 m, and it is made for household pressurised water supply and rainwater re-use. The kit comes with a 1 inch valve (C30A1) or a 3/4 inch valve (C30A2).

The AcquaSaver is a hydraulically operated, solid brass water diversion valve with built-in dual check valves. It prioritises rainwater, switches to mains water if the tank runs low or the power fails, and switches back when rainwater is replenished or power is restored. It has no electrical consumption or electronic components, needs no regular maintenance and can be mounted in any position. The BlueDiver C30 pump has a 1-1/4" BSPF outlet with a multi-size hose tail, a 15 m H07RN-F power cable and IPX8 protection.

Where this product is used

• Rainwater re-use with automatic switching to mains water
• Household pressurised water supply from a tank

Features

• BlueDiver C30 pump with a float, 36 m maximum head, 95 L/min
• Hydraulically operated AcquaSaver valve in solid brass with dual check valves
• Switches to mains water if the tank runs low or power fails
• 1 inch or 3/4 inch AcquaSaver

Key specifications

Choosing the right option

Choose the AcquaSaver size to match your pipework: 1 inch for C30A1 or 3/4 inch for C30A2. The pump is the same in both. If you do not need the valve, the pump alone is in the BlueDiver C30 and C40 submersible pumps; with an Aquatron controller see the BlueDiver C30A and C40A pumps with Aquatron controller.
