ClayTech CLA CMS C7A1 Divertron C7 Pressure Pump with 1 inch AcquaSaver Valve
Available

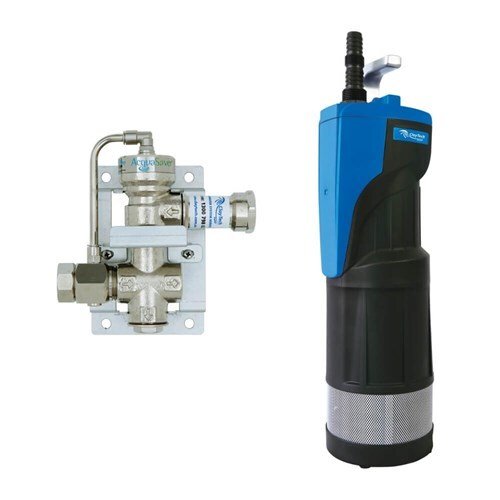

The ClayTech CMS C7A1 is a Divertron C7 in-tank submersible pressure pump supplied with a 1 inch AcquaSaver rainwater-to-mains diversion valve. The pump is rated at 750 W (P2) with a 46 m maximum head, a 4.6 bar maximum pressure and 95 L/min maximum flow (manufacturer-stated).
The system uses rainwater when it is available, automatically uses mains water when there is no rainwater, and automatically returns to rainwater when it rains. The Divertron has an integrated electronic pump controller with automatic on/off and dry-run protection, an integrated check valve, an intake filter and a handle, and an installation rope is included (manufacturer-stated). The AcquaSaver is a hydraulically operated, solid brass water diversion valve with built-in dual check valves. It prioritises rainwater, switches to mains water if the tank runs low or the power fails, and switches back when rainwater is replenished or power is restored (manufacturer-stated). It has no electrical consumption or electronic components, needs no regular maintenance and can be mounted in any position (manufacturer-stated).
Where this product is used
- Rainwater use with automatic switching to mains water. (manufacturer-stated)
- Pressurised supply from an above-ground or below-ground tank. (manufacturer-stated)
Features
- Divertron C7 pump with integrated controller and dry-run protection (manufacturer-stated)
- 1 inch AcquaSaver: hydraulically operated, solid brass, dual check valves (manufacturer-stated)
- Uses rainwater when available and mains water when it is not (manufacturer-stated)
- Handle and installation rope included (manufacturer-stated)

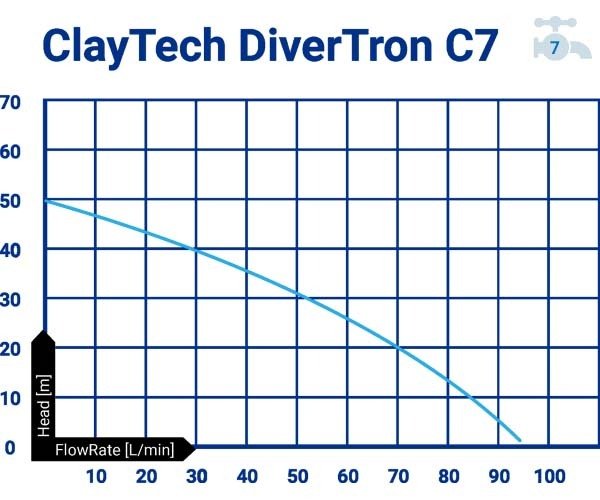

Key specifications
| Specification | Detail |
|---|---|
| Pump power (P2) | 750 W (manufacturer-stated) |
| Pump supply | 220-240 V AC, 50 Hz (manufacturer-stated) |
| Pump rated current | 4.8 A (manufacturer-stated) |
| Maximum flow | 95 L/min (manufacturer-stated) |
| Maximum head | 46 m (manufacturer-stated) |
| Maximum pressure | 4.6 bar (manufacturer-stated) |
| Switch-on pressure | 2.6 bar, plus or minus 0.2 bar (manufacturer-stated) |
| Maximum immersion depth | 12 m (manufacturer-stated) |
| Pump dimensions (L x W x H) | 155 x 150 x 525 mm (manufacturer-stated) |
| Power cable | 15 m H07RN-F (manufacturer-stated) |
| Pump protection class | IP68 (manufacturer-stated) |
| Pump weight | 10.8 kg net, 12.8 kg gross (manufacturer-stated) |
| AcquaSaver ports | 1 inch BSP F (25 mm) (manufacturer-stated) |
Selecting the right option
The C7A1 has the 750 W C7 pump. For the 650 W C6 pump with a choice of 1 inch or 3/4 inch AcquaSaver see the CMS C6A Divertron C6 pump and AcquaSaver kits; the Divertron pumps without a valve are in the Divertron C6 and C7 submersible pressure pumps.
Related products
Related ClayTech pumps: Divertron C6 and C7 submersible pressure pumps, CMS C6A Divertron C6 pump and AcquaSaver kits, CMS C5A2 C5 pressure pump and AcquaSaver and CMS C30A BlueDiver pump and AcquaSaver kits.
