INOX 316 collared eye bolts, M6

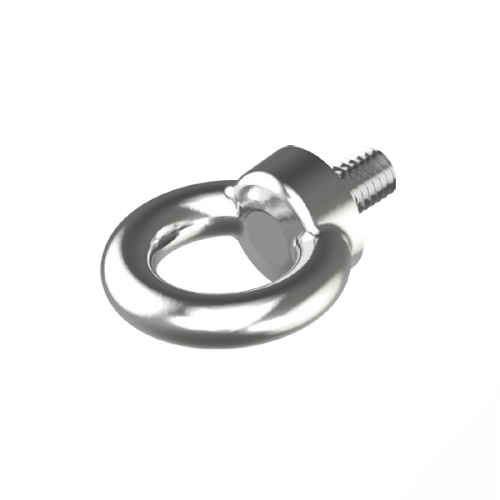

INOX Collared Eye Bolt - 316 Stainless Steel is a lifting eye bolt. Made in 316 (A4) stainless steel, the Collared Eye Bolt is a threaded bolt with a closed eye and a collar under the eye. The collar seats against the surface.

You can choose from 7 variants, covering sizes M6 to M24. Variants are supplied in packs of 2 to 10, depending on size. The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10mm thread.

Where this product is used

• Light fixings that need an eye
• Rope, wire and cable attachment points
• Swimming pool and spa equipment
• Small sizes for enclosures, instruments and light fittings
• Larger sizes for frames, plant and structural fixings
• Marine and rigging fittings

Features

• Threaded shank screws into a tapped hole or takes a nut
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Range covers M6 to M24 in 7 variants
• Closed eye for rope, wire or shackles
• Supplied in packs of 2 to 10
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment

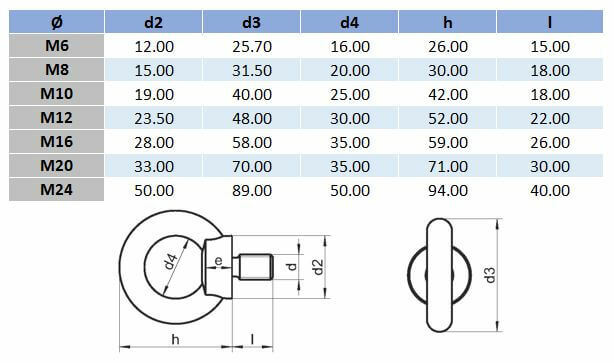

Key specifications

Choosing the right option

Choose the size by the thread and length shown on the variant. Eye bolts are rated for a straight pull in line with the shank, and the rating drops sharply for angled loads. For lifting, use a rated lifting product and a qualified rigger.

Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
